Ring Rolling Machine

Model:D53K
Brand:Anyang Forging Press
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:Ring Rolling Machine , Rolling Machine , Rolling Ring
Price: US $10000 / set
Min. Order:1 set
Inquire Now

Member Information

Detail

Product Description

Introduction of Ring rolling machine:

Ring rolling machines are precisely adapted to meet the customer's requirements and rolls both profiled and rectangular rings with a high degree of precision as well as cost-effectively.The machine concept is particularly maintenance and user-friendly.

Ring rolling machines are suitable for producing rings for the following applications: Flanges, Bearings, Gears, Wheels, Sleeves, Rings in the automobile, aerospace, oil & gas industry etc.

Advantages of Ring Rolling Machine:

1. High material utilization

2. Good quality

3. Good working conditions, high productivity

4. Low production costs

D53K series Ring Rolling Machine's parameter:

Item Unit D53K- D53K-1600 D53K-2000 D53K-3000 D53K-3500 D53K-4000 D53K-5000
800
Dimension OD mm 350-800 400-1600 500-2000 500-3000 500-3500 500-4000 500-5000
of Ring
  Height mm 60-300 60-300 80-500 80-500 80-500 80-700 80-750
Parameter Radial Rolling KN 1250 1250 2000 2000 2000 2000 2500
of Machine  Force
  Axial Rolled KN 1000 1000 1250 1250 1600 1600 2000
   Force
  Linear Velocity M/s 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6
   of Rolling
Driving Radial KW 280 280 500 500 560 630 630
power Axial KW 2×160 2×160 2×220 2×220 2×280 2×315 2×315
Overall  Length mm 10000 11000 14500 15200 16000 18500 20000
Dimensions Width mm 2500 2500 3500 3500 3500 4500 5500
  Height mm 3150 3300 4300 4300 4400 4400 5000

Product Image

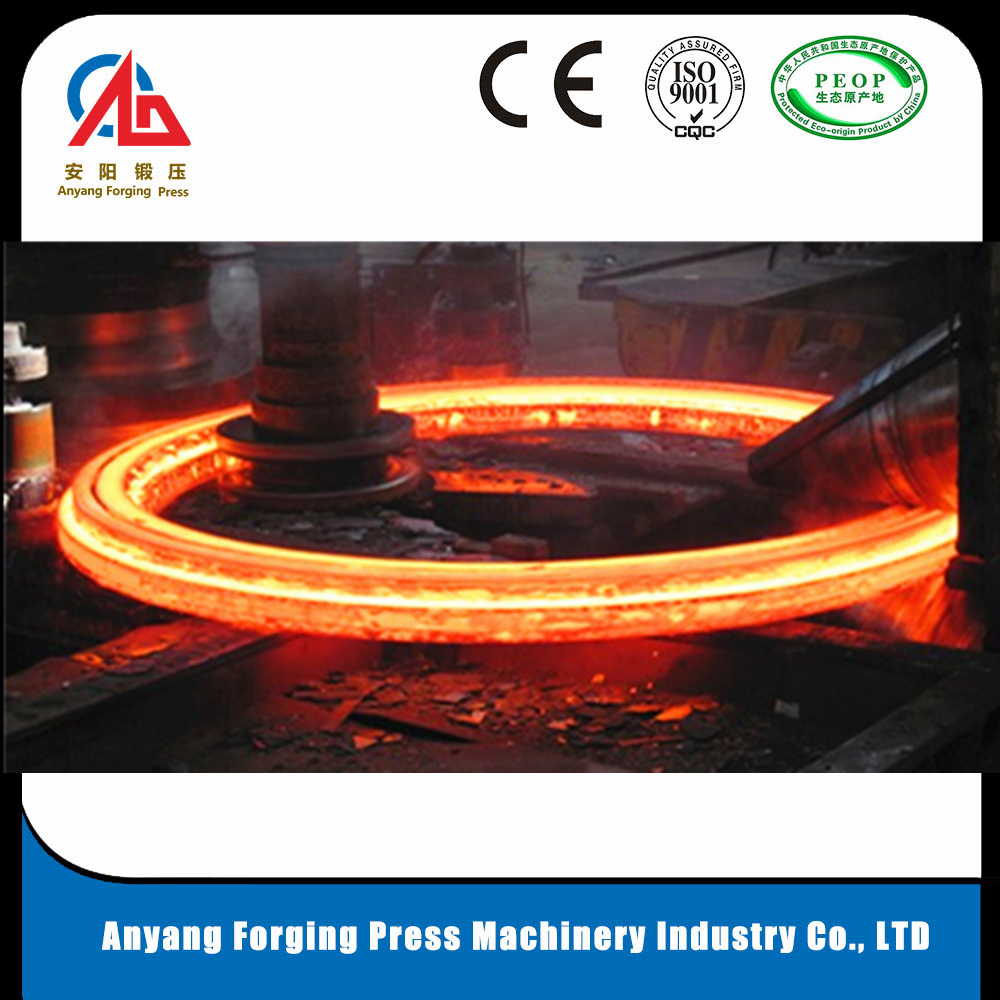

Ring Rolling Machine 1
Img 1

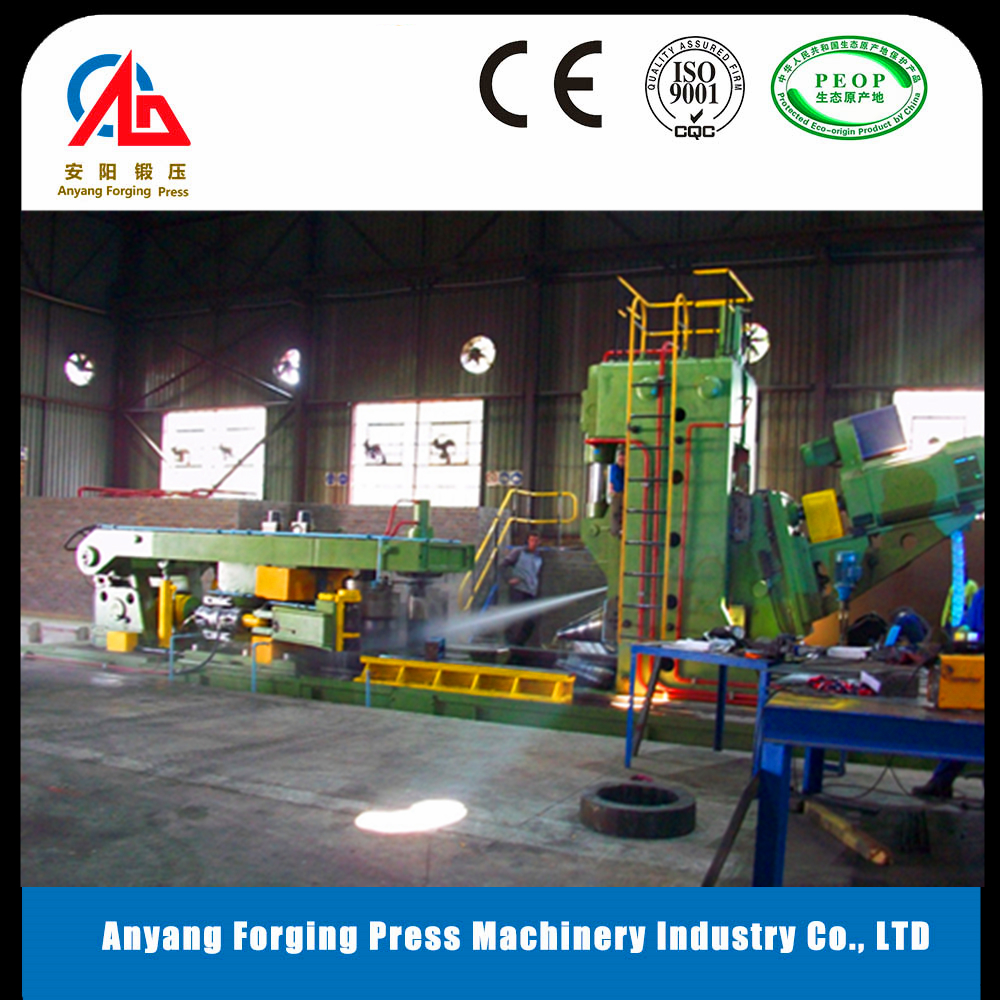

Ring Rolling Machine 2
Img 2
Ring Rolling Machine 3
Img 3
Ring Rolling Machine 4
Img 4
