Smartgen HAT700 Series ATS Controller

Model:HAT700
Brand:Smartgen
Origin:Made In China
Category:Industrial Supplies / Machinery / Power & Generating Sets
Label:Smartgen AVR , HAT700 , Generator Controlle
Price: US $260 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Smartgen HAT700 Series ATS Controller



DESCRIPTION

HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.





The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase) measuring and make accurate judgment; in addition, the corresponding digital output port will active when there is over/under voltage, over/under frequency, loss of phase and other abnormal condition occurs. This controller has full consideration in various application of ATS (automatic transfer system) and can be directly used for PC ATS, CB ATS, CC ATS etc. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical devices, automatic control and testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.

PERFORMANCE AND CHARACTERISTICS

System type can set as: S1 (Mains) & S2 (Mains), S1 (Mains) & S2 (Generator), S1 (Generator) & S2 (Mains), S1 (Generator) & S2 (Generator).

◆132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages), push-button operation.

◆Collect and display 2-way 3-phase Voltage, Frequency and Phase.

◆Collect and display Active Power, Reactive Power, Apparent Power, Power Factor and Current.

◆S1/S2 separated over current warning/ trip alarm.

◆NEL (Non-essential Load) trip function.

◆Display S1/S2 Total kW Energy, Total kVar Energy, Total Close Times.

◆Display continuous power supply time and S1/S2 total power supply time.

◆Sync Transfer function; in addition, Voltage Difference, Frequency Difference and Phase Difference can be displayed.

◆For Stored-Energy type ATS, its close relay will active after the PF Input is active.

◆Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection.

◆Phase Sequence Transfer function;

◆Automatic/Manual mode. In manual mode, can force the switch to close or open;

◆All parameters can be set on site. Passwords authentication ensures authorized staff operation only.

◆The genset can be Manual Test on site to achieve start/stop operation.

◆ATS Controller has function of automatic Re-closing.

◆Applicable for PC Three-stage, PC Two-stage, CB and CC switch.

◆Applicable for 2 isolated neutral line.

◆Real-time clock (RTC); Event log Function (Event log can record 99 items circularly).

◆Scheduled Run & Scheduled Not Run (can be set as start genset once a day/week/month whether with load or not).

◆Can control two generators to work as Cycle Run mode, Master Run mode and Balance Run mode.

◆Widely power supply range DC(8~35)V allows the controller can bear 80V instantaneous current.

◆Large terminal space allows the controller can bear maximum 625V input voltage.

◆With RS485 isolated communication interface. With "remote controlling, remote measuring, remote communication, remote regulating" function by the ModBus communication protocol. Can remote start/stop the genset and remote control the ATS to close or open.

◆Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase 2-wire, and 2-phase 3-wire).

◆Modular design, self extinguishing ABS plastic shell, pl able terminal, built-in mounting,compact structure with easy installation.


Price Terms:EXW Shenzhen
Payment Terms:TT/LC/Western Union/Paypal
Packing:EXPORT CARTON
Lead Time:2days

Product Image

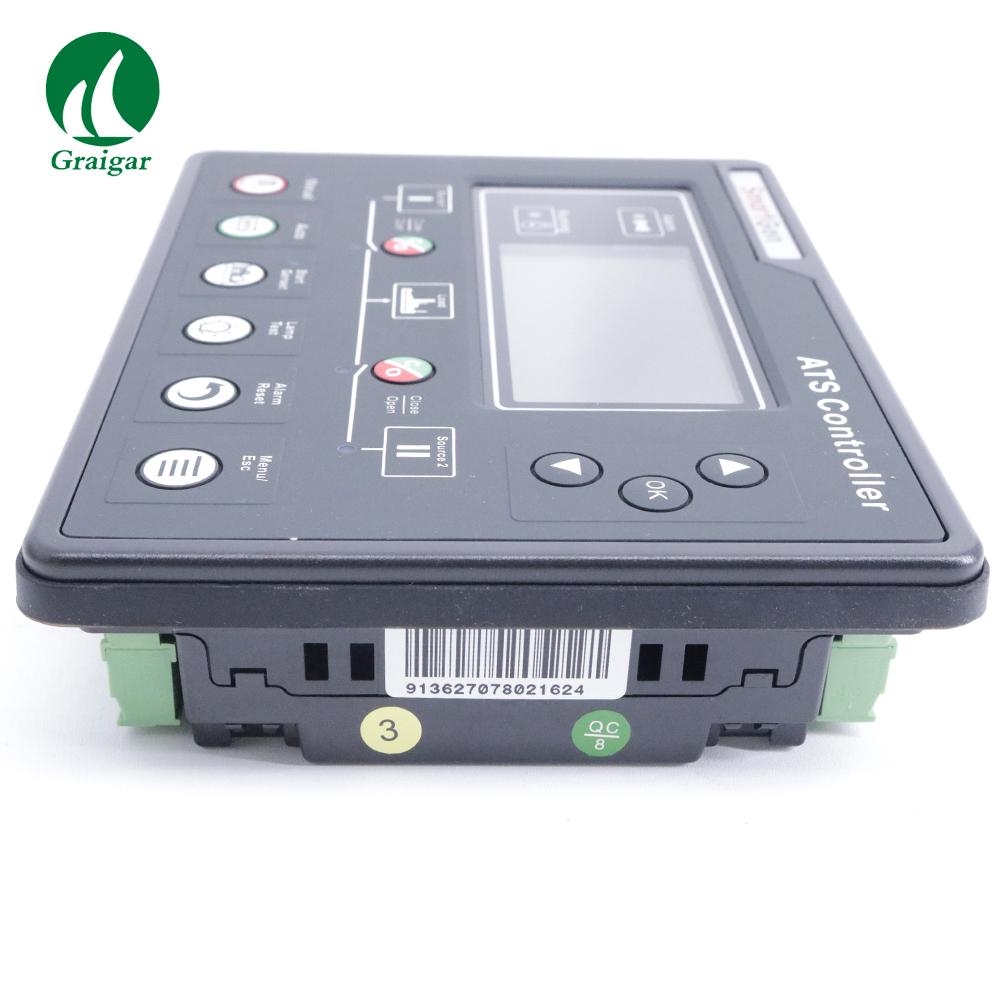

Smartgen HAT700 Series ATS Controller 1
Img 1

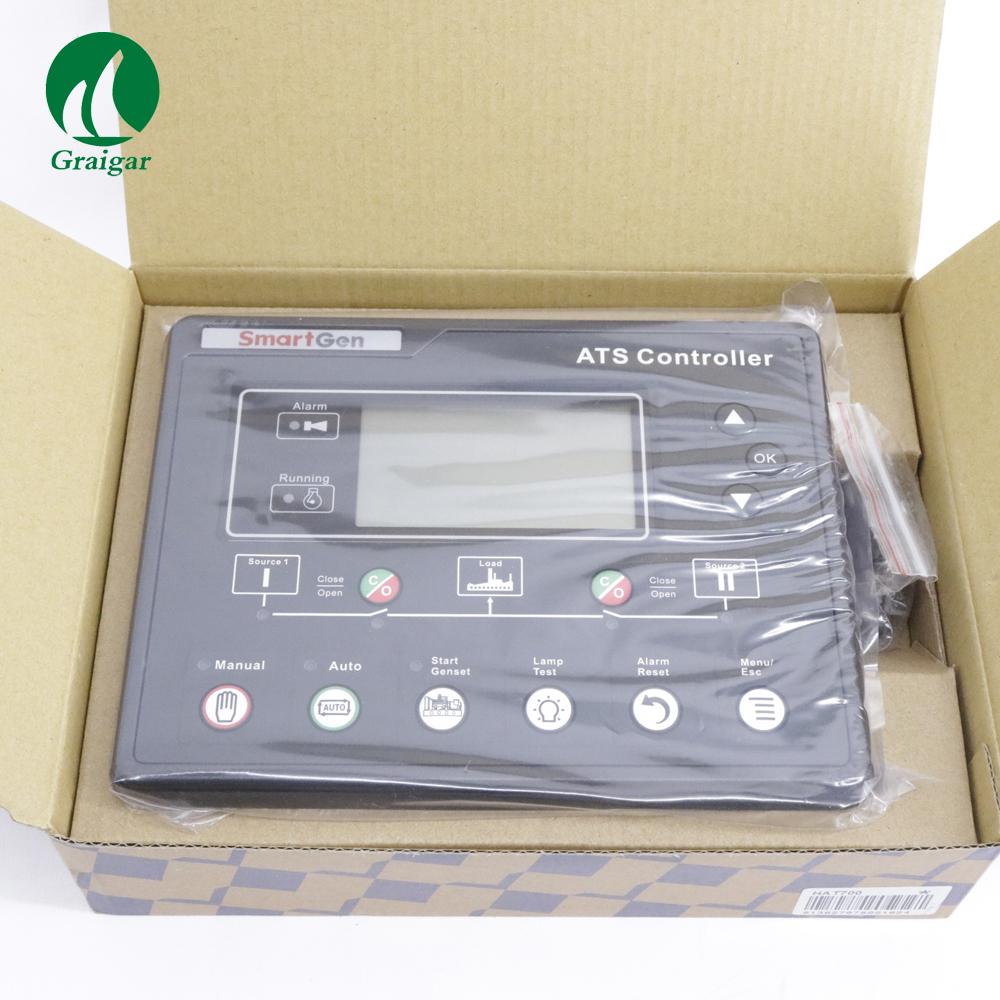

Smartgen HAT700 Series ATS Controller 2
Img 2

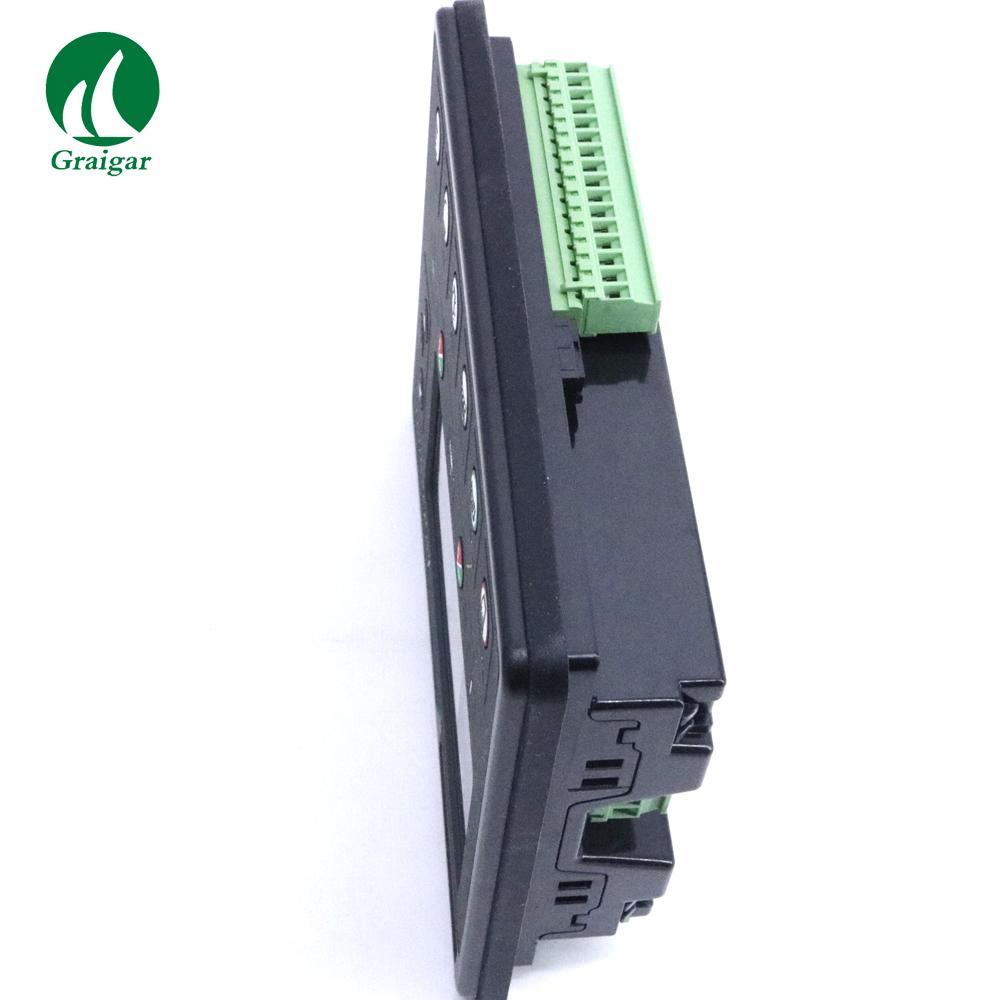

Smartgen HAT700 Series ATS Controller 3
Img 3

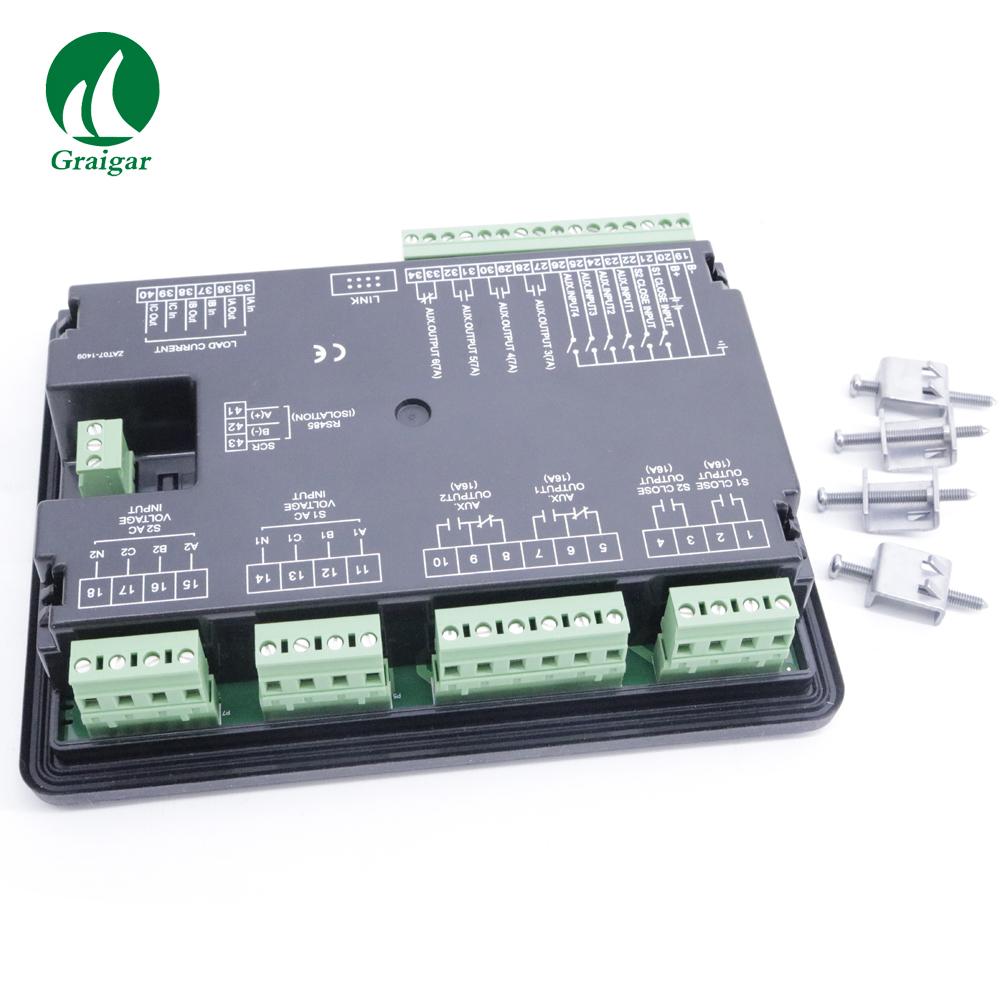

Smartgen HAT700 Series ATS Controller 4
Img 4

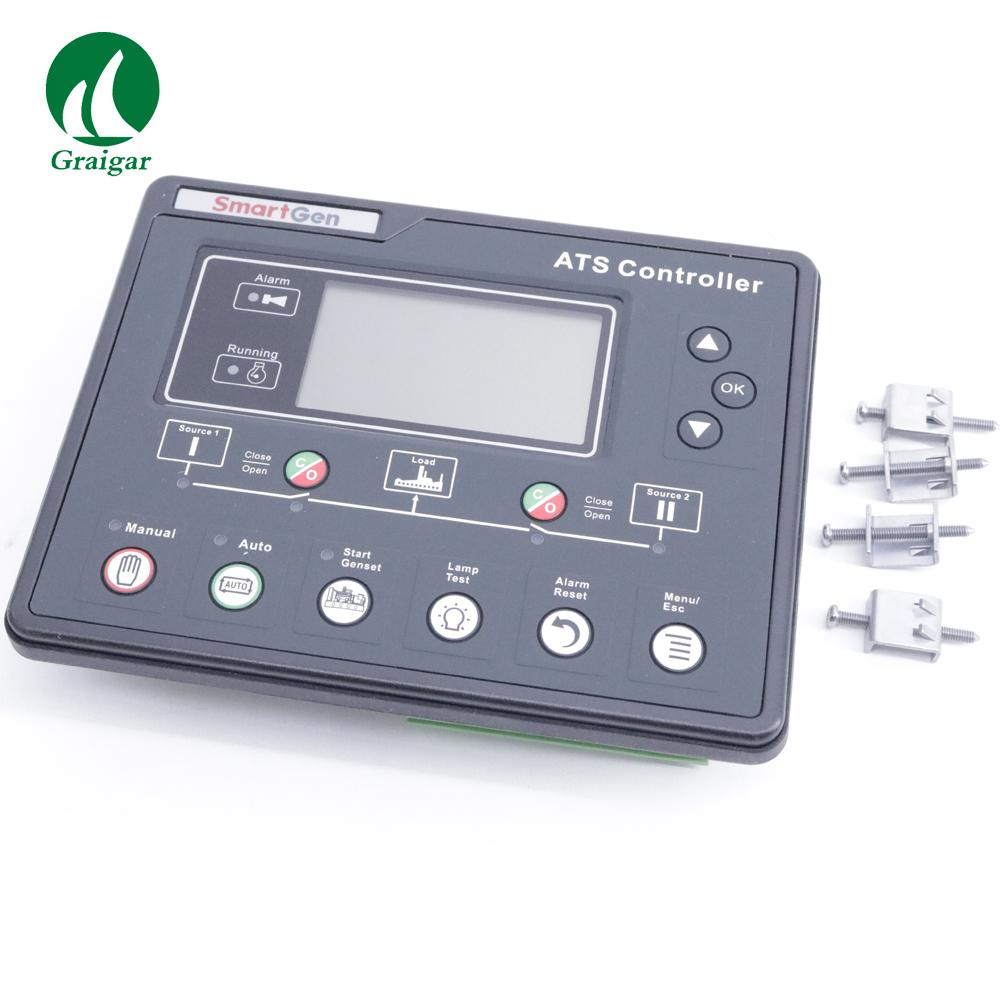

Smartgen HAT700 Series ATS Controller 5
Img 5

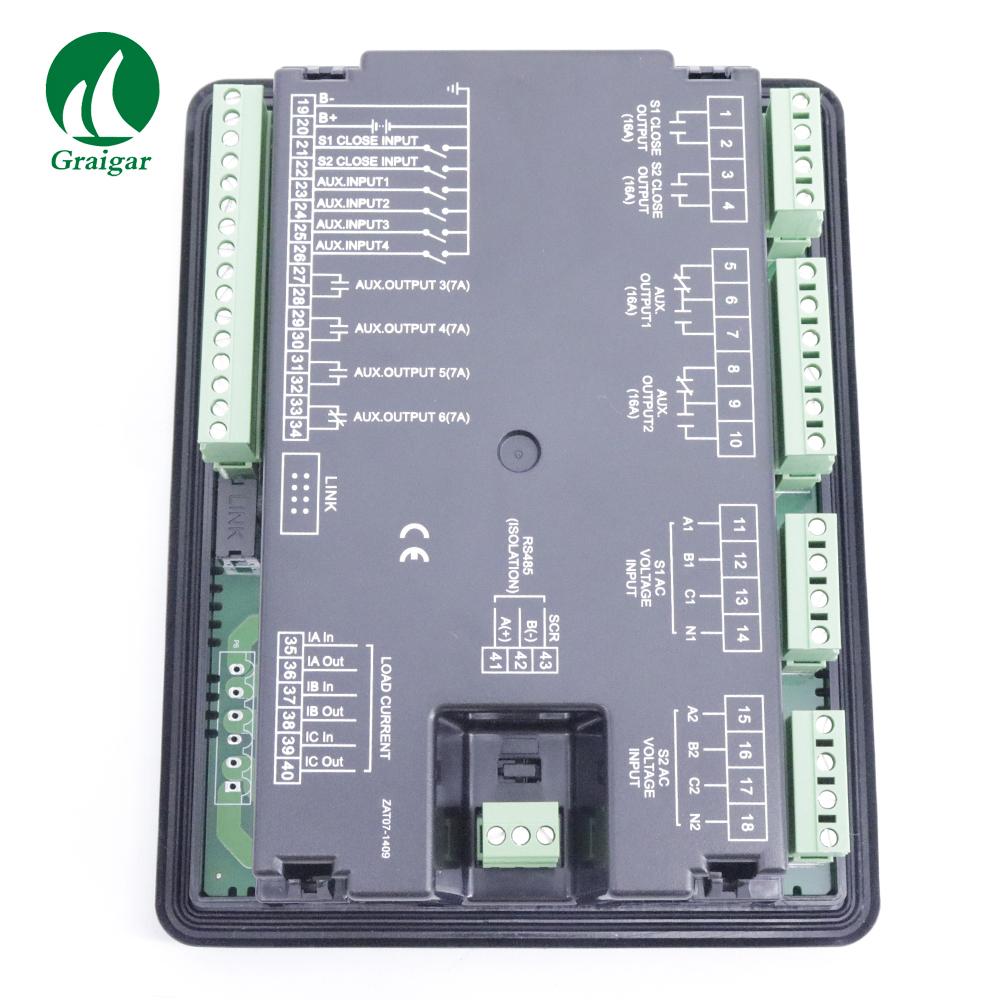

Smartgen HAT700 Series ATS Controller 6
Img 6
Smartgen HAT700 Series ATS Controller 7
Img 7

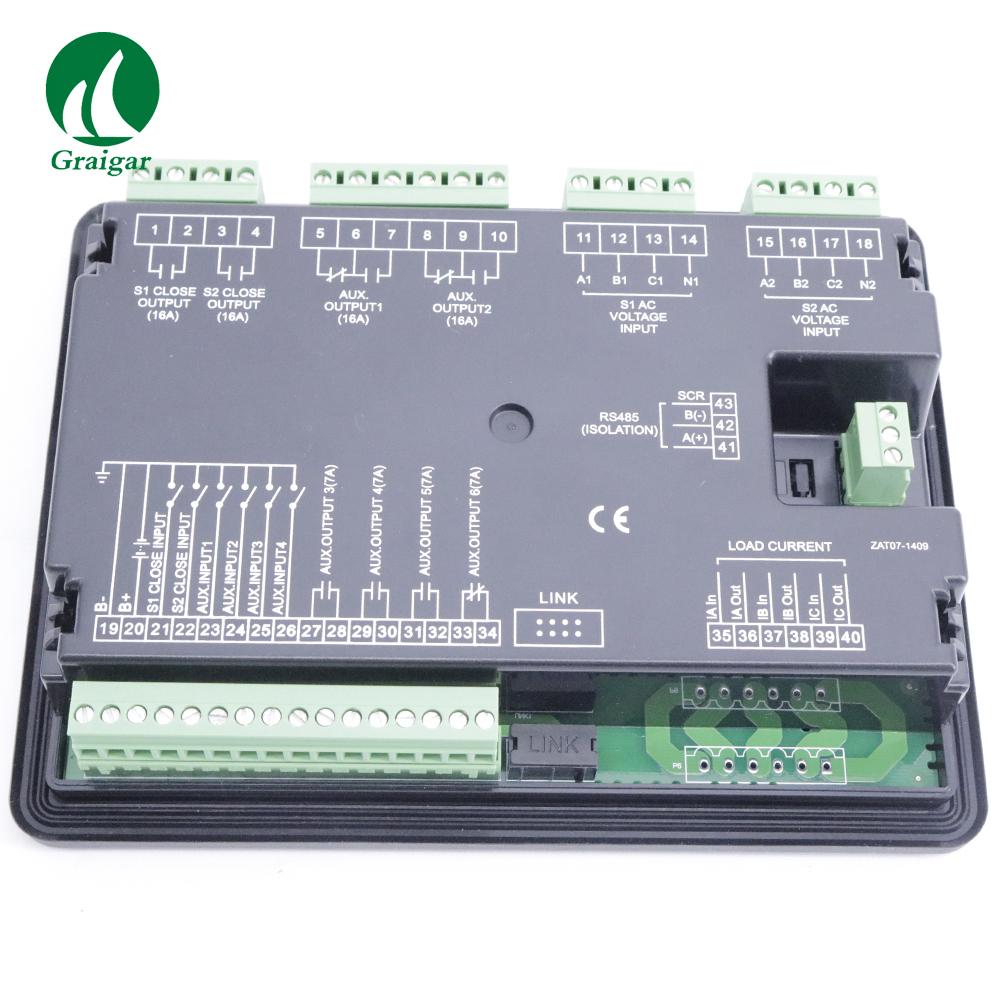

Smartgen HAT700 Series ATS Controller 8
