| Model: | SNL4B |
|---|---|
| Brand: | Sonight Lighting |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | led street light , street light price , street lighting |
| Price: |
¥80
/ pc
|
| Min. Order: | 1 pc |
| Last Online:21 Aug, 2015 |
Product Description
| SN-FL4B TECHNICAL FEATURES | |
| LED Light Source | Phillips Lumileds |
| IP rating | IP68 |
| Warranty | 5years |
| Input Voltage | 90-305V AC |
| Total Watt | 40W 50w 60w 80w 100w 120w |
| Watt of LED module | 40W/50W//60W |
| LED modules quantities | From 1 to 2 module |
| Power Efficiency | 91% |
| Power Factor | 0.95 |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K-6000K |
| Beam Angle | 25°-144°(Customized) |
| Lamp Rated Luminous Efficiency | 100 lm/W ±10% |
| Total Harmonic Distortion | < 10% |
| Junction Temperature | <70° |
| Working Environment | minus 40℃ - plus 50℃ 10%~90%RH |
| LED Life Span | >50000hs |
| Body and Shell Materials | Aluminum Alloy |
| Surge Protection | 10KV |
| Installation Diameter | 57-63mm |
| Light Distribution Curve | Batwing Light Distribution Curve |
| SN-FL4B LED QUANTITIES(LED MODULES) | |||||
| Model(Module) | Power | LM/W | Lumens(lm) | Packing size(mm) | G.W(kg) |
| SNL4B-1 | 40 | 100 | 4000 | 870*285*105 | 5.4 |
| 50 | 95 | 4750 | |||
| 60 | 90 | 5400 | |||
| SNL4B-2 | 80 | 105 | 8400 | 870*285*105 | 6.6 |
| 100 | 100 | 10000 | |||
| 120 | 95 | 11400 | |||
Features
Technical Advantages
High-efficacy LED Light source
Our led street lights adopts Philips lumileds LUXEON T LED source with super efficacy and light output from a compat source. Optimized for efficacy driven applications with typical Vf: 2.7V and low thermal resistance: 3K/W. Specified,targeted and tested hot, at real world operating temperatures, Tj=85℃ to ensure in- application performance.
Honeycomb Briquette effect
SNL1B led street light simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly,and reduce the light temperature by around 20 ℃.
Free Serialization
This led street light is available to freely equip with different numbers of modules to achieve different powers as required.
Applications
Street lighting, park lighting, roadway lighting, path lighting...
LED Modules For LED Street Lights

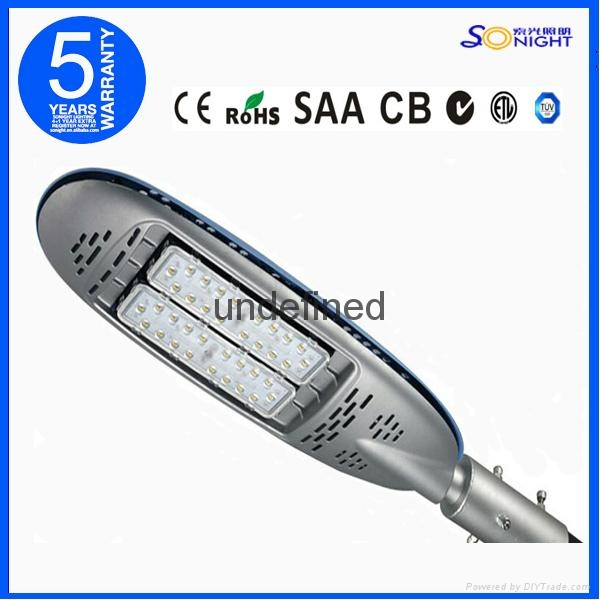

Modular LED Street Light 120W with UL, CE
Certifications
Modular LED Street Light 120W with UL, CE
FAQ
1. We have our own designs, specifications and drawings ready. Can you work with our requirements?
Yes,we have our own factory,our technicals have over 18years experience in lighting industry. Special products could be customerized according to your owndesigned draft,tech,parameters
or pictures.
2.What's the main certificates on your led products?
All of our led lights have C-tick ,CE, CQC, EMC ,ETL ,RoHS ,SAA ,UL listed;
3.How do you gurrantee the quality of your products?
We provide 5 years warranty.If the lamp chips don't work within 5years,we will send you a new module.
4.what is you main led products?
We provide led lights (led high bay/tunnel/street/flood lights) led bulbs,led modules,ballast...
