| Model: | customized |
|---|---|
| Brand: | Believe Industry |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | roof tile machine , roof forming machine , roll forming machine |
| Price: |
US $28000
/ set
|
| Min. Order: | 1 set |
| Last Online:23 Nov, 2017 |
Description:

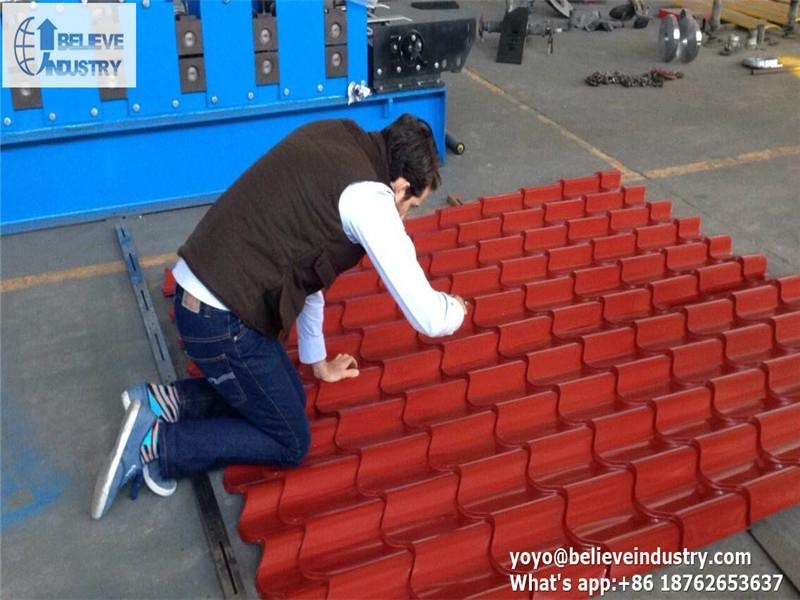

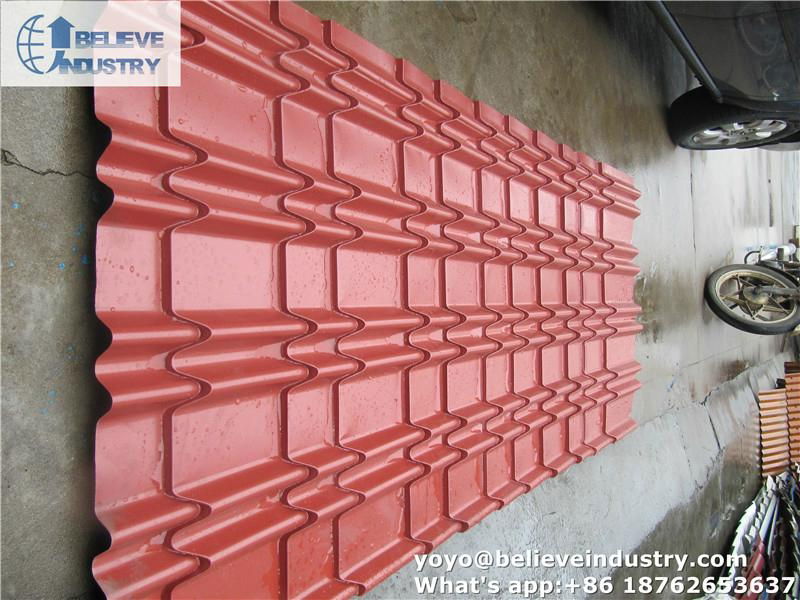

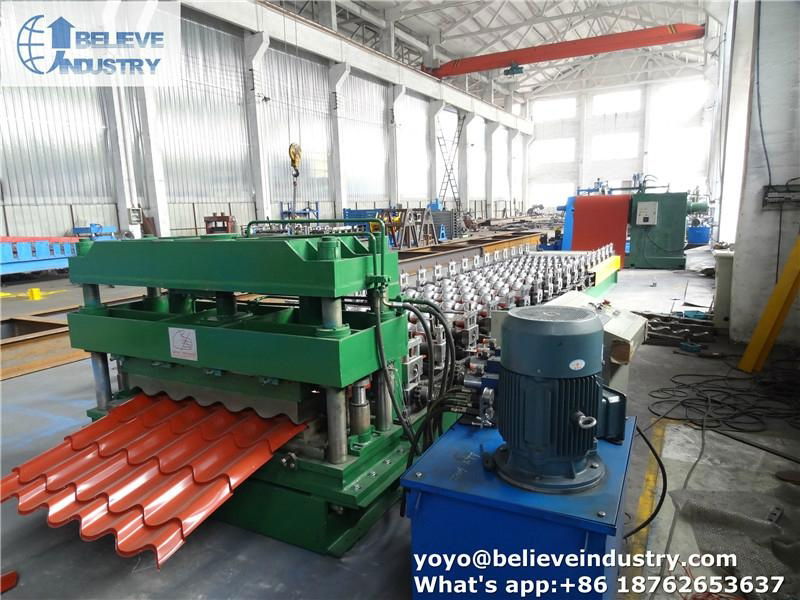

Coating rolled steel can be manufactured into colored steel roof tile after undergoing processes of decoiling, roll forming, profiling, and cutting, etc. And rational forming ensures the high strength and favorable appearance. The main elements of this machine are decoiler, roll former, presser and cutter equipment, hydraulic pump station, product table and control cabinet, etc. And we can produce various equipments according to specific requirements of our customers.
Properties:
This machine is fully automatically controlled by PLC, and operated by touch screen. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.
Operation and Points That Need Attention:
The roof tile forming machine is totally controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.
Maintenance and Lubrication:
Users have to regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.
Transportation and Packaging:
This kind of machine should adopt sea shipping by container and nude packing.
Parameters:
1. Suitable material: coating rolled steel, galvanized sheet, etc.
2. Suitable thickness: 0.4-0.8mm
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 2-6m/min
5. Main motor power: 7.5Kw (depending on specific requirements of users)
6. Cutting mode: hydraulic cutting
7. Hydraulic station power: 4Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler
www.believeindustry.com
yoyo@believeindustry.com
What's app:+86 18762653637
| Payment Terms: | TT 30% as deposit, 70% before shipment |
|---|---|
