SMD illuminated Tact Switch With LED

Model:	TS9-0000WA
Brand:	Fvwin
Origin:	Made In China
Category:	Electronics & Electricity / Switch / Push Button Switch
Label:	illuminated switch , led tact switch , illuminated button
Price:	¥0.4 / pc
Min. Order:	1000 pc

Inquire Now

Member Information

Dongguan Fvwin Electronics Co.,Ltd

Free MemberGuang Dong - China

Last Online:19 Oct, 2021

Product Description

Led tact switch series main technical parameters:

Circuit :SPST
Current rating :50mA
Voltage rating :12VDC

Dielectric withstanding voltage:250VAC for 1minute
Contact resistance :100 Max.(Initinal)
Insulation resistance :100 Min.
Operating force :200 add/reduce 50gf 300 add/reduce 50gf

Total travel :0.25mm±0.1mm
Operating life :100000 cycles Min
Solder specifications :260 for 5 seconds
Function :Momentary
Operating temperature :+10-+60

illuminated:LED (red/green/blue/green/white)

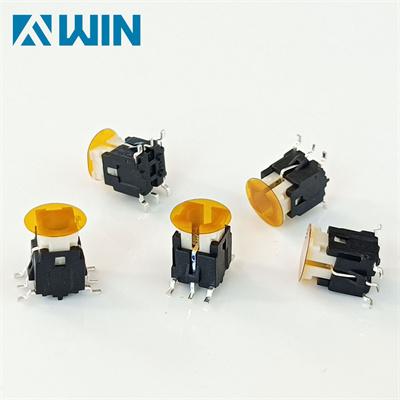

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
