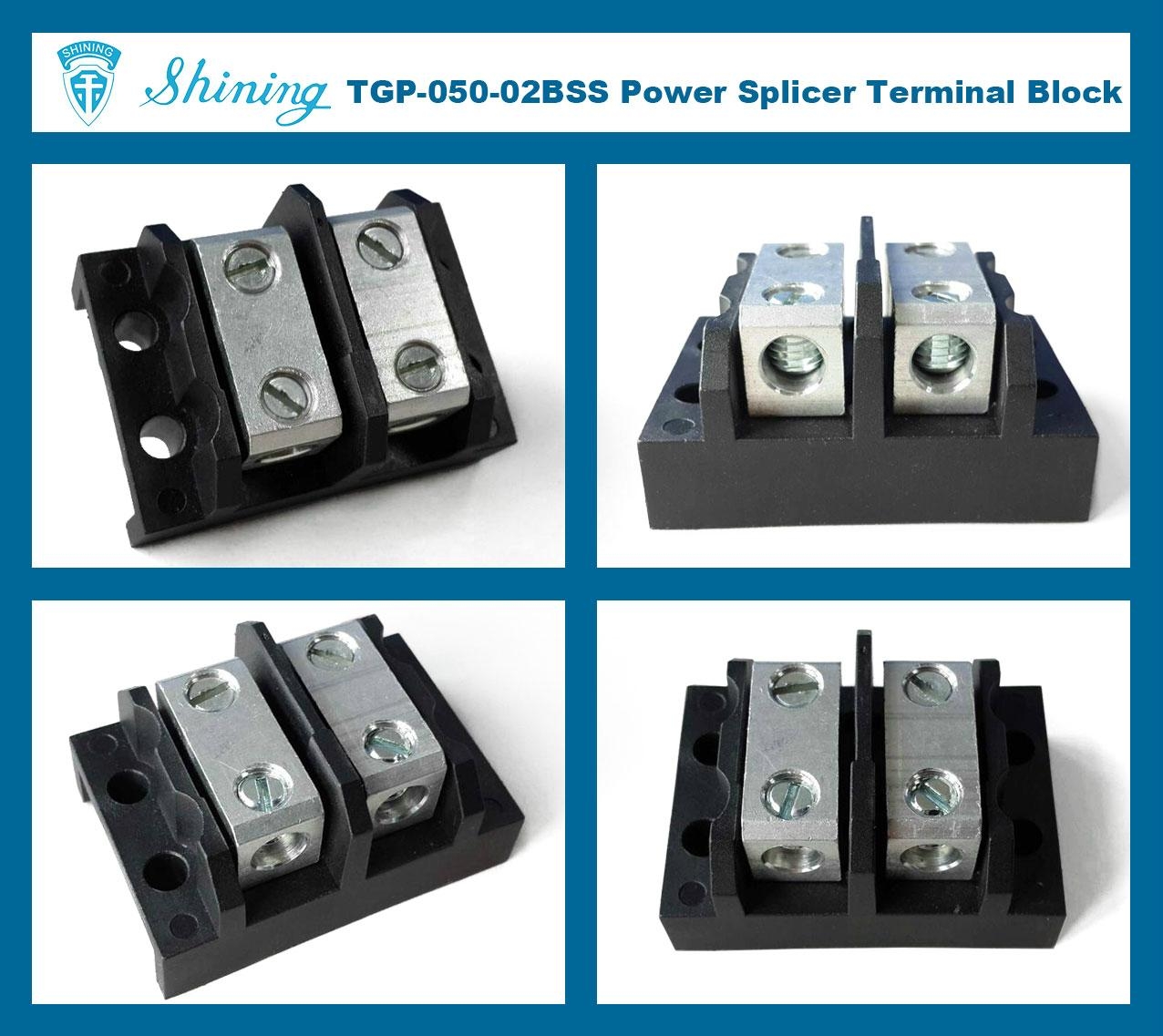

TGP-050-02BSS 600V 50A 2 Way Electrical Splicer Terminal Block
| More Information | ||
| TGP-050-02BSS |
|
|
| http://www.terminalsblocks.com/ | ||
| http://www.terminalblockmanufacturer.com/ | ||
Product Description
|
Gerneral Product Information |
|
| Item number: | TGP-050-02BSS |
| Rating: | 600V, 50A, 2 Way (Pole) |
| Size: | 50.0*37.0*32.5mm (L*W*H) |
| Wire Size: |
Input: #16-6 AWG / Output: #16-6 AWG Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2 |
| Screw Size: | Slotted Set Screw, M6-1.0 |
| Dimensions [mm] | ||||
| Item No. | Poles (P) | Length (L) | Width (W) | Height (H) |
| TGP-050-02BSS | 2 | 50.0mm (1.969") | 37.0mm (1.457") | 32.5mm (1.280") |
| TGP-050-03BSS | 3 | 65.0mm (2.559") | ||
| TGP-050-04BSS | 4 | 80.0mm (3.150") | ||
| TGP-050-05BSS | 5 | 95.0mm (3.740") | ||
| TGP-050-06BSS | 6 | 110.0mm (4.331") | ||
| TGP-050-07BSS | 7 | 125.0mm (4.921") | ||
| TGP-050-08BSS | 8 | 140.0mm ( 5.512") | ||
| TGP-050-09BSS | 9 | 155.0mm ( 6.102") | ||
| TGP-050-10BSS | 10 | 170.0mm ( 6.693") | ||
| TGP-050-11BSS | 11 | 185.0mm ( 7.283") | ||
| TGP-050-12BSS | 12 | 200.0mm ( 7.874") | ||
| Product Features |
|
Item Number: TGP-050-02BSS Rated Voltage: 600V Rated Current: 50A Install Type: Panel Mounted. Din Rail is not required Way (Pole): 2 Way (Pole) Characteristic: 1. Screw: Slotted Set Screw (M6-1.0) 2. Screw Material: Blank= Steel; SS= Stainless Steel 3. Input: 1 Way ; Output: 1 Way Certificate: RoHS. UL / cUL Approval |
 |
||||||
| Item No. | TGP-050-02BSS | TGP-050-03BSS | TGP-050-04BSS | TGP-050-05BSS | TGP-050-06BSS | TGP-050-07BSS |
| Specifications | ||||||
| Total Length (L) [inch] | 50.0mm (1.969") | 65.0mm (2.559") | 80.0mm (3.150") | 95.0mm (3.740") | 110.0mm (4.331") | 125.0mm (4.921") |
| Ref. Length (L1) [inch] | 42.0mm (1.654") | 57.0mm (2.244") | 72.0mm (2.835") | 87.0mm (3.425") | 102.0mm (4.106") | 117.0mm (4.606") |
| Ref. Length (L2) [inch] | 15.0mm (0.591") | |||||
| Ref. Length (L3) [inch] | 10.0mm (0.394") | |||||
| Width (W) [inch] | 37.0mm (1.457") | |||||
|
Ref. Width (W1) [inch] |
16.0mm (0.630") | |||||
| Height (H) [inch] | 32.5mm (1.280") | |||||
| Screw (Line) | Slotted Set Screw, M6-1.0 | |||||
| Rated Torque [in-lb] | 2.26 N-m (20 in-lb) | |||||
| Quick Connect Size (Load) | N / A | |||||
| Way (Pole) | 2 | 3 | 4 | 5 | 6 | 7 |
| Electrical Specifications | ||||||
| Rated Voltage [V] | 600V | |||||
| Rated Current [A] | 50A | |||||
| Wire Size [AWG] | Input: #16-6 AWG / Output: #16-6 AWG | |||||
| WIre Size [mm2] | Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2 | |||||
| Materials | ||||||
| Insulator Materials | PBT | |||||
| Color | Black | |||||
| Flame Retarded Grade | UL 94V-0 | |||||
| Temperature [℃] | 120℃ | |||||
| Approval | UL/cUL Approved. File No. E257927 | |||||
| |
|||||
| Item No. | TGP-050-08BSS | TGP-050-09BSS | TGP-050-10BSS | TGP-050-11BSS | TGP-050-12BSS |
| Specifications | |||||
| Total Length (L) [inch] | 140.0mm (5.512") | 155.0mm (6.102") | 170.0mm (6.693") | 185.0mm (7.283") | 200.0mm (7.874") |
| Ref. Length (L1) [inch] | 42.0mm (1.654") | 57.0mm (2.244") | 72.0mm (2.835") | 87.0mm (3.425") | 102.0mm (4.106") |
| Ref. Length (L2) [inch] | 15.0mm (0.591") | ||||
| Ref. Length (L3) [inch] | 10.0mm (0.394") | ||||
| Width (W) [inch] | 37.0mm (1.457") | ||||
|
Ref. Width (W1) [inch] |
16.0mm (0.630") | ||||
| Height (H) [inch] | 32.5mm (1.280") | ||||
| Screw (Line) | Sloted Set Screw, M6-1.0 | ||||
| Rated Torque [in-lb] | 2.26 N-m (20 in-lb) | ||||
| Quick Connect Size (Load) | N / A | ||||
| Way (Pole) | 8 | 9 | 10 | 11 | 12 |
| Electrical Specifications | |||||
| Rated Voltage [V] | 600V | ||||
| Rated Current [A] | 50A | ||||
| Wire Size [AWG] | Input: #16-6 AWG / Output: #16-6 AWG | ||||
| WIre Size [mm2] | Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2 | ||||
| Materials | |||||
| Insulator Materials | PBT | ||||
| Color | Black | ||||
| Flame Retarded Grade | UL 94V-0 | ||||
| Temperature [℃] | 120℃ | ||||
| Approval | UL/cUL Approved. File No. E257927 | ||||
| Packaging |
| 500pcs/N.W. :21.5kgs /carton |
