HD Uncooled VOx 1280*1024 12μm Infrared Detector

Model:GST1212M
Brand:GST
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Sense Organ
Label:1280 IR Detector , 12 micron VOx array , HD microbolometer
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

GST1212M  is an integrated 14 bit AD, low NETD, high reliable, small and lightweight, low input power focal plane array adapted to uncooled thermal imaging. It includes a Focal Plan Array(FPA) made from VOX resistive bolometer connected to a silicon Read Out Integrated Circuit(ROIC),and thermoelectric cooler (TEC).

1.1 SPECIFICATIONS

   Array Format: 1280×1024
   Pixel-pitch: 12μm
   Spectra range:8μm -14μm
   Thermal response time:< 12ms ( customizable )
   Responsivity≥10mV/K (10~20mV/K adjustable)
   Frame rate:25Hz
   Internally integrated with 14 bit AD( dynamic range:1V~3V)
   Typical consumption:≤700mW(excluding TEC)
   Weight:< 55g
   Response rate non-uniformity:≤5%

1.2 FEATURES

   Vanadium oxide Uncooled Infrared Focal Plane Array

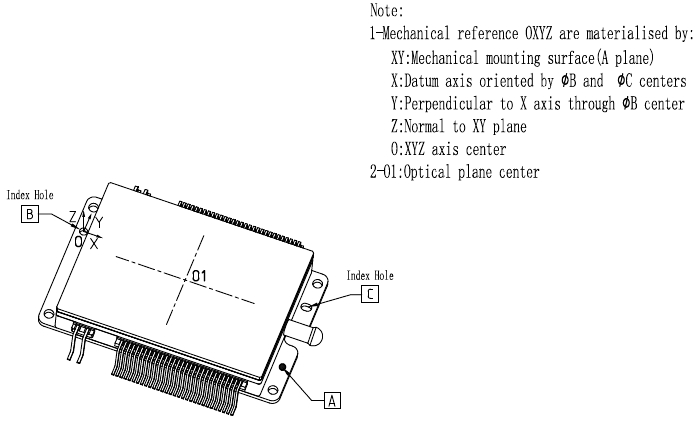

   64-pin metal envelope vacuum package
   On-chip Non-Uniformity Correction(NUC)
   Built in temperature controller(TEC)
   On-chip temperature sensor
   Anti-death line protection mechanism
   Digital LVDS Differential Input and Output
   Power supply: 3.6V for analog, 1.92V for digital


Payment Terms:T/T

Product Image

HD Uncooled VOx 1280*1024 12μm Infrared Detector 1
Img 1
HD Uncooled VOx 1280*1024 12μm Infrared Detector 2
Img 2
HD Uncooled VOx 1280*1024 12μm Infrared Detector 3
Img 3
HD Uncooled VOx 1280*1024 12μm Infrared Detector 4
Img 4
