| Model: | RS058 |
|---|---|
| Brand: | GST |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Refrigeration & Freezers |
| Label: | Stirling cryocooler , IR detector cooler , micro cooler |
| Price: |
-
|
| Min. Order: | - |
| Last Online:05 Nov, 2024 |
RS058 is a member of a series of rotary stirling cryocoolers produced by GST. Motor windings separated from the working gas prevents contamination. Adopting high wear-resisting coating and clean room assembly are applied to prolong the lifetime and high reliability. For compactness, the electronic drive is integrated. An onboard temperature sensor offers stand-by, remote shutdown and over-temperature protection options. Direct integration of a Dewar on a cooler(IDDCA) can be implemented to achieve compactness and efficiency.
Features:
Low consumption
Low noise
MTTF > 10000h
Built-in drive electronics >550 mW
cooling power @ 77K
Ø8 cold finger
|

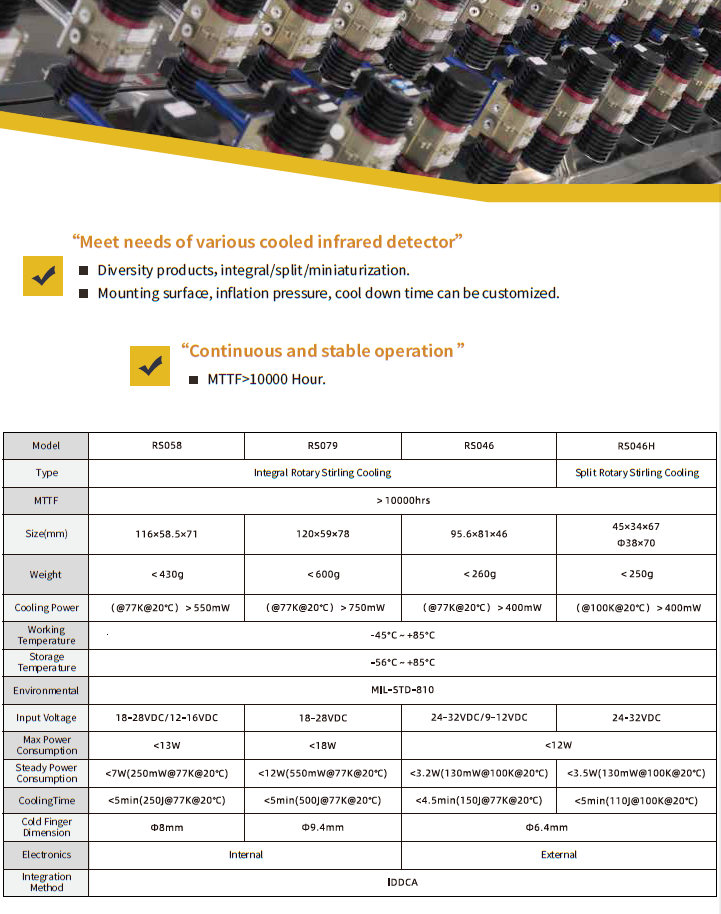

Model |
RS058 |
|
Type |
Integral Rotary Stirling Cooling |
|
MTTF |
＞10000hrs |
|
Weight |
＜430g |
|
Cooling Power |
（@77K）＞550mW |
|
Working Temperature |
-45℃～+85℃； |
|
Storage Temperature |
-56℃～+85℃ |
|
Environmental |
MIL-STD-810 |
|
Input Voltage |
18-28VDC |
|
Power Consumption
|
＜14W@23℃ |
|
Power Consumption
|
＜7W（220mW@77K@23℃） |
|
Cooling Time（@77K） |
＜5min（250J@77K@23℃） |
|
Cold Finger Dimension |
Ф8 |
|
Electronics |
Internal |
|
Integration Method |
IDDCA |
| Payment Terms: | TT |
|---|---|
