| Model: | PJ100 |
|---|---|
| Brand: | RAINBOW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | CONICAL FERMENTER , BEER FERMENTER , 100l fermenter |
| Price: |
US $1200
/ pc
|
| Min. Order: | 1 pc |
| Last Online:08 Nov, 2022 |
INTRODUCTION
Specification of the 100l beer fermentation tank
Question:
1. We have capacities of 100 liter to 10000 liter, which capacity do you prefer, 100L?
2. How many tanks do you need?
3. Do you need any other part of the brewery, such as mashing system, cip system, steam boiler, cooling system, control system, bottling system, kegging system?
|
NO |
Equipment |
Specification |
Quantity |
|
Fermentation system |
Fermentation tank |
100 L |
? |
|
-Dimension: 650*1450mm -Material: Inside wall, SUS 304, 3mm Outside wall, SUS 304, 1.5mm Cooling jackets, SUS 304, 1.5mm Insulation, PU, 100mm -Dome top with dry hop port -Top manway -Cone bottom, 60 degree -Cooling jackets on both cylinder and cone -Inside 360 rotating CIP ball -Thermowell, 8mm -Temperature sensor, Model: PT100 -Pressure gauge -Safety valve -Inside polishing 0.4-0.6 micron -Working pressure: 0.15Mpa -Testing pressure: 0.3Mpa -Wort piping and butterfly valves, ø32mm -Drainage piping and butterfly valve, ø32mm -3 legs with adjustable bolts |
|||
|
Spare parts |
All the necessary hoses, pipes, valves, clamps/gaskets, thermometer and gauges…etc |
||
OUR CLIENTS
Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland
CHARACTERISTICS
1-For all kinds of beer's fermentation(ale and lager)
2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L..
3-Thickness of stainless board and PU/ rock wool insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU or rock wool
4-Technical support can be provided by our engineer, if you need, they can come to your country to help you install the equipment and brew beer.
5-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler...
CONFIGURATION OF OUR COMPLETE BREWERY
We, Jinan MIBE Machinery Co.,Ltd & Jinan Rainbow Machinery are a professional manufacturing and trading company for good quality Beer Brewing Systems, ranging from 100 liter to 10000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.
SPECIFICATION OF OUR 100L COMPLETE BREWERY
Notice:
Before you inquire, some questions below will be confirmed:
1-How many beer do you want to brew in a batch, 100 liter?
2-What kind of heating source do you prefer, gas direct fire, electric or steam?
3-Do you need other equipment like bottle filling and capping machine, keg filling and washing machine, steam boiler, kegs...?
|
Items |
Equipment |
Specification |
Quantity |
|
Malt miller |
Malt miller |
200kg/hour |
1 |
|
Brewhouse system |
Mash tun&lautering tun |
100L |
1 |
|
Brew kettle&whirlpool |
100L |
1 |
|
|
Hot liquid tank |
100L |
1 |
|
|
Plate heat exchanger |
2m2 |
1 |
|
|
Wort oxygenator |
|
1 |
|
|
Pump |
3t/h |
1 |
|
|
Working platform |
|
1 |
|
|
Fermentation system |
Fermenter |
100L |
6 |
|
Yeast adding tank |
20L |
1 |
|
|
Cooling system |
Glycol water tank |
200L |
1 |
|
Cooling compressor |
3hp |
1 |
|
|
Pump |
3t/h |
1 |
|
|
CIP washing system |
Alkali tank |
50L |
1 |
|
Sterilization tank |
50L |
1 |
|
|
Pump |
3t/h |
1 |
|
|
Control system |
Digital display controling system |
1 |
|
|
Spare parts |
All spare parts |
||
|
|
|||
EQUIPMENT IMAGES
POLISHING AND WELDING
PACKAGE AND FACTORY IMAGE

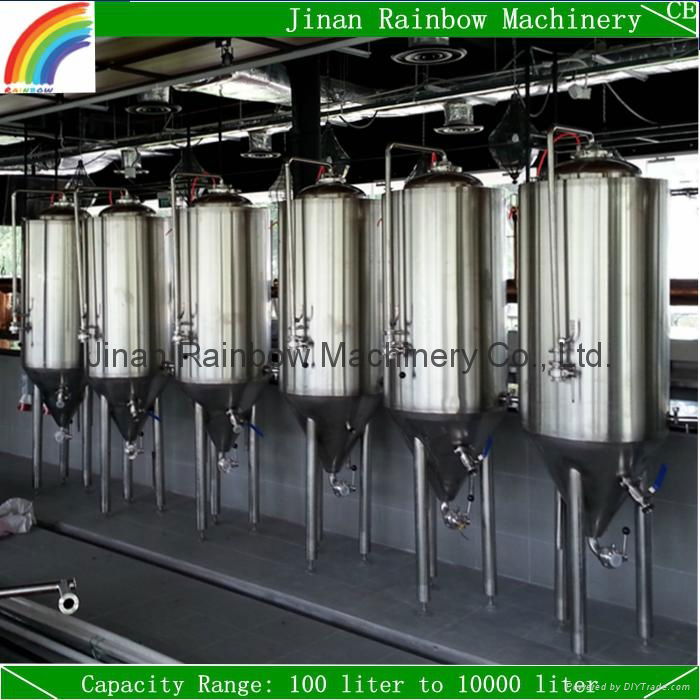

IMAGE OF OUR COMPLETE BREWERY
CERTIFICATE
CONTACT INFORMATION
| Payment Terms: | T/T, L/C, Western Union |
|---|---|
