200L Micro Brewery / Beer Making Machine Used for Pub

Model:RM200
Brand:RAINBOW
Origin:Made In China
Category:Industrial Supplies / Food, Beverage & Cereal Machine
Label:200L PUB BREWERY , BEER MACHINE , BREWERY
Price: US $23000 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Jinan Rainbow Machinery Co., Ltd.

Biz MemberShan Dong - China
Last Online:08 Nov, 2022

Product Description



INTRODUCTION



We provide small and medium brewery equipment for brewers on home and abroad.

Each of the brewing machine we product will be well welded, polished and tested before shipment.



Before you quote,some questions should be kindly confirmed:

1-How many beer do you want to brew in a batch, 200 liter?

2-What kind of heating source do you prefer, steam, gas direct fire or electric?

3-Do you need other equipment, such as steam boiler, bottle filling and capping machine, keg filling and cleaning machine, kegs...?

Here follows is the configuration of 200 liter brewery, please check for reference, if any other preference, you can contact us.

Items

Equipment

Specification

Quantity

Malt miller

Malt miller

200kg/hour

1

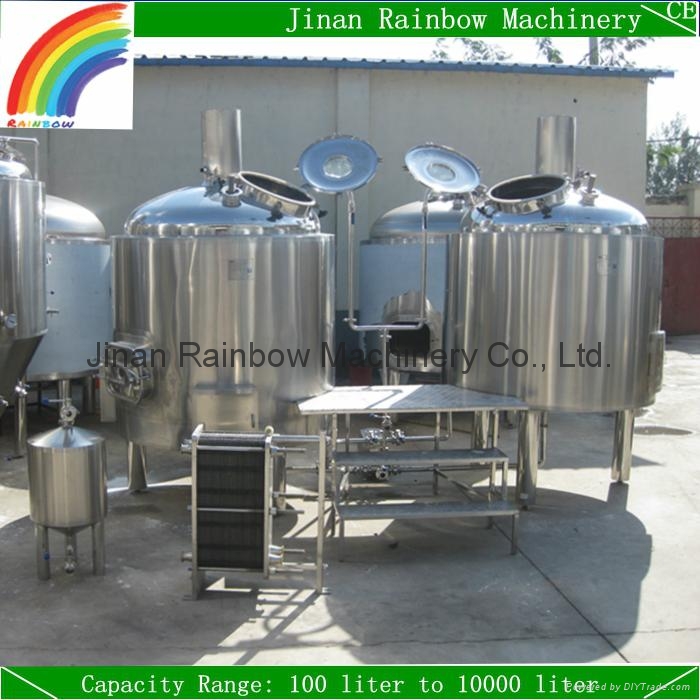

Brewhouse system

Mash tun&lauter tun

200L

1

Brew kettle&whirlpool tank

200L

1

Hot liquid tank

200L

1

Plate heat exchanger

2m2

1

Wort oxygenator



1

Pump

3t/h

1

Working platform



1

Fermentation system

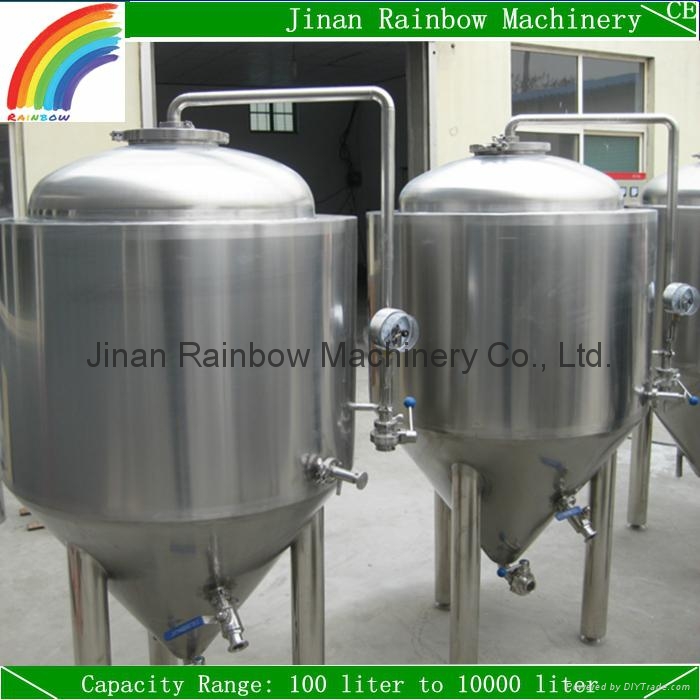

Fermenter

200L

6

Yeast adding tank

20L

1

Cooling system

Glycol water tank

400L

1

Cooling compressor

3hp

1

Pump

3t/h

1

CIP washing system

Alkali tank

50L

1

Sterilization tank

50L

1

Pump

3t/h

1

Control system

Digital display control system

1

Spare parts

All spare parts



Propsoal1





Specification of Our Main Tanks



mashing  and fermenting tanks:



Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU/rock wool; inside polishing 0.4-0.6um dome top with manhole; rotating CIP washing ball; thermowell for temperature sensor and thermometer



cooling tanks: Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU; inside cooling tube



Country of Our Clients



Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...





SPARE PARTS



Our Spare Parts

Pipe line for brewhouse

SUS304

Measuring cylinder

SUS304

Butterfly valve

Ø32

Butterfly valve

Ø38

Sight glass

Ø32

Saccharimeter

0-10; 10-20

Spent grains harrow

SUS 304

Fermenter’s safety valve

ø32

Fermenter’s Sample valve

ø32

Pressure gauge

0-0.6Mpa

Pipe line for cooling unit

SUS 304

Cooling water solenoid valve

ø32

Cooling pipe insulation



Expansion valve for cooling compressor



Control box cable



Signal wire



SIEMENS frequency convertor

V20

Electric relay

Omron

Temperature sensor

PT100



  spare part



COMPANY PROFILE



We, Jinan MIBE Machinery Co.,Ltd & Jinan Rainbow Machinery are a professional manufacturing and trading company for good quality Beer Brewing Systems, ranging from 100 liter to 10000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.



  • Brewhouse System
  • Fermentation System
  • Cooling System
  • CIP System
  • Control System
  • Filtration System (need or not?)
  • Bottle Machines (need or not?)
  • Keg Machines (need or not?)



FEATURE



1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customized parameter:   a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)



                                               b. voltage(220v or 380v or other electricity voltage )



                                               c. material thickness(our standard is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU or rock wool)



                                               d. dimension of all the tanks(length, height, width)



                                               e. heating source(electric, steam, direct gas fire heating)



                                                f. making the equipment as per your design



3-Water and Pressure Test is made before shipment.



ADVANTAGES OF OUR BEER EQUIPMENT





1. We can provide services such as product design( we recommend suitable equipment as per your budget), beer tank layout, installation and training of beer fermentation...



2. bottle filling and washing machine, keg filling and washing machine, label machine, keg and steam boiler as per your capacity



3. 36 months for the main tank



PICTURES

1. equipment imageIMG_5985IMG_5140100

cooling compressor fang

CIP WashingIMG_4810

brewery

3. welding and polishing

polishing and welding

4. packaging and shipping

15. certificate

CERTIFICATE


Payment Terms:T/T, L/C, Western Union
