Product introduction

Product principle

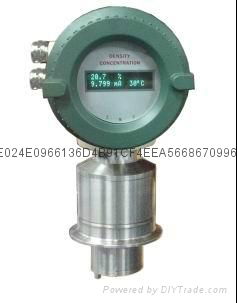

Sdt 600 - 4 series on-line density, concentration meter, is the use of acoustic frequency signal source for metal tuning fork excitation, and make the tuning fork at the center frequency free vibration, this frequency and contact with the density of the liquid has a corresponding relationship, so through the analysis of the frequency can measure the density of the liquid, and then temperature compensation can eliminate the temperature drift of the system; And that concentration value at the temperature of 20 deg c can be calculate according to the relation between the density and the concentration of the correspond liquid.

Application

It is mainly used in production process control and measurement of low corrosion liquid industry, such as oil field refining, food and beverage, paper industry, acid-base solution of chemical industry, liquor industry, salt industry, printing and dyeing industry, etc.

Installation

Suitable for pipe installation or container wall insert installation and other ways, dynamic or static can be measured, installation method has flange type and clamp type.

FEATURES

1)4-wire transmitter with integrated structure, no moving parts and simple maintenance

2)Three digits display for concentration, a decimal, current and temperature display in real-time

3)parameters can be set in the menu

4)easy installation, displaying the values immediately after inserting into liquid

5)Applicable for measurement of fluid or stationary liquid, applicable for installation on the pipe or side of container.

6)Zero trim and value trim are applicable.

7)Continuous online measurement of liquid concentration during non-interrupted process, can be directly used in the process control of production

8)All wetted parts are made of 316 stainless steel or PTFE, safe, hygiene and anti-corrosive.

TECHNICAL DATA

Output: 4~20mA

Power: 12~30VDC

Accuracy: 0.005g/cm3

Resolution: 0.2%

Working temperature: 0-60℃

Explosion-proof class: Intrinsic ExiaII CT6

Pressure: <2.5Mpa

Viscosity：<2000mpa·s

PHYSICAL DATA

Electric connection: M20X1.5(1/2NPT-14)

Wetted parts：316 、Ti

Process connection: flange (DN50 or 2”)
