DZD-6A Multi-Function DC Resistivity & IP Instruments

Model:DZD-6A
Brand:Gold
Origin:Made In China
Category:Industrial Supplies / Mining Machine
Label:resistivity meter , geophysical instrume , ip meter
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Main Applications

By utilizing relevant parameters of apparent resistivity and induced

polarization method, the instrument is widely used in many aspects

including metal and non-metal mineral resources exploration, energy

exploration, city geophysical exploration, railway and bridge

engineering exploration, etc.

Search for groundwater, solve the human and animal drinking water

issue as well as industrial and agricultural water issue. Determine

the hidden safety risk location in reservoir dam foundation and

flood-control dyke, find faultage zone and collapse column,

landslides, coal mining goaf, search for geothermal and other

hydrological, engineering geological exploration.

Accessories made by our factory with 60-channel or 120-channel

multiplex electrode switch, also can be used for multi-electrode

resistivity survey system.

Technical Specifications:

1. Receiving Part
Measuring Voltage Range: -6000mV~+6000mV
Measuring Voltage Resolution: 0.01 mV
Measuring Voltage Accuracy: (at Vp>10mV)±5%, ±1 digit; (at Vp<10mV)

±1%, ±1 digit
Measured Apparent Polarizability Accuracy: ±1%, ±1 digit
Measuring Current Range: 0~5000 mA
Measuring Current Resolution: 0.01 mA
Measuring Current Accuracy: (at Ip>10mA)±5%, ±1 digit; (at Ip<10mA)

±1%, ± digit
Input Impedance: ≥50MΩ
Interference Suppression on 50Hz Power Frequency: Better than 80dB

2. Transmitter Part

Maximum Transmitting Power: 4500 W
Maximum Power Supply Voltage 900V
Maximum Power Supply Current: 5A
Instrument has over-voltage and over-current protection devices
Power Pulse Width: 1-60 seconds, Duty Cycle 1:1

3. Others Parameter

Working Temperature: -10℃to +50℃, 95%Rh
Storage Temperature: 20℃ to +60℃
Power Supply: 1# Dry Cell (or rechargeable battery with the same

specification) 8 pcs
Machine Current: < 55 mA
Weight: 8 kg
Volume: 305×200×202 mm

Main Features:

Multiple functions in One Machine: The instrument has three functions

including long lead IP instrument, master of 2D resistivity imaging

system, and medium-power short lead transmitting.
Small-sized, Light in weight: The instrument integrates receiver and

transmitter together in the same cabinet, which can be used for

measurement via apparent resistivity method and induced polarization

method.

Various Measurement Parameters: Instrument can be applied in direct

measurement and indication of primary potential Vp, spontaneous

potential Vsp, power supply current I, apparent resistivity Ro,

apparent polarizability Ms, half-decay time Th, degree of decay D,

integrated IP parameters Zp, and degree of deviation R.

More flexible and convenient operating mode: Adopt all-digital

automatic measurement, can execute automatic compensation for

spontaneous potential, drift and electrode polarization. Use large

screen LCD display, can directly display the arrangement of nine

electrodes; directly input into pole arranging parameters with

keyboard; measuring resistivity curve apparent polarizability curve,

half-decay curve, etc. can be displayed directly when measurement of

measuring point completes,

Data Interpretation is more convenient: The instrument can measure

points on 4,800 survey data for storage. Each measuring point has 22

data, with RS-232 serial interface, through appropriate software the

stored data can be directly transfer to the computer for digital

interpretation of various methods.

Beautiful Instrument Apparent, Strong Structured: The aluminum chassis

effectively enhance the electromagnetic shielding; adopts thin-film

multi-layer sealed touch panel; multiple over-voltage, over-current

automatic protection are set for internal power supply part, allowing

the instrument to be suitable for various types of field environment.


Payment Terms:T/T, Western Union

Product Image

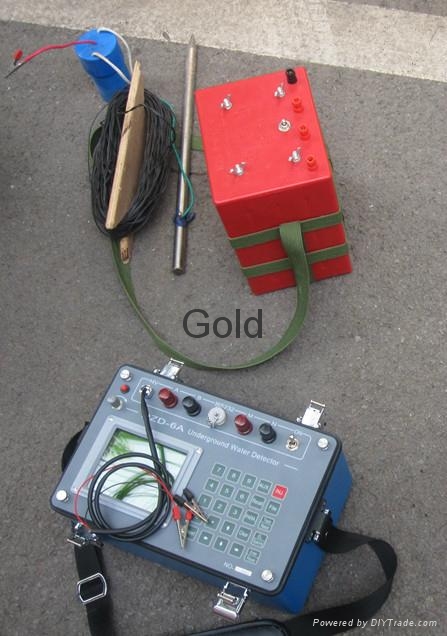

DZD-6A Multi-Function DC Resistivity & IP Instruments 1
