Intermediate frequency induction heating machine
Product Description

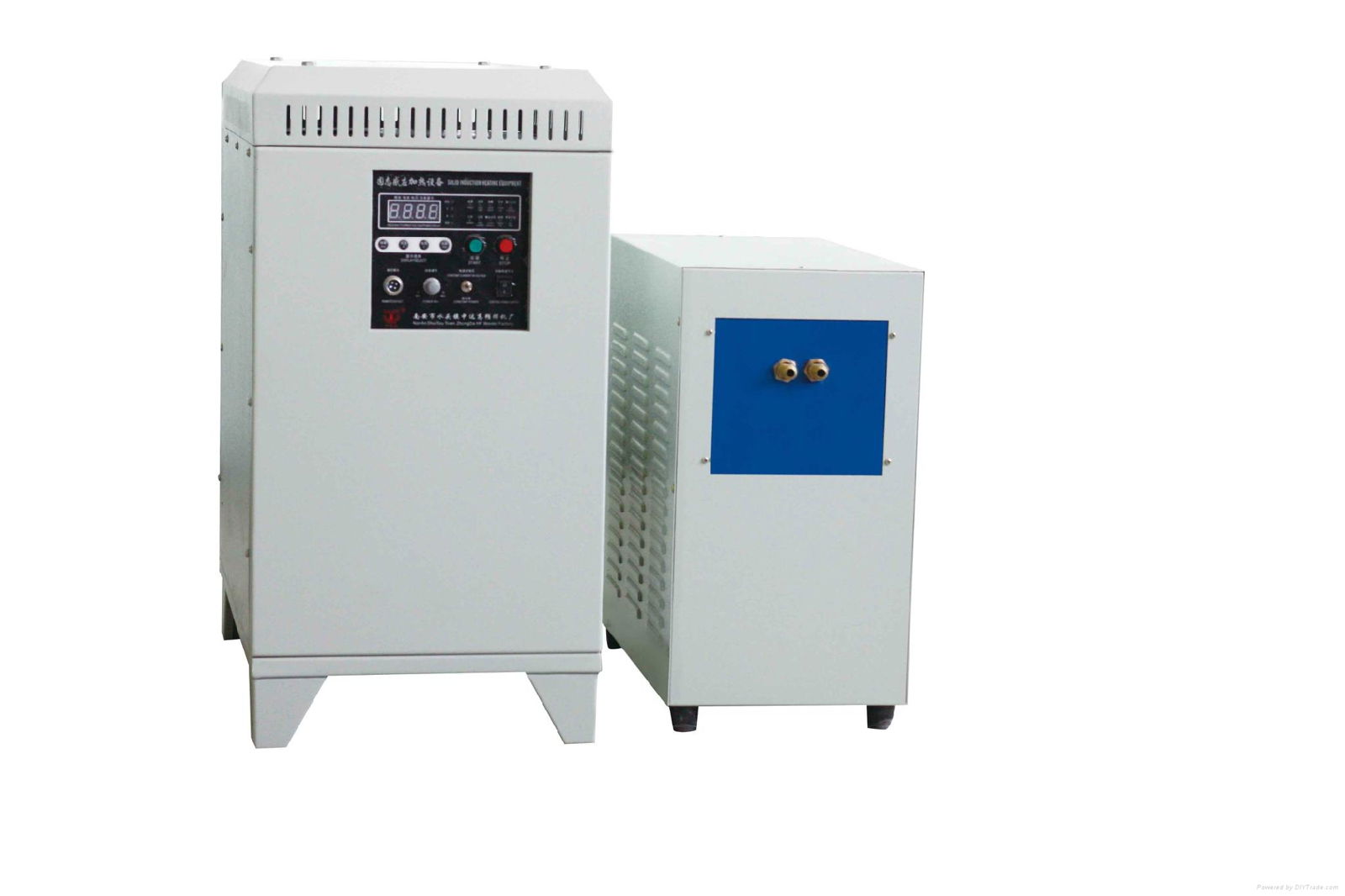

ZHY medium frequency IGBT series induction heating machine
Medium frequency induction heater hot forging furnace
1.Adopt IGBT. Frequency from 1 to 20KHz, energy saving and steady.
2.It's used in iron,copper,aluminum and steel heating and forging.
3.Easy operation, good working environment and no pollution.
4.By induction heating with big power can heat the rod very quickly to the required temperature.
5.24 hours constant working ability.
The composing of medium frequency induction forging furnace
1.40KW to 110KW generator supply
2.induction heating furnace and accessories
3.air cylinder
4.stand or working table
Power selection for different size rod
Model No |
Max input power |
Application |
ZHY-ZP-40 |
40KW |
For the length of rod about 40cm Φ15~30cm |
ZHY-ZP-70 |
70KW |
For the rod Φ15~50cm |
ZHY-ZP-110 |
110KW |
For the rod 20~65cm |
Components detection
Technical parameter
Model |
ZHY-ZP-90 |
Working voltage |
380V 50/60Hz |
Oscillating frequency |
1~20KHz |
Max input power |
90KW |
Efficiency |
90% |
Duty cycle |
24 hours |
Cooling water pressure(MPa) |
0.2~0.3 |
Cooling water temperature(ºC) |
20~40 |
Host dimension(cm) |
62*43*85 |
Transformer dimension(cm) |
65*47*90 |
Applications
Forging(Bar, pipe ends, bar end heating, flat plate)
Annealing(Steel pipe, brass lock, aluminum pan)
Hardening(Gear, shaft,, roller, pipe)
Melting( Iron, copper, brass, silver, aluminum etc)
Advantages:
1.Solid induction heating power. The volume is much small than SCR machine.
2.Energy saving. Compared with HF electrode tude power could save 40% power.
3.It's more safety and efficiency than gas heating. No pollution.
4.Induction heating is the fastest way of heating iron. It's much faster than any other
heating methods.
5.Only heat the workpiece in the induction coil. It won't make the tempertature of the
workshop very high.
6.100% duty cycle. 24 hours continuous working ability.
Company information:
Zhongda HF welder factory is located in the world's largest stone material market-Shuitou China.
Our first high frequency welding machine was produced in 1997. Our welding machine was used in
brazing diamond saw blade at first. After so many years research and development our products are
various. Power from 5KW to 300KW. Frequency from 1~1MKHz.. It's widely used in brazing, heating,
annealing, hardening, heat treatment, forging, melting and so on. We take the technology and quality
as the first, we have some induction heating engineers in our research and development department.
We would like to provide our high quality machine to our customers all over the world. Our staff would
provide life-long time after-sales service for each machine. Welcome to visit our factory and negotiate cooperation.
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer who have been engaged in this machine for over 20 years.
2.What's your MOQ?
Any quantity is OK. We have no requirements for this.
3.How about warranty?
All our machines have one year warranty.
4.How to install your machine?
There is a manual with the machine. Please follow the instructions in the manual.
5.Which port do you use?
Normally we use Xiamen and Quanzhou port. But we can use other pors as you appoint.
6.How about payment terms and delivery time?
For small amount: 100%TT/Western union/Cash in advance.
For big order and large amount: 30% deposit, 70% before shipment.
7.How about package?
Usually machine is packed with wooden case and standard export carton, plywood carton or your requirement.
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
