| Model: | SCR100 |
|---|---|
| Brand: | Dwell |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | Rs232 access control , access control , standalone access |
| Price: |
-
|
| Min. Order: | - |
| Last Online:25 Dec, 2024 |
Product Introduction:

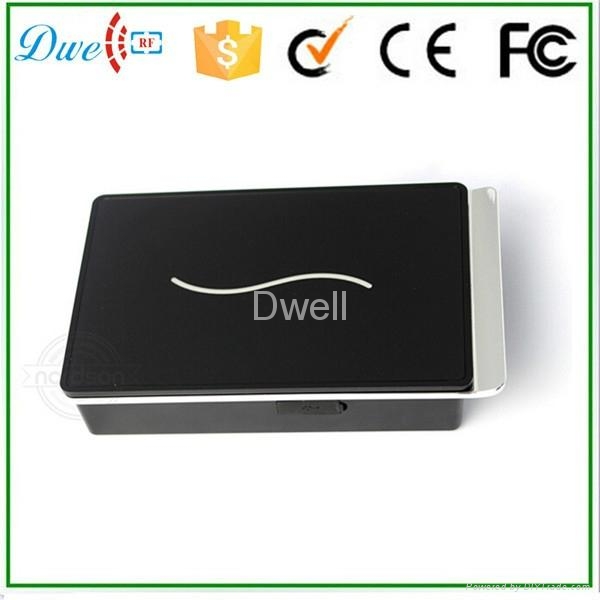

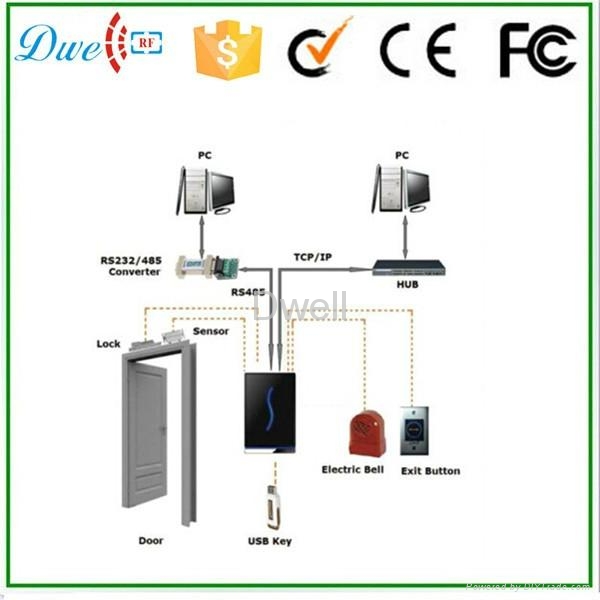

SCR100 is an access control devices without LCD and Keypad which enhance the functions of waterproof and dustproof. It is made with elegant design and professional surface treatment. The devices have lock control, alarm, exit button, door sensor. The wiegand in interface is used to connect external reader to construct master and slave system. Also the device can connect to Access Control Panel as a reader by wiegand-out interface. It's suitable for house, small office and factory etc.
Features:
· Elegant design with Acrylic plastic
· Revolutionary products in industry with TCP/IP interface, avoid RS485 communication and low speed for transferring data, standalone or network deployment
· Protect the data with encrypted technology
· Professional access control function: 50 time zones, 5 groups, 10 open door combination, support multi users entry
· Built-in relay contacts lock, alarm, door sensor & exit button
· Wiegand input&output enable Master/Slaver access control
· Embedded webserver: support browser to inquire access data at local or remote
· No LCD and no keypad enhance the functions of waterproof and dustproof
Technical Specification:
|
Product Parameter |
Parameter Description |
|
Card Holders |
30,000 cards |
|
Transaction Capacity |
50,000 events |
|
Read Range |
5-10 cm |
|
Reading Time (Card) |
<30mS |
|
Platform |
ZEM500 (Embedded Linux O/S) |
|
Communication |
RS232/484,TCP/IP |
|
Built-in |
Relay for Door Sensor, alarm, EM-Strike / Magnetic lock, exit button |
|
Wiegand |
26 bit Wiegand Input/Output |
|
LED Indicator |
3 Color LED Indicators(Blue ,Red and Green) with audible beep |
|
Blue |
Normal standby mode. |
|
Red |
Access denied. |
|
Green |
Access granted |
|
Optional functions |
MF card,Web server, Anti-pass back |
|
Power Supply |
12V DC 3A |
|
Operating Temperature |
0°C-45°C |
|
Operating Humidity |
20%-80% |
|
Dimension |
153x95.5x35.5mm |
|
Net Weight |
0.8kg |
