| Model: | XHY-050100P60 |
|---|---|
| Brand: | XHY |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Mobile Phone & Accessories / Mobile Phone Accessories |
| Label: | USB power charger , USB adapter , US usb adapter |
| Price: |
US $1.15
/ pc
|
| Min. Order: | 3000 pc |
| Last Online:24 Feb, 2016 |

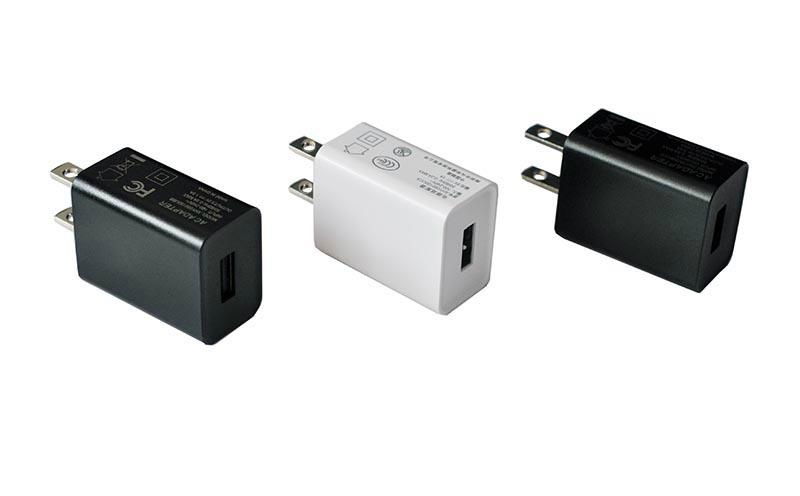

Xhy 5W P60 case power adapter/power supply is widely used for all kinds of consumer electronics
Such as Digital Photo Frame, MID/tablet PC, surveillance cameras, Money/currency detector and so on
Common model:
5V (0.1A--2.5A) power adapter/charger/power supply with UK, EU, Korea, US, Aus, Japan, China plug commonly used for Digital Photo Frame, MID/tablet PC, surveillance cameras, Money/currency detector and so on
GS CE BS cUL UL CCC PSE SAA KC FCC C-tick VCCI REACH 6P certified
Efficiency level VI
Available color: white, black case
with USB
Date sheet
|
5W USB wall power adapter |
P60 case(P17) |
|
1,AC input voltage range: |
90-265VAC |
|
2,input frequency range: |
47-63Hz |
|
3,Max. input current: |
0.3A |
|
4,Out put voltage adjust range: |
5-9V |
|
5,Output current: |
0.1A-2.5A |
|
6,Output Power: |
5 W |
|
7,Energy Efficiency: |
>75%（typical） |
|
8,Line Regulation(Full Load): |
≤5% |
|
9,Load Regulation: |
≤5% |
|
10,Ripple and Noise: |
≤100mV。 |
|
11,Hold-up Time: |
20ms（220VAC，typical） |
|
12,Rise time: |
50ms full load（typical） |
|
13,Temperature Coefficient: |
<±0.03%/℃ |
|
14,Output voltage ajust range: |
±10%（main path） |
|
15,output overload protection: |
105%-250% shut down and restart |
|
16,output overvoltage protection: |
115%-150% shut down and restart |
|
17,Withstand voltage: |
input-output 3KVAC/min,input-outside case3KVAC/min |
|
18,Insulation Resistance : |
≥100MΩ（500VDC） |
|
19,Operation temperature: |
0-45℃ |
|
20,safety standard: |
comply with GB4943-2011，UL60950，EN60950，EN60065,GS,UL,CB,CE，CCC .etc safety standards. |
|
21,EMC standard: |
comply with GB17625,EN55022 CLASS B，FCC Part 15,EN61000 |
|
22,Life time: |
can work below45℃，full load working time over one year.。 |
|
23,Cooling method: |
convection |
|
24,case dimension: |
40*31*21mm |
|
Plug type |
EU plug / AU plug / US plug |
| Payment Terms: | TT/LC/DP/DA/paypal |
|---|---|
