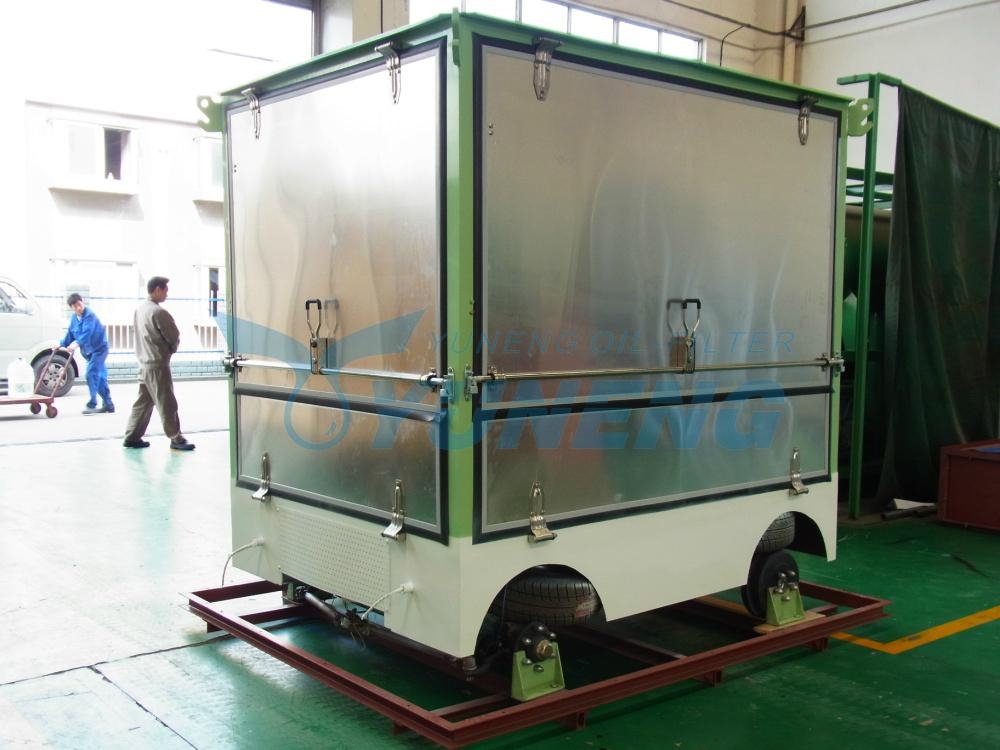

Portable Transformer Oil Centrifuge Machine

Suitable for high voltage project between 110-500KV





Portable Transformer Oil Centrifuge Machine Product Description

Portable Transformer Oil Centrifuge Machine designed to remove contaminants(particulate,water,gasses,etc.).

Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolvedgases and particles that accumulate as the oil ages. Evensome new oils may require treatmentto limit these contents to acceptable levels.

We are a designing, engineering and manufacturing company capable of application customization for best solutions.



Portable Transformer Oil Centrifuge Machine

PERFORMANCE:



Water Removal: Overall Water Content ≤5 PPM by removing free, emulsified, and dissolved water.



Particulate Removal: Particle counts as low as 1 micron.



Entrained Air and Gas Removal ≤ 0.3%



Acid Removal: can be equipped with fullers earth towers to neutralize acid and Lower TAN to < 0.03 KOH/g



Dielectric Strength :≥70 kV per ASTM 877



Portable Transformer Oil Centrifuge Machine
Features:



1. Two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well.  (Patent no. ZL200420061085.6).



2. The combination of axial fan and condenser make vapor from vacuum pump and roots pump into water, it can prolong time to change vacuum oil while meet emission standard.



3. Multiple Filter Housings With Cartridge Style Filter Elements, big filtering area to hold more particles.



4. Control system: IEC standard with each wire marked. tri-unity control to avoid wrong operation as lack-phase, wrong phase and overload.



5. Oil level in vacuum tank is controlled by photoelectric switch, which is flexible and accurate. No oil-spraying. (Patent no.: ZL200420060973.6).



Portable Transformer Oil Centrifuge Machine
Parameters:



Item	Parameter		Unit	ZJA1.8KY	ZJA3KY	ZJA6KY	ZJA9KY	ZJA12KY	ZJA18KY
Technical parameter	Flow Rate		L/H	1800	3000	6000	9000	12000	18000
	Working Vacuity		Pa	≤80
	Working pressure		Mpa	≤0.35
	Temperature Range			45-65
	Power Supply			50Hz    380V    3-Phase 4-Wire
	Total Power		KW	18+2.25	30+6	2X30+6.6	3X30+8.2	4X30+10	5X30+16.5
	Inlet/Outlet Diameter		mm	32 / 25	38 / 32	44 / 38	48 / 44	64 / 48	76 / 64
	Size	Length	mm	1200	1500	1870	1930	2160	2250
		Width	mm	950	1150	1250	1400	1600	1750
		Height	mm	1600	2000	2200	2460	2650	2650
	Weight		Kg	650	900	1200	1600	2200	3000
Oil treatment index	Breakdown Voltage		KV	70-75
	Water Content		ppm	3~5
	Gas Content		%	≤0.2
	Filtration accuracy		µm	≤1~3



Company Information



Founded in 1997, our company Yuneng has been specialized in designing and manufacturing a series of oil purifier for nearly 20 years, such as transformer oil purifier, air pumping unit, dry air generator, turbine oil purifier, lubricating oil purifier, fire-resistance oil purifier, (EHC oil) , waste oil regeneration machine and etc. The proud history makes Yuneng top supplier in oil purification field in China.



We are also the supplier of the Big Transformer Company TBEA in India, hope we could also be your supplier in the near future.

If you are interested in our products, please get back to me for more details.Thank you.

Portable Transformer Oil Centrifuge Machine

Deb ing at sight



After-Sales Service



One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.

Customized solutions

At YUNENG we don't just sell what we have in stock; we create solutions to meet our customers' technical, financial and scheduling needs.



Call or email us will find the best fit for you.

Consumable Material & After-sales Service

We take full advantage of our years of experience (since 1997) in oil filtration filed to supply reliable machine. Special engineered design features, top-quality components and workmanship ensure years of maintenance-free operation and performance.

Usually the only consumable material of the machine is the filter elements. All other parts or elements seldom have problem because of high and stable quality.

We will send engineers to your city for after sales service within 2 weeks after machine arrived at your site.

If any problem, we will supply replacing parts or send engineer to your site (free within warranty period, charge reasonably beyond warranty period).



Contact us for more information as (pumps, heater, filter elements, PLC, flow meter, digital vacuum gauge, VFD….)

Available option:

3 stages-vacuum pumps are available if higher requirement.



Inline Digital Particle Monitor



Inline Digital Moisture Indicator



Fullers Earth Towers for Acid Removal



Explosion Proof Components



Open Flatbed or Enclosed Trailer





FAQ



1. Installation service:

There are three ways for arranging installation.

1). The customers can install the machine by themselves. We'll do the deb ing on site before shipment and attach the detailed operation manual with the machine,so normally the installation is done by the customers.

2) You can come to our factory before shipment. On the one side, you can inspect the machine before shipping; On the other side, you can receive a free training course at our factory.

3) If you need us to send our engineer to service oversea, please contact us for more details.



2. Certificates



CE,ISO,SGS

3. Contact information

We supply wide range of oil recycling machines. If you have any requirements about used oil recycling machine, please let me know any time.My skype id is vivi.zhuang2



Yuneng products list:



1. Insulation Oil filtration machine:

ZJA Portable Transformer Oil Centrifuge Machine
 (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)



ZJA Portable Transformer Oil Centrifuge Machine
 (110KV-500KV project)) (2 stage vacuum)



ZJB Portable Transformer Oil Centrifuge Machine
 (≤110KV) (one stage vacuum)



ZJ Vacuum Pumping machine (extract vacuum, dry transformer)



GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).



JZ OLTC (on-load tap changer) online Oil filtration machine



Quantitative oil injection machine (customized product)



2. Turbine Oil filtration machine:

JT coalescing dehydration oil filtration machine (dehydration by special filters)



DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)



ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)



3. Lubricating Oil filtration machine:

ZJC-R vacuum Oil filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)



ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)



4. Other kinds of oil filtration machine:

KYJ fire-resistance oil filtration machine (EHC oil)



LY plate-frame pressure oil filtration machine (simple, paper filtration)



YL mobile oil filtration machine (simple, cheap)



5. Waste oil regeneration machine (by chemicals or by high temperature distillation)

YNZSY used oil filtration machine (by chemicals)



YNZSY-LTY used tire oil filtration machine (by chemicals)



Waste oil distillation machine



6. Oil tester/ analyzer:

Dielectric oil breakdown strength tester



Water content tester



Inline Digital Flow Meter and Totalizer



Viscosity analyzer



Flash point analyzer (close cup)



Flash point analyzer (open cup)



Interfacial tension analyzer



Gas chromatograph
