| Model: | PFL-50A |
|---|---|
| Brand: | PFL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | date printing machin , round bottle machine , bottle labeling |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:28 Feb, 2017 |
Features:

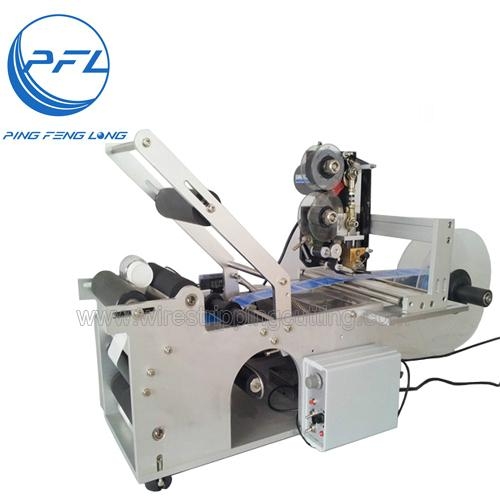

Semi Automatic round bottle labeling machine and code printing machine
1. Applicable scope, can meet 10-120 mm diameter range of cylindrical considerate scale
2. High accuracy of labeling, the acuities of label head to tail connect local just reache + / - 0.5 mm
3. The clever extrusion type device feeding, just need to place the pieces,it can automatically labeling
4. The jockey for position type adjustment, different workpiece labels switching simple
5. Adopt the synchronous belt traction, mechanical stability is greatly improved
6. Desktop design, the structure is simplified, appearance compact, powerful
7. Using the anodic oxidation of aluminium alloy stents and advanced computer white box, the beauty is generous
8. Using advanced electric eye, the object, the label high detection sensitivity.
9.Labeling and printing combined in one machine,it can print the production date,batch number,valid time and other words on each label accuratlly,and then label it on the round bottle.
Apply for:
Widely used in different kinds of industries.Food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries.
Specification:
| Round bottle Labeling part: | ||
| Available Bottle Diameter: | 10 ~ 120mm(Customized) | |
| Minimum Label Length: | 10mm | |
| Feeding Speed: | 3 ~ 15m/min | |
| Max.OD of roll: | 250mm | |
| Min.ID of roll: | 76mm | |
| Operation: | Semi automatic | |
| Accuracy: | ±0.5mm | |
| Label printing part: | ||
| Printing Area: | Single line: max. 4×35 app. 15 pcs of type
Double line: max. 8×35 app. 30 pcs of type Third line: max.12×35 app. 45 pcs of type |
|
| Speed: | 10-260times/min, stepless speed adjustment | |
| PrintingType: | Arabic numbers, English letters,Chinese characters | |
| Hot Stamp ribbon: | Standard width 35mm, length 100mm, coil diameter Φ25.4mm, color selectable | |
| Total Power Supply: | AC220V/50Hz; 110V/60Hz | |
| Total Measurement: | 540*350*460mm | |
| Total Weight: | 35Kg | |
If anything I can do for you,please contact me any time!
