| Model: | Ares |
|---|---|
| Brand: | Kinzon |
| Origin: | Made In China |
| Category: | Construction & Decoration / Window / Metal Window |
| Label: | prefabricated doors , aluminum doors , doors and windows |
| Price: |
US $40
/ METER
|
| Min. Order: | 600 METER |
| Last Online:28 Mar, 2016 |
Design promotional prefabricated aluminum doors and windows
You Need a Service
Product Description
prefabricated aluminum doors and windows is the 2016 new style aluminum sliding windows with best sealing.
Five special precision for prefabricated aluminum doors and windows
1) Ultra high strength to avoid deformation
Using 6063T5, the product strength is very good, it can stand high wind pressure. Resistance to wind pressure test of the actual result: P = 5000 (pa)
2) Reasonable structure without air leakage
Combined the profiles with better airtight strip, the window is tight and without air leakage. Air tightness test result: q=0.8/m³ (m.h)
3) Specialdrainage without leakage
The unique principle of isobaric cavity design security under the storm doesn’t appear ponding, leakage phenomenon either. Water tightness test result: q=0.8/m³ (m.h)
4) Quiet and comfortable
Ingenious structure and sound insulation hermetic design, indoor quiet. Double glass insulation actual test result: 33 db/RW = 500 hz
5) Push and pull smoothly
Using the high quality roller that can stand 45kg, and pulley used POM material, which has higher strength and abrasion resistance that make it easy and smooth to slid windows. The pulley under 100000 times detection are without damage.

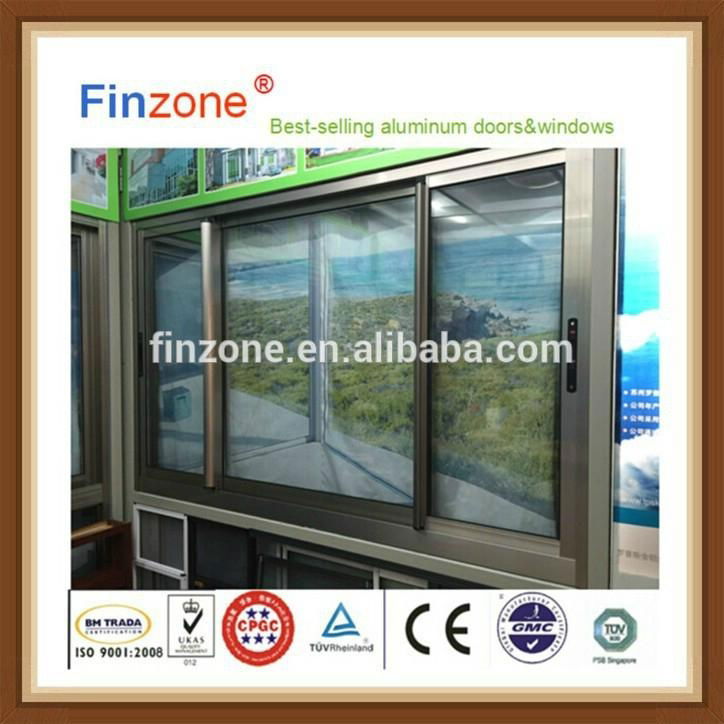

Product Photos for prefabricated aluminum doors and windows
Structure drawing for prefabricated aluminum doors and windows
Sound insulation for prefabricated aluminum doors and windows
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for prefabricated aluminum doors and windows
Ares aluminum sliding window can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for aluminum sliding window |
| 121 km/h | Hurricane | 700 Pa | 1.85m |
| 112 km/h | Violent storm | 600 Pa | 2m |
| 102 km/h | Storm | 500 Pa | 2.2m |
|
79 km/h |
Severe gale |
300 Pa |
2.5m |
Aluminum doors and windows style
Glass choice for prefabricated aluminum doors and windows
Color choice for prefabricated aluminum doors and windows
Company Information
Customers coming for prefabricated aluminum doors and windows
Exhibitions for prefabricated aluminum doors and windows
Application
Users' projects for prefabricated aluminum doors and windows
Effective Factory for prefabricated aluminum doors and windows
Packaging & Shipping
Our Package for prefabricated aluminum doors and windows
Certifications
Certificates for prefabricated aluminum doors and windows
Contact Information
prefabricated aluminum windows and
| Payment Terms: | TT/LC |
|---|---|
