| Model: | LA-13FS |
|---|---|
| Brand: | LY SCREEN |
| Origin: | Made In China |
| Category: | Textile & Leather / Fabrics / Knitting Fabrics |
| Label: | greenhouse shade net , Alumnium Plastic Net , Greenhouse Cooling |
| Price: |
US $0.76
/ Sqm
|
| Min. Order: | 1000 Sqm |
| Last Online:16 Sep, 2022 |
Greenhouse Cooling Alumnium Plastic Net
| Name: | LA-13FS |
| Application: | Greenhouse outside shading |
| System: | Sliding, Hanging |

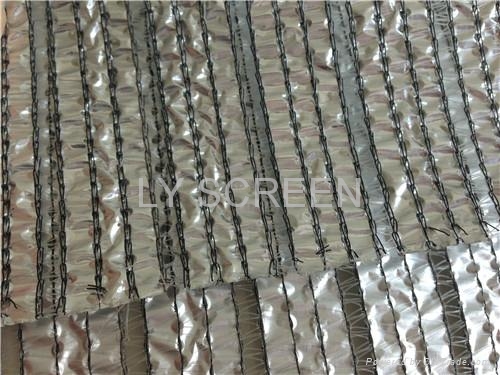

| Material: | 13% alum. film, 18% pet film, 69% pe yarn |
| Pattern: | 3+1 (3 white diffuse+1 empty) |
| Width of Strip: | 3.84MM |
| Fire Retardant: | No |
| Weight per m2: | 136g/m2 |
| Shading Rate: | 75% |
| Tensile Strength(n): | Warp: 239 Weft: 425 |
| Shrinkage Rate: | ≤1.5% Test by 70℃/2h≤1.5% |
| Heat Treatment: | Yes |
| Enhancement Tech.: | Yes |
| Thermal Screen Outside Shading( Outside Open Type) | |
| Type: | LA-13FS |
| Shading Rate: | 75% |
| Main Material: | Aluminum film, Pet film, Pe yarn. |
| Addictive: | UV. Drip proof stabilizer, Light stabilizer. |
| Color: | Silver |
| Width of Screen: | General Width, 3.2M, 3.5M, 4.3M, 4.8M, 5.3M. Widest 5.5M, other width can be jointed by two pieces or mass production. |
| Length of Screen: | According to customer’s request, general width is 70M/Roll, 100M/roll, 200M/Roll, 210M/Roll. |
| Shrinkage rate: | ≤1.5% |
| Function: | Sunshine shading and reflection; energy saving; sunshine ratio controlled. |
| Characteristics: | Sunshine shading in summer; water saving, energy saving in winter, anti-wind, anti-rain, anti-hail in rain season; anti-drip below the screen; also protect and decrease frost on the surface of the plants to enable them have a good grow environment. |
| Warranty: | Warranty five (3) years under all types of greenhouse outside using covering, see our limited warranty for all terms, conditions. |
| Usage: | This products can be installed in all kinds of modernize greenhouse. |
| Application: | Outside of greenhouse use, turn by gear or pet supporting wire. (Sliding and Hanging). |

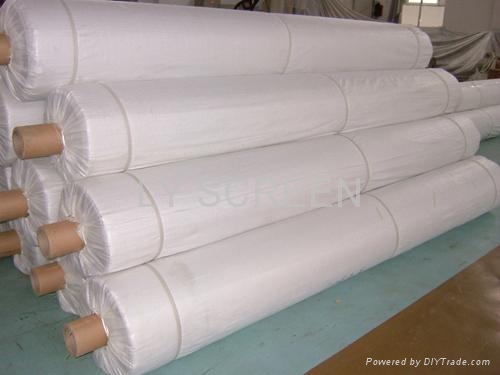

| Packing: | Circled on round cardboard or steel tube, wrapped in water proof plastic film, wrapped by strong colorful p woven film and stick weather proof labels, then into container. |
| Shipment: | The package surface should be clean and no damage, avoid to heave pressure and sunshine also rain, and sharp objectives, etc. |
| Storage: | The storage place must be shady and cool, ventilation, drying also avoid heat source. |
Welcome to know more about us through following access, Brand of LY SCREEN-Hebei Lauren Agriculture Technology Co., Ltd)
Skype: juebanshandi
Email: info(at)lauren-agriculture.com
Tel: 0086-18910431517(in 7*24hour)
How do Thermal Screens/Climate Screens/Energy Saving Screen/Aluminet/Greenhouse Shade Curtains Work?

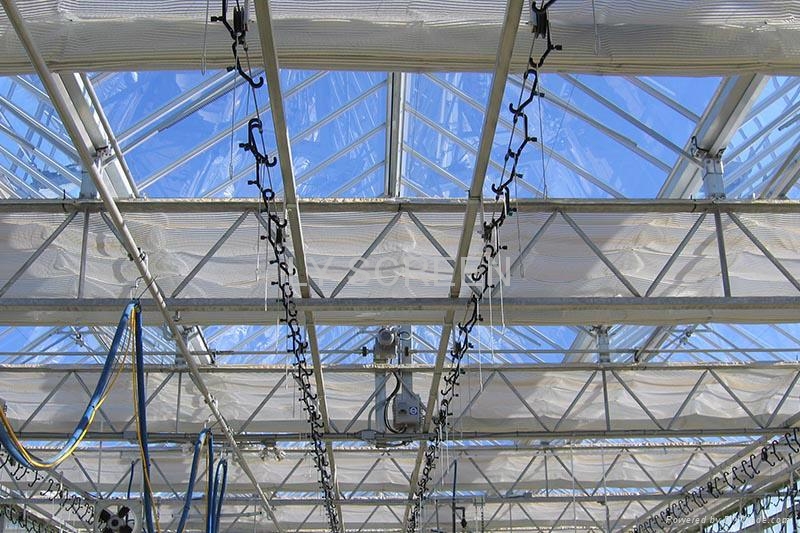

Reflect light when it is excessive: CHINA is one of the hottest, driest countries in the world. While this is great in winter, summer heat is a big problem. High temperatures are caused by excessive light getting into the greenhouse. Our Thermal Screens are made of polished aluminum strips, which reflect light straight back out of the greenhouse.
Retract when light is limiting: On cloudy days or in the mornings and afternoons, light becomes limited and plant growth slows down. So LY SCREEN Thermal Screens retract automatically in order to maximum growth.
Reduce heat loss at night: The screens are automatically closed at dusk in order to trap as much heat as possible for the night. This means that heating costs are greatly reduced by 20 to 70%.
Reduce condensation on leaves and fruit: The screens keep the crop warmer, reducing the possibility of condensation forming and leading to fungal disease. LY SCREEN Thermal Screens are made from aluminum and polyester, which are excellent insulators. Aluminum reflects long weave radiation from the crop back down to the crop, and polyester absorbs long wave radiation and provides a warm ‘blanket’ above the crop, reducing radiation heat loss. With gas and energy prices still rising, can you afford not to save even 20%? By reducing the amount of energy you consume, you will also be doing your part to reduce global warming, too.
Increase production & quality, decrease costs, increase profit: With a lifespan of 5 to 8 years, LY SCREEN Thermal Screens give you a phenomenal return on investment.
How to choose the right type of Thermal Screen/Climate Screens/Energy Saving Screen/Aluminet/Greenhouse shade curtains?
If you want maximum cooling for your crop, choose the Open Weave Thermal Screens. Most greenhouses these days are designed with good natural roof ventilation. If you are growing in a hot summer environment (most of CHINA), you need Open Weave Screens. these screens have gaps between the aluminum strips that allow warm air to rise through them, while they also reflect unwanted light back out of the greenhouse. These screens still give significant energy savings of up to 30%.
If you want maximum energy savings as well as shade, choose the Closed Weave Thermal Screens. If you are growing in a cooler climate and have high heating costs or if you need to modify the day length, you need Closed Weave Screens, these screens have a clear plastic strip between the aluminum strips that helps trap heat, while the aluminum strips reflect unwanted light back out of the greenhouse. These screens give very high energy savings of up to 70%.
Blackout screens are used to shorten or lengthen the day for flowers like Chrysanthemum and other crops.
LY SCREEN Core Technology of Thermal Screen
1. Heat treatment, Shrinkage rate less than1.5%, Strengthen technology in closed weave, Enhanced composite non aluminum stain.
2. Addictives: U.V, Drip proof stabilizer, light stabilizer.
3. Adopt all raw materials by PET not PVC and PE, which can ensure the good property for the long using life of the screen.
