13 Multi-function and multi-channel display alarm control cabinet

Model:-
Brand:HuaFan QinLu
Origin:Made In China
Category:Security & Protection / Alarm
Label:gas detector , alarm , security
Price: US $419.32 / pc
Min. Order:10 pc
Inquire Now

Member Information

Detail

Xi'an HuaFan Instrument Co.,Ltd

Free MemberShaan Xi - China
Last Online:12 Oct, 2018

Product Description

More products, please pay attention to our official website:

http://www.huafansmart.com/instruments-and-apparatuses/

Buy click:

https://www.amazon.com/dp/B01IP1IEJO?m=A3ROYT5KW9S5QS&ref_=v_sp_widget_detail_page

Basic parameters
Size:480 mm * 250 mm * 130 mm
Weight: about 6 kg
Working voltage: AC220V 50 hz
Output voltage: DC24V
Channel number: 4, 6, 8 road

Display mode: multiplex highlight digital tube display directly
Signal input: 1-8 standard 4-20 ma current loop road input,

support two wire and three-wire system all sorts of transmitter

Response time: 8 seconds or less
Signal output: (optional) 1-8 standard 4-20 ma current loop output,

          and with input signal one to one

Communication interface:
(optional) 1 road RS232 and RS485 digital bus interface,
Standard Modbus RTU protocol or non-standard,

can connect the computer monitor

Control   output:1-8 standard  relay output,with input signal one to one, 1 standard  public relay output,  whichever  alarm,the relay will be off.

Meansurement  range:0-9999(can  be  set  numerical)

Alarm way : first alarm more than 90 db alarm way;

 second alarm more than 120 db
Temperature range: - 10 ℃ to 50 ℃
Humidity:15% ~ 70% RH (No condensation)
System power: < 50 w (8 road with no alarm)
Executionstandard: the combustible gas alarm controller GB16808-1997 technical requirements and test methods,
Installation method: wall-mounted installation




Product Image

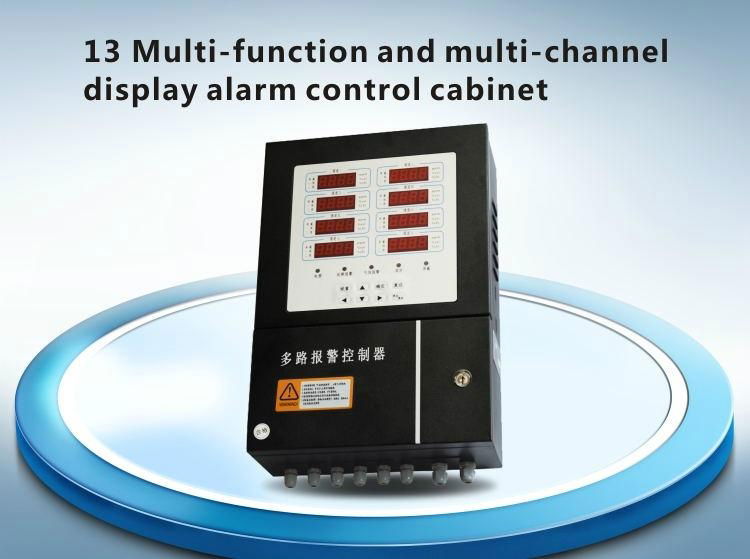

13 Multi-function and multi-channel display alarm control cabinet 1
Img 1
