| Model: | LED Arrow Board |
|---|---|
| Brand: | nseled |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | Taxi Top LED Display , Bus LED Display , Portable LED Sign |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:29 Oct, 2022 |

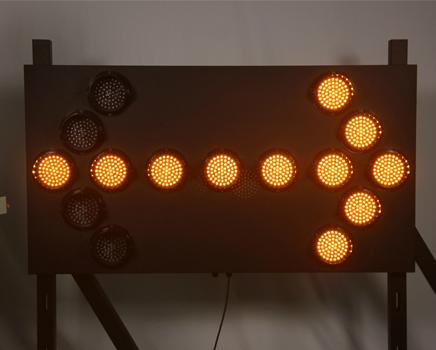

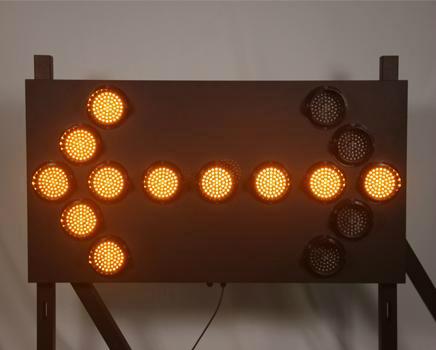

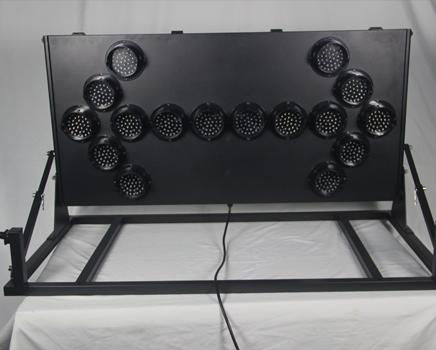

VA Series LED Arrow Board Portable LED Sign Supplier
100mm Visor 125mm Visor British Stanard High Intensity Amber LEDs
Features
Cost effective
Adopt high brightness LED Lamp, our LED arrow sign is designed to be used for different traffic management.
Various Flash Patterns
We supply 10 different flash patterns.
Easy control on the panel
Wide Application Field
Fixed Installation
Vehicle Mounted ( With Linear Actuator)
Trailer Mounted
High Reliability
High Quality LEDs Used
IP65 Grade
12V/24V power input with Power
Proection Unit
Easy Maintenance
Smart Design
Easy replacement of cluster and control unit
inside.
Specification of NSE LED Arrow Board
|
Model Type |
VA1400-750 |
VA1400-750F |
VA1200-600 |
VA1200-600F |
|
LED Type |
5mm Round |
5mm Round |
5mm Round |
5mm Round |
|
Color |
Amber, 590nm—592nm |
Amber, 590nm—592nm |
Amber, 590nm—592nm |
Amber, 590nm—592nm |
|
Cluster Diameter |
125 mm |
125 mm |
100 mm |
100 mm |
|
Frame Size |
1400mm(L)x750mm(H) x30mm (W) |
1400mm(L)x750mm(H) x30mm (W) |
1200mm(L)x600mm(H) X30mm (W) |
1200mm(L)x600mm(H) X30mm (W) |
|
Frame Materials |
mild steel |
mild steel |
mild steel |
mild steel |
|
Installation Type |
Fixed Installation/ Vehicle- mounted |
Foldable / Vehicle- Mounted |
Fixed Installation/ Vehicle-mounted |
Foldable / Vehicle- Mounted |
|
Cluster Quantity |
15 PCS |
15 PCS |
16 PCS |
16 PCS |
|
LEDs Q'typer Cluster |
40 PCS |
40 PCS |
40 PCS |
40 PCS |
|
Brightness |
>=15000 nit |
>=15000 nit |
>=15000 nit |
>=15000 nit |
|
View Angle |
30°(H)/30°(V) |
30°(H)/30°(V) |
30°(H)/30°(V) |
30°(H)/30°(V) |
|
Power Supply Input |
DC12/ DC24V |
DC12/ DC24V |
DC12/ DC24V |
DC12/ DC24V |
|
Max Consumption |
54 w |
54 w |
30 w |
30 w |
|
Average
Consumption |
18 w |
18 w |
15 w |
15 w |
|
Optimal Viewing Distance |
1000 M |
1000 M |
1000 M |
1000 M |
|
Life Span |
100,000 Hours |
100,000 Hours |
100,000 Hours |
100,000 Hours |
|
MTBF |
10,000 Hours |
10,000 Hours |
10,000 Hours |
10,000 Hours |
|
Flashing Patterns |
4-10 Channels |
4-10 Channels |
4-10 Channels |
4-10 Channels |
|
Temperature Operating |
-40°～+75° |
-40°～+75° |
-40°～+75° |
-40°～+75° |
|
Working Humidity |
10%–95%RH |
10%–95%RH |
10%–95%RH |
10%–95%RH |
|
Screen Protection |
Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
Waterproof, rust-proof, dust-proof, anti-static , anti-mildew |
|
Power Protection |
over-current/ over-voltage protection |
over-current/ over-voltage protection |
over-current/ over-voltage protection |
over-current/ over-voltage protection |
|
Panel Weight |
26 kg |
36 kg |
20 kg |
28 kg |
|
Package |
Honeybox /Wooden |
Honeybox /Wooden |
Honeybox /Wooden |
Honeybox /Wooden |
|
Package Dimension |
1500mm(L)X800mm(H) X 60mm(W) |
1500mm(L)X800mm(H) X 60mm(W) |
1300mm(L)X700mm(H) X 60mm(W) |
1300mm(L)X700mm(H) X 60mm(W) |
|
Gross Weight |
30 kg |
42 kg |
23kg |
32 kg |
|
Certificate: |
CE, ROHS, ETL |
CE, ROHS, ETL |
CE, ROHS, ETL |
CE, ROHS, ETL |
