| Model: | - |
|---|---|
| Brand: | Donat Trailer |
| Origin: | Made In Turkey |
| Category: | Transportation / Vehicles / Commemical Vehicles |
| Label: | Fuel Tanker , Gas Tanker , Bitumen Tanker |
| Price: |
US $18000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:30 Apr, 2016 |

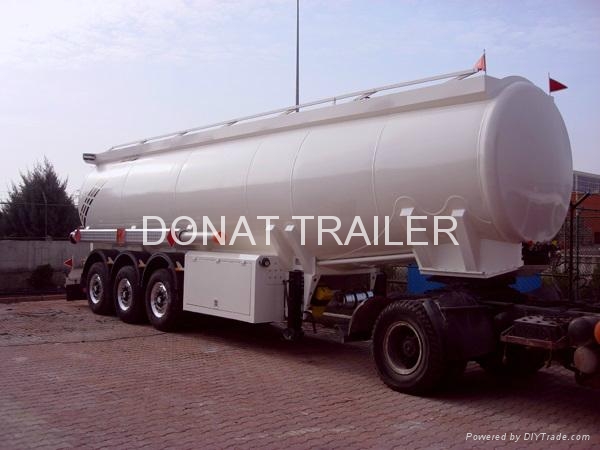

Tanker Semi Trailer
Axles: Each has 12 tones loading capacity, drum brake, air suspension, 3 fixed axle and 3 self-steering axle.
Brake System: Double line air brake system, Knorr-Bremse EBS brake system.
Width: 2750 mm + 350 x 2 mm extending sideway.
Extendable System: Extension from the middle 6.300 mm, locking mechanism at each 1 meter grade.
Ground clearance: 870 mm
Chassis: Made of ST52 steel sheet iron,
Platform: Rhombus-shaped sheet iron and hard wooden floor is applied on wheel and for sides.
King-Pin: 2½” removable king pin and place for 3½” king pin. (JOST Brand)
Landing Legs: Front legs are mechanic lifter, 24 tones loading capacity. (JOST Brand)
Ramp: Back ramps are double-acting hydraulic system. Electrically operated, hydraulic ramp.
Tires: 235 / 75 R 17,5 24+1 units tires and rims
Electric System: 24 V. Electric system in accordance with E.U Standards.
Paint: After sand-blasting, double line epoxy coat and double line paint in requested colour is applied.
Accessories: Tire scotch and holder, 2×11 extension bracket (350 + 350 mm.), side protection, metal sheet front panel (height 600 mm.), aluminium side panels at gooseneck area (height 600 mm.) 2×6 cargo tie-down collars, spare tire holder.
