| Model: | MH-LP251A |
|---|---|
| Brand: | MH |
| Origin: | Made In China |
| Category: | Security & Protection / Other Security & Protection |
| Label: | Heading Reference , Attitude Reference , inertial measurement |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:16 May, 2016 |

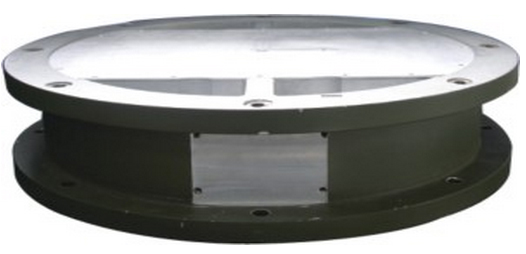

MH-LP251A Compact Attitude and Heading Reference System
MH-LP251A was designed as an integrated inertial navigation system for airborne platform. Featuring a laser gyroscope and a perfect quartz accelerometer and advanced alignment technology on navigation algorithm, LP251A can perform initial alignment and navigation functions in harsh environment. This latest instrument can continuously and real-timely provide with carrier’s position (latitude and longitude), speed, acceleration, attitude and heading, and detailed navigation information according to flight mission.
LP251A MAIN FEATURES AND CAPABILITIES
LP251A is characterized by high precision, small size and high reliability.
This Attitude and Heading Reference System has an ability of alignment on base swaying.
With higher reliability, this advanced device is highly adaptable to varies environment.
MH-LP251A MAIN APPLICATION
LP251A Compact Attitude and Heading Reference System gives best performance at a consumer price and is widely utilized in measuring dynamic attitude and providing attitude information for pods and other platforms.
SYSTEM SPECIFICATIONS
| NO. | ITEM | INDEX | NOTES |
| 1 | Course Deviation | 0.5mil/h | 1σ |
| 2 | Attitude Deviation | 0.2mil/h | 1σ |
| 3 | Operating Temperature | -40°C～60°C | |
| 4 | Impact Force | 30g | |
| 6 | Dimensions | Ф436mmX98mm | Miniaturization Available |
| 6 | Weight | ≦13.5kg | |
| 7 | Power | 18v～36v | |
| 8 | Power Consumption | ≦30w | Selectable |
| 9 | Data Communication | RS422、Ethernet Channel | |
| 10 | Reliability Prediction | ≧1500h | |
| 11 | Data Refresh Rate | 25Hz | |
| 12 | Baud Rate | 115200bps |
