| Model: | CS-4060 |
|---|---|
| Brand: | CS |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | glass laser engraver , bottle laser engrave , cup laser engraving |
| Price: |
US $2100
/ Set
|
| Min. Order: | 1 Set |
| Last Online:15 Dec, 2024 |

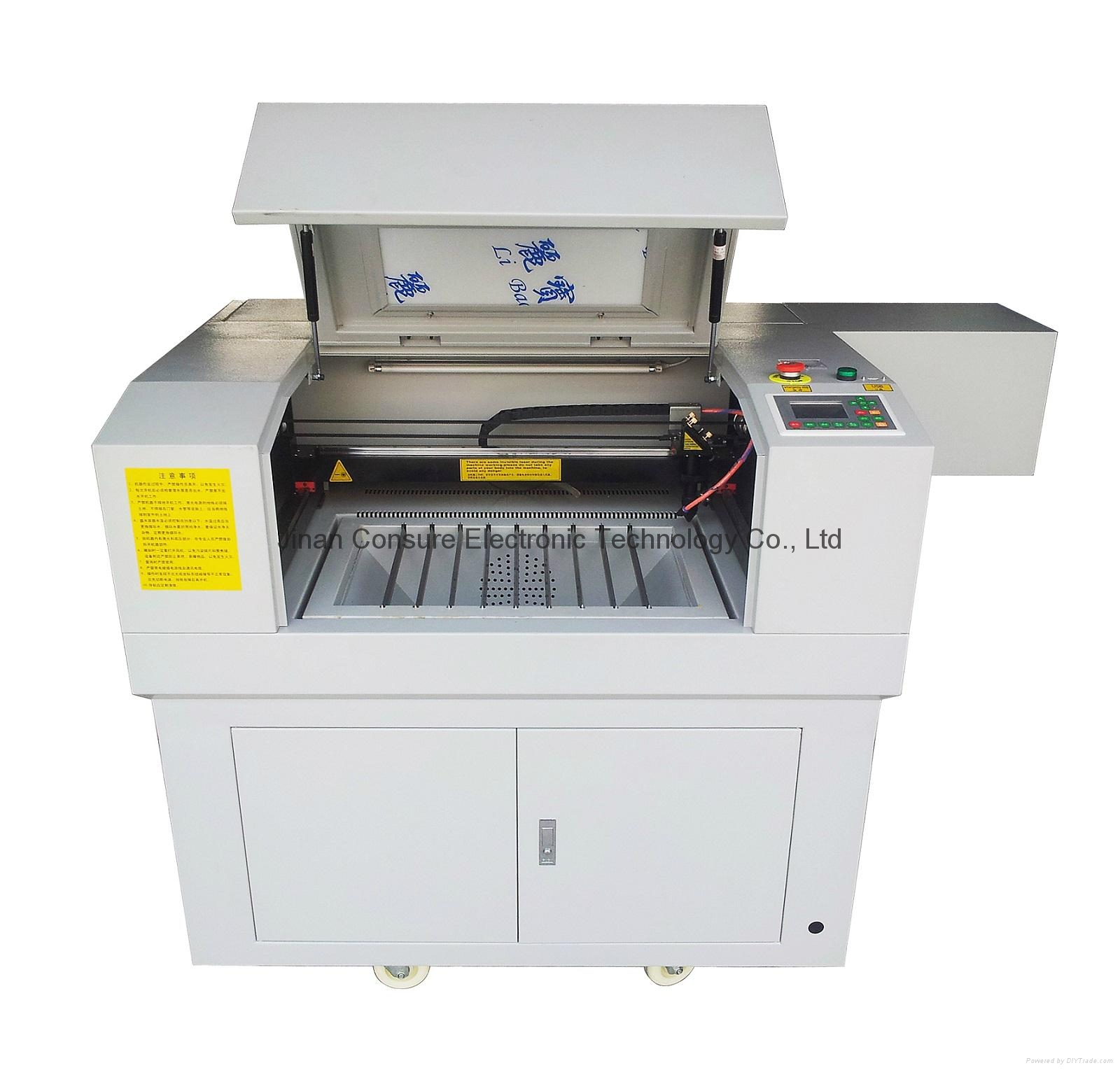

CS-4060 laser wine bottle engraving machine with rotary attachment
Machine videos:
https://youtu.be/gm4QErznpxI
https://youtu.be/DReXhDWz4eY
Related Working Videos:
Fiber laser marking machine training video: https://youtu.be/IV1o_ZgMBuA
How to use Ez cad software: https://youtu.be/pcadamqQnkw
CO2 laser engraving machine user video: https://youtu.be/kskivvwOOcQ
Metal nameplate marking: https://youtu.be/9njHeTynEjo
Photo fiber laser marking: https://youtu.be/Uju9-rYYVgU
Knife fiber laser engraving: https://youtu.be/NI-q1GX45IM
Photo fiber laser marking on ss: https://youtu.be/9WHKoJH3JxQ
Stainless steel white engraving: https://youtu.be/VIXyL-JhnO0
Stainless steel black engraving: https://youtu.be/1MlnlHVQEM0
Color fiber laser marking on ss: https://youtu.be/kbYgwYFB_4M
Desktop fiber laser marking machine: https://youtu.be/wJsM9QCNvig
CS series laser engraving machine can both cut and engrave, thus it is applicable for various industries. The whole machine has stable performance and easy-operation system, coming with professional software. So it can realize high efficiency and good quality processing, effect in various industries.
Product Features:
1. Laser tube: 60W
2. Software: Leetro or RDcam, support output from CorelDraw, AutoCAD directly.
3. Honeycomb table for fabric, leather, engraving and cutting.
Aluminum strip working tablefor acrylic, wood cutting.
Performance:
1. The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2. Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3. LCD control panel in English, convenience of operation control.
4. Import liner bearing with high engraving precision.
5. offline control system which can not only work without computer,but also connect to U disk, USB communication.
6. Imported metal mirrors, with good ability of reflection and focusing, long working life.
7. Red dot position systemrealizes the exact positionwithout laser.
Technical parameters:
|
Machine model |
CS-4060 |
CS-6090 |
CS-1390 |
|||
|
Engraving area |
400x600mm |
600x900mm |
1300x900mm |
|||
|
Laser power |
60W(optional 80w, 100w, 150w) |
|||||
|
Laser output |
1 - 100% software setting |
|||||
|
Laser type |
sealed CO2 laser tube |
|||||
|
Engraving speed |
0~1200mm/s |
|||||
|
Cutting speed |
0~600mm/s |
|||||
|
Resolution(DPI) |
4500DPI |
|||||
|
Resetting positioning accuracy |
＜0.01mm |
|||||
|
Cutting depth |
Acrylic 0-25mm(other depths depend on other materials) |
|||||
|
Minimum shaping character |
1x1mm |
|||||
|
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
|||||
|
Gross power |
1200W |
|||||
|
Software supported |
Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader |
|||||
|
Picture format supported |
PLT/DXF/BMP/AI (Direct output) JPG,GIF,PGN,TIF(Conversion output) |
|||||
|
Engrave Curve surfaces |
Rotary attachment (optional) |
|||||
|
Cooling mode |
water cooling system, industrial chiller |
|||||
|
Maximum Height of Materials to Engrave (mm) |
350mm(motorized up&down table) |
|||||
|
Laser Tube (life hours) |
8,000-10,000 hours |
|||||
|
Driving system |
Stepper motor |
|||||
|
Operating temperature |
0 - 45°C |
|||||
|
Operating humidity |
5 - 95% |
|||||
|
Packing size |
157x127x108cm |
185x138x115cm |
185x142x132cm |
|||
|
Packing weight |
260KGS |
350KGS |
400KGS |
|||
|
Assistant Equipment |
Exhaust blower |
Air compressor 160W |
||||
|
Optional Spare Parts |
Water chiller CW5000 |
Rotary device |
||||
|
Recommended Spare Parts / Consumables |
Laser tube and lens |
|||||
Applicable materials:
Carbon steel, stainless steel, iron, copper, aluminum, galvanized sheets, titanium plates and other non-ferrous metal, etc.
Applicable industries:
Advertising, signs and crafts, machinery, automobile, locomotive, electrical accessories, shipbuilding, petro-chemical, metallurgy, aerospace, boiler and pressure vessel etc.
