Plain screen printing machine

Model:S-5070PV
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:screen printer , silk printer , screen machine
Price: US $4559 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

View all products. (240)

Product Description

Flat electric screen printer for printing plants:

High-precision printing

Adopting advanced mechanical structure and control system, such as high-precision transmission components, advanced sensors and intelligent control system, ensures that the printing accuracy can reach ±0.02mm or even higher, which can meet the production of printed products with extremely high requirements for overprint accuracy, such as electronic circuit boards, optical films, etc.

Wide range of application

It can be used for printing a variety of flat materials, such as paper, plastic film, metal sheet, glass, etc., and can achieve high-quality printing on different materials, providing strong support for printing plants to undertake diversified businesses.

Fast printing speed

The electric drive system is powerful, the printing head moves left and right and the screen moves up and down quickly and steadily, and the number of prints per hour can reach thousands, which effectively improves production efficiency and meets the large-scale production needs of printing plants.

Operation Easy to operate

Equipped with a user-friendly operating interface, such as touch screen control, intuitive buttons and indicator lights, operators can easily set printing parameters and adjust printing modes, reducing the requirements for professional skills of operators and reducing training costs and time.

Strong stability

Key components are made of high-quality materials and precision processing technology, with a solid structure, stable and reliable performance, and a long service life. They can operate stably under long-term and high-intensity production environments, reducing equipment failure rate and maintenance costs, and ensuring the continuity and stability of printing plant production.

Low maintenance cost

The equipment structure is relatively simple, the parts are highly versatile, easy to purchase and replace, and daily maintenance work is mainly cleaning, lubrication and simple component inspection, without the need for professional technicians to perform complex maintenance, reducing the equipment maintenance cost and workload of the printing plant.

S-5070PV Flat screen printing machine with vacuum table //Structure

Location

Vacuum adsorb,

Working table

Vacuum working table, Size: 500*700mm

Actions

Up-down of screen plate

To be printed
  • Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

S-5070PV  Flat screen printing machine with vacuum table //Usage and characters

Guide
  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application
  • The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case

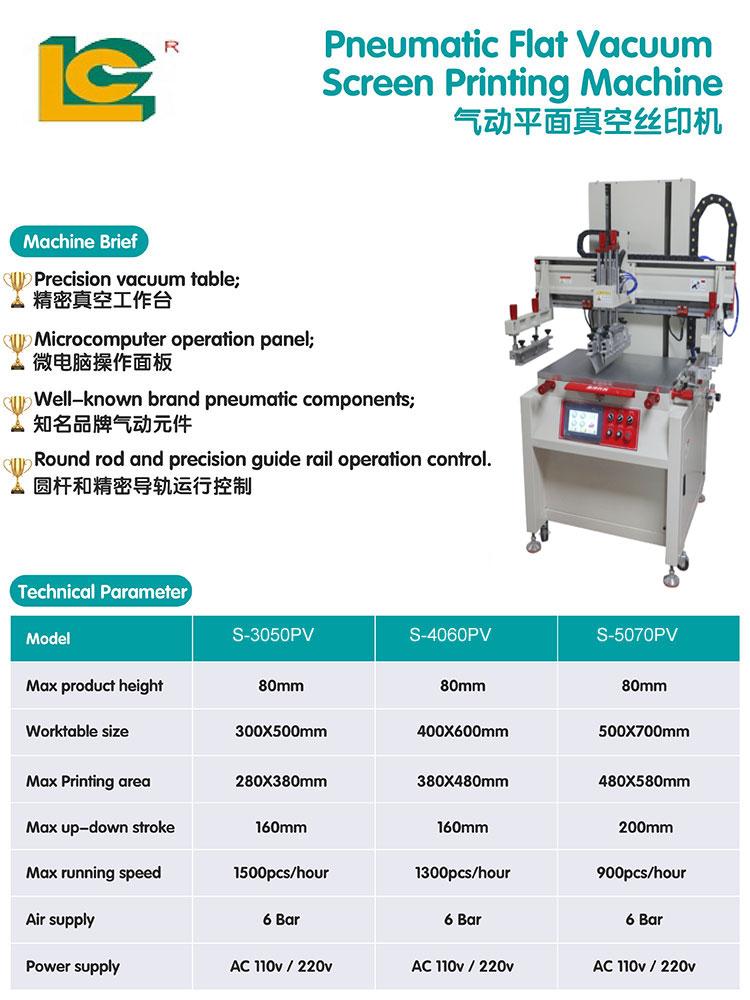

S-5070PV Flat screen printing Machine with vacuum table//Parameters

Technical parameters
  • Printing high：230mm;
  • Air ：105Liter/Min;
  • Working tavble dimension:500×700mm;
  • Max Frame dimension: 700×950mm;
  • Max printing area：450×650mm;
  • Max printing speed：1200PCS/hr ;
  • Max Stroke of up-and-down frame:200mm;
  • Max stroke od Squeegee:700mm。

Works supply
  • 110V-220V Power supply；
  • 5-7Barcompress air；

Package parameters

Wooden case:

  • Package dimension: 1250×960×1810mm
  • Gross weight: 240kg;
  • CBM: 2.1720

H.S.CODE

8443192190

Certificate

CE

S-5070PV Flat screen printing Machine with vacuum table //Advantage

Function
  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Embed HTML Code:

Product Image

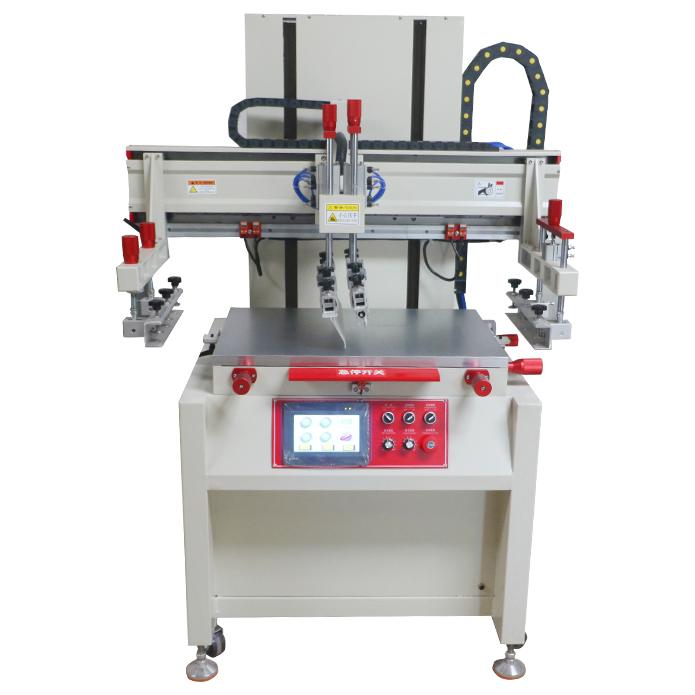

Plain screen printing machine 1
Img 1

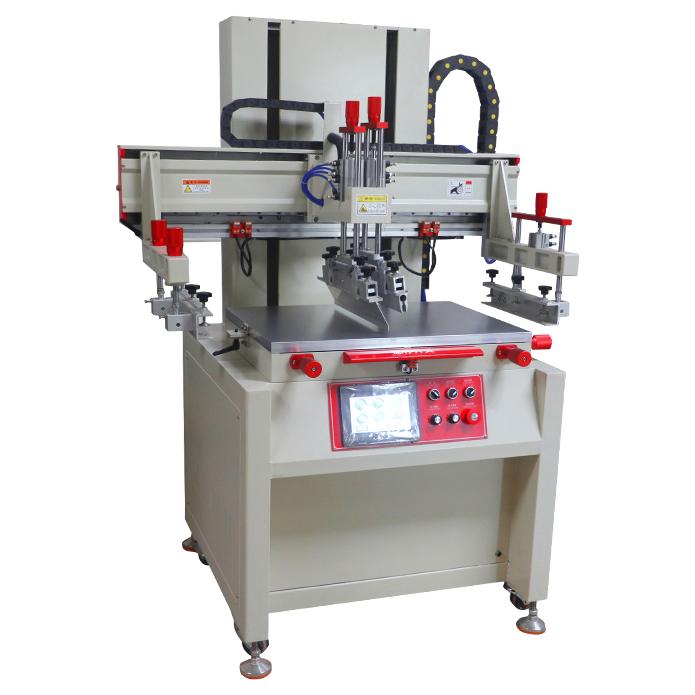

Plain screen printing machine 2
