Swan Neck visualizer digital Visualizer visual presenter Document Camera

ADVANCED TECHNIQUE
1) AF HD camera: 5 mega pixels
2) Auto / manual focus
3) Support loss-less zoom (400x total zoom; 2.5x loss-less, 16x optical, 10x digital)
4) Shooting size at A3 paper size(297*420mm), A4 papers size
5) OSD Menu: Yes

UNIQUE DESIGN

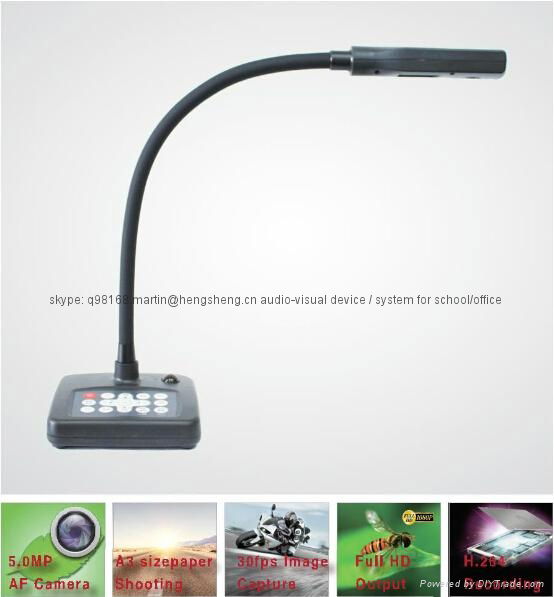

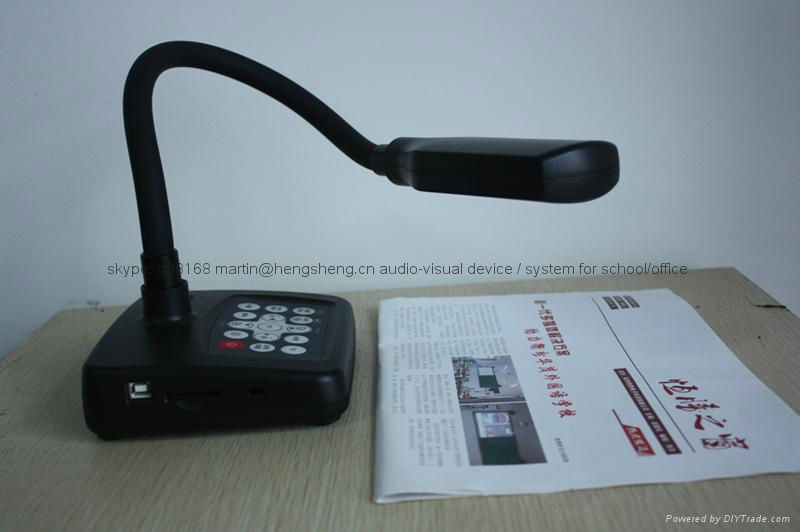

1) Goose neck design and rotatable camera head for easy shooting from any angle
2) Assistant Light: yes(1w LED big angle light compensation design for evenly distributed)
3) Standby VGA-in-use: yes (visualizer standby but VGA signal in-use)
4) Visualizer Standby wake-up:  yes (button-pressing, remoter control wake-up)
5) One Key Switch : Switch to preset status like image enlarge or lessen status(setup needed)
6) One Key Digital Content Interconnection: fast switch between visualizer, saved content and U disc(SD card)
7) Hardware Program Upgrade: support
8) Start Image/LOGO Replacement: support
9) Built-in MIC, Support Local One-Key Record

MAIN FUNCTION
1) Image Adjustment: Brightness, Red color, Blue color
2) Image Function: Negative/positive, freeze, mirror, reduce noise, black & white / color, text enhancement
3) Image Capture: Yes
4) Image Output: 5 mega pixels 2592X1944
5) Image Format: JPEG
6) Record Format: MP4, Video H264, Audio AAC
7) Record Output: 1080P@30fps(Max) H.264
8) USB Output: 2592X1944@15fps/ 1920X1080@30fps

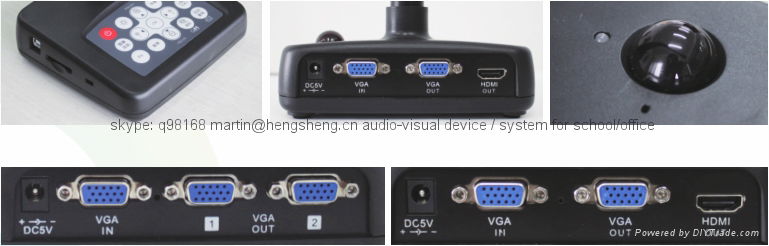

INTERFACE
1) VGA Input: 1 way
2) VGA Output: 2 way(HS6100)/ 1way(HS6200)
3) HDMI Output: 1 way(HS6200)
4) Output Resolution: XGA, SXGA, 720P, 1080P
5) USB2.0: 1 way. Function as USB web camera, U disc and program upgrade
6) SD Card: Support up to 32GB
7) Infrared Control: Yes
8) Security Lock: Yes

OTHERS
1) Power: DC5V
2) Power Consumption: standby 0.2w, operation 4w
3) Base Size: 145X130(mm)
4) Portable and light weight
5) Easy to operate. Press up, down, right, left, OK, return for simple operation

FAQ

1) Q: What is the minimum quantity of an order for your goods?
A: MOQ is 1 piece. It is recommended that you order more quantity to enjoy more discount.

2) Q: What is your payment terms?
A: Payment term: T/T, Western Union, Escrow, etc.

3) Q: How about your after-sales service or value added service?
A: We can provide accessories for free within 12 months.

4) Q: How about the visualizer functions?
A: It provides the functions mentioned above and also more as below.
For example, the drawing function let user to draw line, rectangle, circle, eraser, eraser in a rectangle shape, rotate.
The video recording functions are easy to use. Set the interval time for continuous image capturing.
The OCR functions allows you to recognize the text in photo.
Visualizer software mentioned here only applicable to HS-5000, HS-9000 series. HS-6000 has OSD menu with built-in software and HS-7000 is button operation with built-in software.

5) Q: You have many models . How can I tell the difference? Which one is suitable for me?
A: You may take into consideration of application. Do you need to present dynamic activities like lab illustration? Or just present the text and picture?

We recommend you to choose depending on your needs and product feature.
* DYNAMIC FEATURE
HS-7000 series is suitable for high definition presentation of text and picture. The 220X optical zoom can provide better resolution than 5MP or even 8MP digital camera lens. It also has video / audio input interface for vivid presentation.
HS-6000 series, HS-5000 series & HS-9000 series are suitable for dynamic presentation.
* PORTABILITY
HS-7000 series are not suitable for carrying along. It is a desktop type. HS-5000 series is the most lightweight design.
For fixed place presentation, we also have wall mount type HS-9000 series for you.
* VOICE & VIDEO RECORDING
Our products like HS-5000, HS-6000, & HS-9000 are available with this function.

* INTERFACE

Dual USB interface is available for HS-5000. HS-5000 also has option for USB & VGA output.

Dual interface of VGA lets your visualiser stay connected with both projector and computer. HS-6000 is the choice. HS-6000 also has option for VGA & HDMI output.

HS-7000 series are versatile for its interface selections.

USB connection usually meets most of presentation needs. Just check with us for your specific needs.

* TOUCH DIMMER LED LIGHT
HS-5000 series are unique design that give convenience to user’s hand and presenting activities.
* DUAL CAMERA DESIGN
With the help of an extra camera, HS-5000 may provide a more way of viewing if you are presenting a 3-D real object instead of text or photo. Audience may enjoy from perspective view! That is why we call it visual presenter!
