| Model: | JW4108 |
|---|---|
| Brand: | Joinwit |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | fusion splicer , joinwit |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:13 Oct, 2017 |

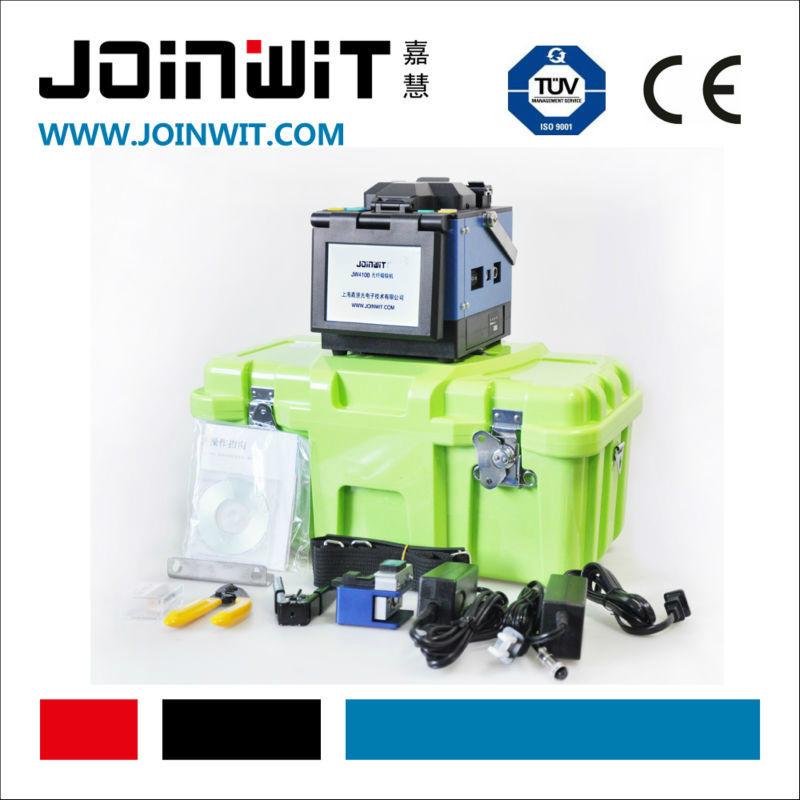

JW4108 Mini Fusion Splicer
Features:
l 5 inches high Resolution colorful LCD display
l Average splice time: 10 second
l Average tube-heat time: 30 second
l Lithium battery: up to 180 times of continuous splice and heat
l Simultaneous X and Y views with 180 times magnification
l New developed technology providing wind and dust resistance
l Splicing mode:Auto & Manual & Full-Automation
l USB Port
l Storing 6,000 groups of splice results.
l Multipurpose optical fiber fixture
Specifications:
|
Applicable Fibers |
SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥60dB |
|
Tension Test |
2.0N(200gf)(Standard) |
|
Splicing Program |
50 groups |
|
Protection Sleeve Length |
20mm, 40mm, 60mm |
|
Language |
Chinese, English |
|
Environmental Conditions |
-10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
|
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
|
Dimensions |
155(W)*165(D)*150(H) |
|
Weight |
2.5kg
|
| Payment Terms: | TT |
|---|---|
