Model: | LC-PM1-100 |
---|---|
Brand: | LC |
Origin: | Made In China |
Category: | Industrial Supplies / Rubber & Plastics Machine |
Label: | tampografia de , china PRITNER , pad printing machin |
Price: |
-
|
Min. Order: | 1 set |
Last Online:25 Dec, 2024 |
Feature

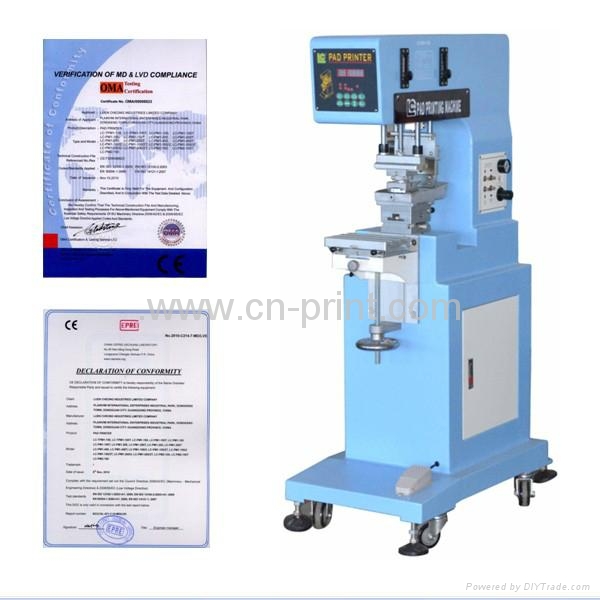

LC-PM1-100 Single color pad printer it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware
Parts.
1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.

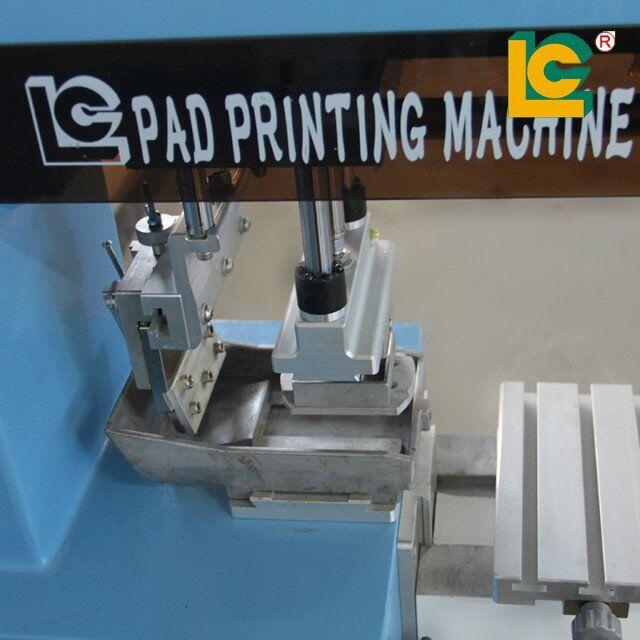

5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable
1. Model NO: LC-PM1-100
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*100mm
5. Printing area; 85*85mm
6. Jigs: 1
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH): 830x530x1400mm
11. Machine weight: 110kg
Machine fitting:
Model No |
LC-PM1-100 |

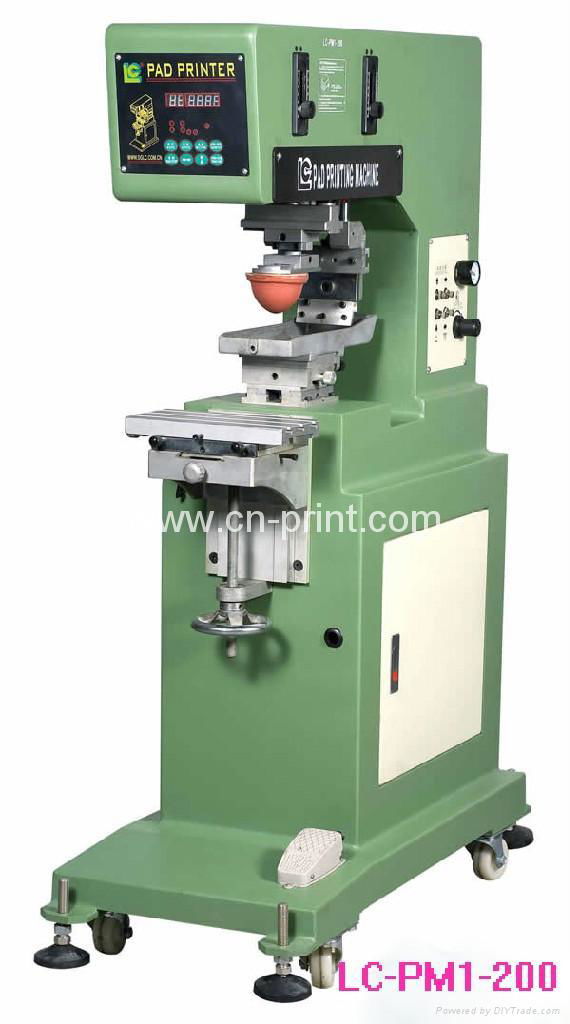

LC-PM1-150 |
LC-PM1-200 |
LC-PM1-250 |
LC-PM1-300 |
Printing Colors |
1 |
1 |
1 |
1 |
1 |
station |
1Pcs |
1Pcs |
1Pcs |
1Pcs |
1Pcs |
Plate area |
100×100mm |
100×150mm |
100×200mm |
150×250mm |
150×300mm |
Workbench size |
200×125mm |
250×125mm |
300×125mm |
400×165mm |
400×165mm |
Max printing speed |
2000pcs/hr |
1800 pcs/hr |
1500 pcs/hr |
1200 pcs/hr |
900 pcs/hr |
Air pressure |
6bar |
6bar |
6bar |
6bar |
6bar |
Wattage: |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
Machine size |
860×460×1400 |
860×460×1400 |
1250×530×1420 |
1350×560×1470 |
1450×560×1470 |
Machine weight |
94kg |
103kg |
135kg |
170kg |
182kg |
1. One pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction
