School specific long slot automatic sprinkler toilet and urinal sprinkler

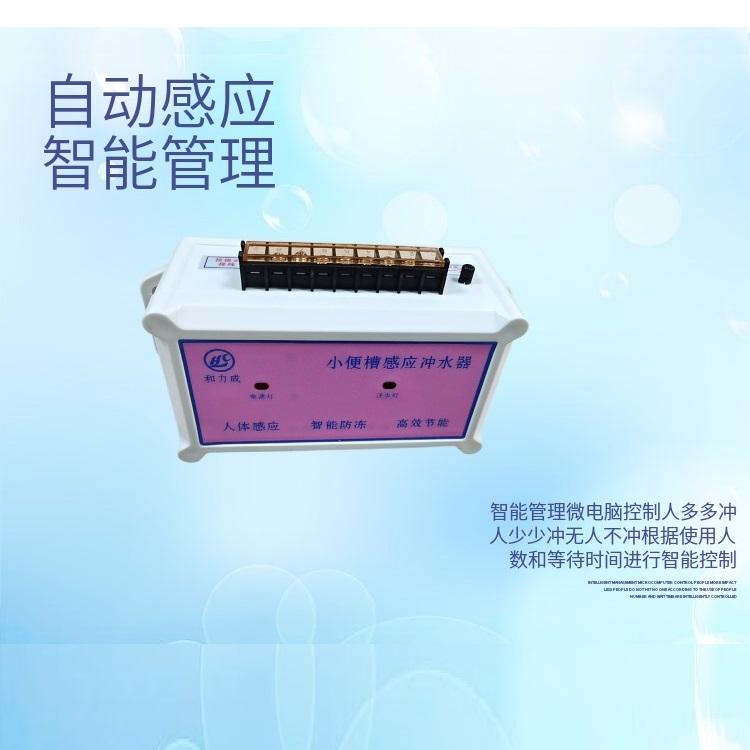

Model: H-N35-3 Urine Sink Sensor Flusher
model: H-N35-3

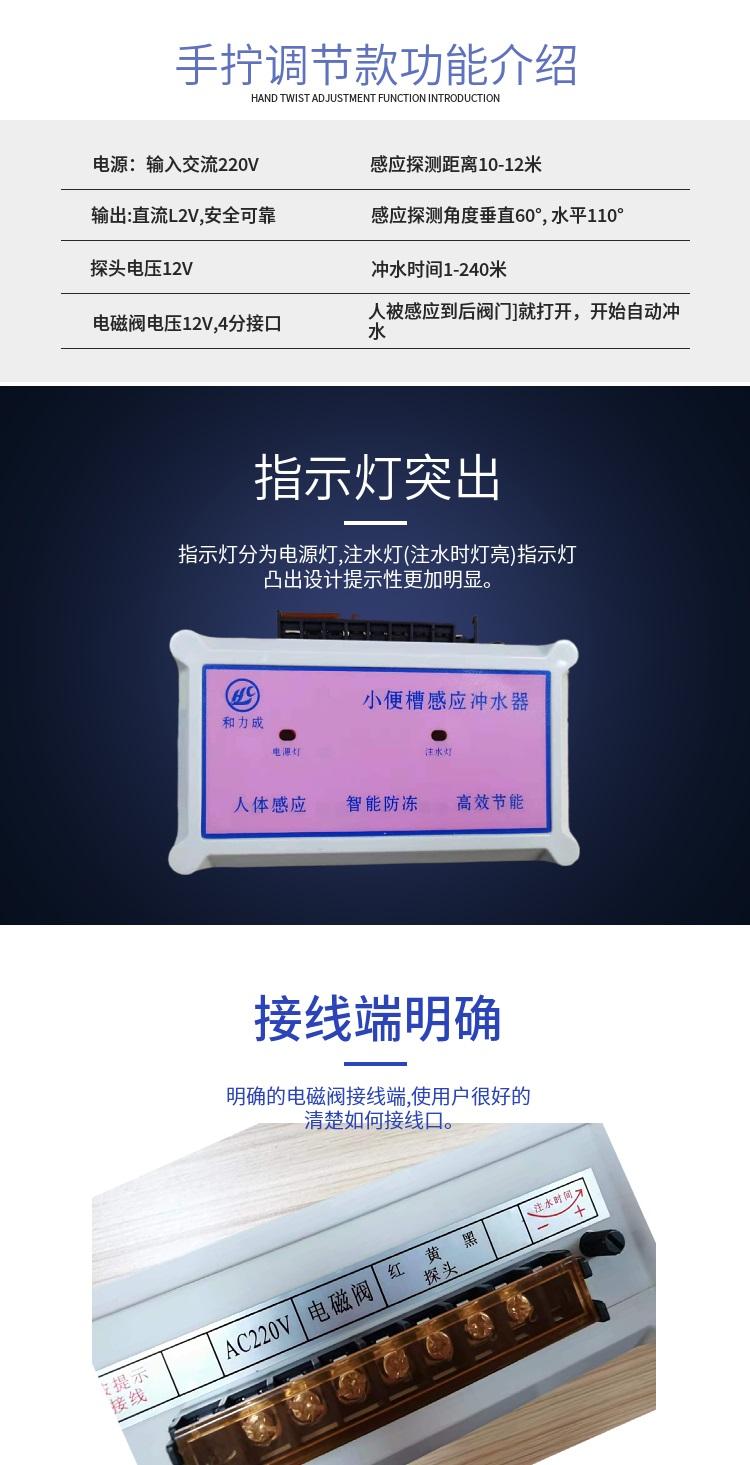

Input voltage: AC220V
Output voltage: DC12V
Probe working voltage: DC9-12V
Probe sensing distance: 8-12 meters
Detection angle: 110 degrees horizontally, 26 degrees vertically
Applicable water pressure: 0.05-0.7Mpa
Scope of application:
All trough type public toilets equipped with siphon type water tank flushing devices or other similar automatic flushing devices.
Main features:
1. Automatic sensing, intelligent management: microcomputer fully automatic intelligent control, more people rushing, less people rushing, no one rushing.
2. High reliability: microcomputer control technology, no need for batteries, the program will never be lost under any circumstances, and the designed service life is over eight years.
3. Suitable for various harsh environments: Whether it is high temperatures in summer or extremely cold temperatures below minus ten degrees Celsius, the product can work normally.
4. Safety of use: Installed at a height of 2.4 meters or more, avoiding contact with personnel and also avoiding human damage.
5. Easy installation: No embedded parts in the wall, installation only takes 2 hours.
6. Infrared sensing, automatic water discharge and shut-off, water-saving, convenient, hygienic, and can effectively prevent bacterial cross infection.
7. The host adopts microcomputer control, which can automatically adjust the flushing time according to the frequency of use and the length of each use, more effectively saving water.
8. The water-saving rate can reach 60-90%, and the entire investment can generally be recovered within 1-3 months. Truly achieving the harmonious unity of hygiene and water conservation, ultimately achieving cost savings
9. Equipped with a water volume regulating valve and filter screen, non professionals can easily adjust and filter the water volume
10. The warranty period is two years.
Main functions:
Intelligent antifreeze: In winter, the system automatically enters the intelligent antifreeze control program, which can effectively prevent water pipes from freezing.
Digital delay: Quickly adjust the delay time digitally, changing program parameters only takes a few seconds.
Intelligent counting: Intelligent fuzzy control based on the number of users and waiting time to achieve flushing effect.
