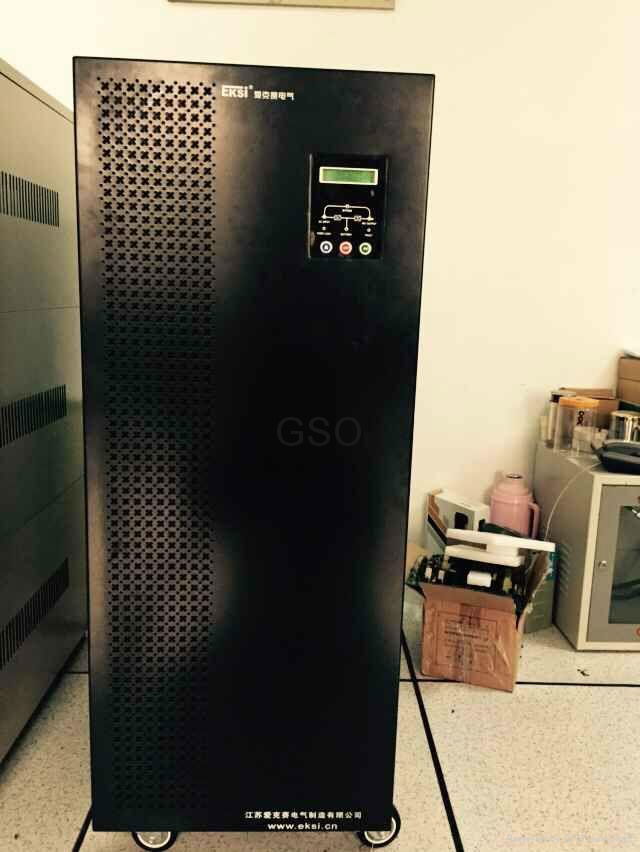

~I.Brief Introductions

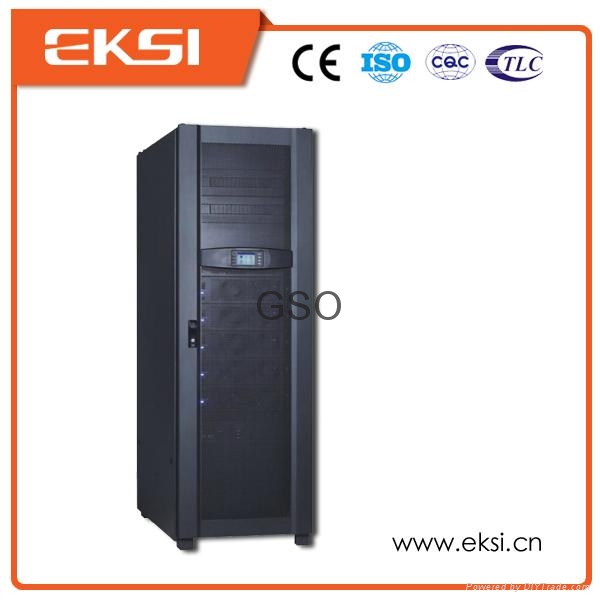

EKM is a new type of the three-incoming and three-outgoing modular UPS, which adopts the all-digital control technology, concentrates the most advanced technological results in the fields of the today's power electronics and the automatic control, thus making it the benchmark product in the UPS industry. The birth of the EKM has brought a new concept for the power supply scheme of the electrical equipment, which has further made a breakthrough improvement in the availability of electrical equipment. As a drawer structure and a highly intelligent modular design are adopted, it is provided with a function of easy pl ing in and pulling out, it meets the power needs and the reliability requirement through increasing or decreasing the modules in the cabinet and it allows online maintenance, when there is a module redundancy, so as to achieve zero downtime time for check and maintenance.

~II. Main Parameters

~
Capacity

10~300KVA

Power module
10KVA(8KW);15KVA(12KW);20KVA(16KW);30KVA(24KW)

Technical types
The online double conversion type

Product mix
Modular wireless parallel structure

Mains parameters

Voltage type
3Φ4W + G

voltage range
(204~520)VAC

Frequency range
50Hz±10Hz  60Hz±10Hz

Power factor
>0.99

Current  harmonics
<5%

output parameter

Output  waveform
Sinusoidal waveform

Theoutput power factor
0.8

The output phase number
Three phase four wire output(nominal voltage380Vac)

Output voltage
380Vac±1% or 220Vac±1%

Output frequency
50Hz±0.01Hz or 60Hz±0.01Hz(During the phase locking for mains frequency)

Peak factor
3:1

Voltage distortion
<2%(Linear load);<3%(The nonlinear load)

Surge capability
110%

On load imbalance degree
≤3%

Effective rate
≥96%

Battery parameters

The class type
Valve control type lead acid free d battery

The class type
± 240VDC

System parameters

The noise sound
<60db(100% load)

show
Large screen display

Smart slot number
Three smart slot

Intelligent card(option)
RS232 or RS422,RS485,SNMP network card,Dry joint point card,NMC card,CNCcard

Environment temperature
-10ºC~+40ºC(run);-25ºC~55ºC(storage)

Relative humidity
0%~96%

Size of the volume(D×W×H)
6 module rack(1050*600*1660)( weight 200 kg)

10 module rack(1050*600*2060)(weight 300 kg)

Heavy volume
Power module:10kVA=33kg;15kVA=35kg;20kVA=35kg;30kVA=37k

~
III.Features

Modular UPS with independent monitor and charging module.

Strong load adaptability for linear and nonlinear load.

Intelligent module and system protection design.

Incredible low noise system design.

Digital control for the whole parts including rectifier, inverter, charger and discharger.

IGBT modules rather than discrete components are applied in the power module.

Inbuilt power distribution for input and output connection.

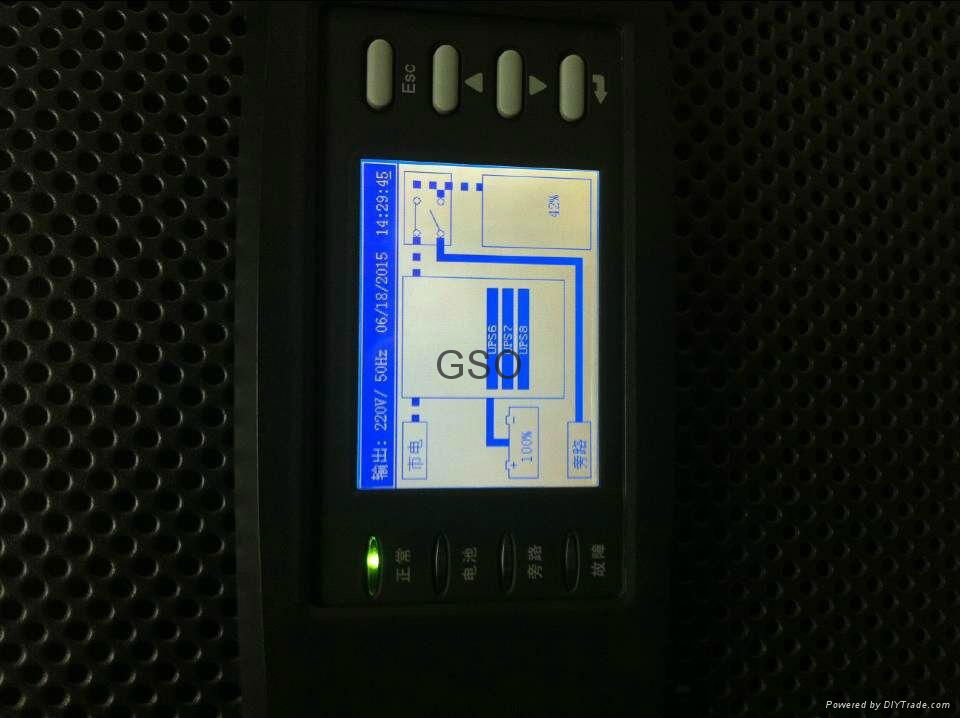

Large touch screen LCD with plenty of information.

Digital paralleling technology, very low circle current between modules.

Digital paralleling technology, very low circle current between modules.

IV.Company Profile

JIANGSU EKSI ElECTRICAL MANUFACTURING CO.,LTD locates in Yangzhou Economical and Technological Development Zone of Jiangsu. This is a large technological joint-stock enterprise in China, developing and manufacturing UPS(Uninterrupted Power Supply ), special UPS for electric power industry, EPS, grid-connected solar network, stand-alone inverter, percision air-conditioned, photovoltaic controller telecom power supply, AC&DC stabilized voltage supply, maintenance-free lead-acid batteries, transformers and reactors etc.

The company is a high-tech enterprise and member of China Power Supply Society. It's one of those which passed authentications of ISO9001:2008 QC system and ISO14001:2004 environment management system, CECP, TLC, CE, TUV, AS4777 etc. Our products are always honored as "trustworthy products" and "Famous Brand of Jiangsu".

EKSI has established over 30 branches as well as sales agents and created a complete sales and service network. Our products are widely applied in finance, banking, stock exchange, traffic, civil aviation, CIQ, taxation, education, post & communications, oil as well as chemical industries, and are exported to over 60 countries and districts including Spain, Germany and USA. And experts of power supply protection and services appraised us for our excellent technologies, outstanding qualities, good-quality services.
