| Model: | KVM-1701W-D2 |
|---|---|
| Brand: | Annso |
| Origin: | Made In Taiwan, China |
| Category: | Electronics & Electricity / Switch / Other Switches |
| Label: | dual screen , KVM , LCD console |
| Price: |
-
|
| Min. Order: | - |
| Last Online:22 Sep, 2016 |
Features

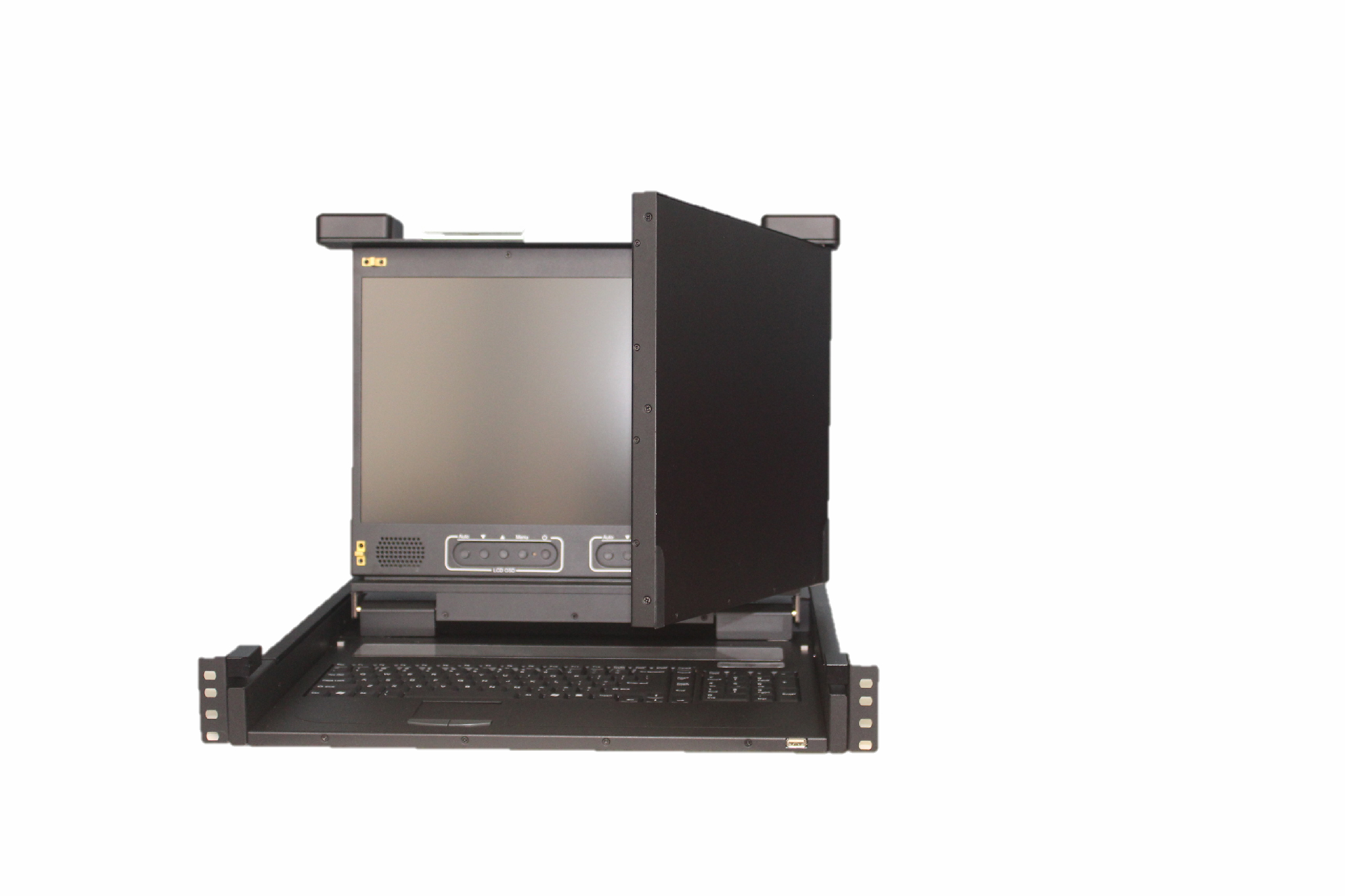

• 2U 17.3 inch widescreen Dual LCD Console Drawer
•Dual DVI & VGA Port
• 1920 x 1200 native WUXGA Ultra high resolution
• Support FHD with 1080p resolution.
• Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral
Device for computer (ex, flash disk, hard driver, KB/Mouse)
• 104-key keyboard with touch pad mouse.
• USB 2.0 Keyboard & Mouse
• Self-locking and auto release rails for ultra convenience.
• Build in 2x 2 watts speakers
Option
• Composite Video input
• HDMI orDisplay Portinput
• 3G/ HD / SD –SDI Broadcast grade input
• 48V, 24V or 12V DC Power
|
Part No. |
KVM-1701W-D2 |
|
|
No. of ports |
1 |
|
|
KVM Connectors |
2 x DVI-D & 2x VGA / 1 x USB |
|
|
LCD |
Size |
Dual 17.3 inch FULL HD display |
|
Backlight |
LED |
|
|
Resolution |
1920*1080 ( support resolution up to 1920*1200 ) |
|
|
Max.color |
262K |
|
|
Luminance |
300 cd/m2 |
|
|
View Angel(H/V) |
140/ 120 |
|
|
Contrast Ratio |
650 : 1 |
|
|
Port Selection |
N/A |
|
|
USB HUB |
Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device |
|
|
Audio |
1 x 3.5mm Audio jack |
|
|
KB/Mouse Emulation |
USB2.0 |
|
|
Rack Depth ( rack cabinet front rails to rear rails ) |
600mm to 1100mm |
|
|
Power |
100-240V AC 50/60Hz via IEC Type power cord |
|
|
Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% - 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
|
Physical Dimensions( W x H x D ) / Net Weights( KGs ) |
443x63x580mm / 14.5 |
|
|
Packing Dimensions( W x H x D ) / Gross weights(KGs ) |
735x590x215mm/ 19.0 |
|
|
Accessory |
||
|
KVM-1701W-D2 1.8meter IEC Type Power Cord x1 , 1.8meter DVI Cable x2 , 1.8meter VGA Cable x2 , 1.8meter USB Cable x1 ,1.8meter Audio Cable x1 |
||
