Gantry Aircraft Cylindrical Power Battery Spot Welding Machine BSW-128
Product Description
| Feature： |
The contour is artistic,uses the microcomputer control,each parameter keyboard establishment,adjustment.LCD
demonstrated the establishment parameter,accurate,directviewing,is convenient.Welding spark small,weld
point invariable color,welding more reliable,welding time short,may cause the hot influence to fall to is
slightly small to the electricity core intrinsic characteristic influence;To power source compatibility
stronger,the welding pressure direct demonstration,with the traditional exchange pulse,the electric
capacity stored energy welding apparatus compares,the welding completes after the battery surface to
be cleaner;The high accuracy welding,gives off heat evenly;
The welding parameter hypothesis scope is broader.Is suitable in the battery continually contact tag
welding,the hardware welding.
Features:
1.Excellent choice when the welding application require a rapid rise time and high energy discharge.
2.Perfect For high volume battery pack's production.
3.Compact and attractive dimension.
4.Most cost-effective welding solutions for fine-spot resistance welding.
5.Quick energy release for welding highly conductive metals such as copper.
6.Small heat affected weld zones
7.Repeatable energy release independent of line voltage fluctuations
8.Capable of extremely fine energy adjustment
9.Homogeneous welding spot, small spark, no black spots and stable welding current.
10.Microcomputer single chip control, the welder may achieve single pulse, double-pulse or multi-pulse welding.
11.Independently adjust for the pressure of two welding probes, ensuring stable and reliable welding pressure.
12.Optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines.
13.Quick and immediate for machine learning and use
14.Equipment Max Dimension (LxWxH): 800mm(31.5") x 600mm(23.6") x 1400mm(57.2")
15.Equipment Max Weight: 154.3 lbs (70kg)
16.Suitable for 0.03mm ~ 0.2mm welding nickel tabs (You can order tabs here)
17.Control mode:Pedal or Pneumatic
18.Included 2 pcs 80mm L x 3.0mm Dia Copper Welding Electrodes (You can order electrode here)
19.Input Voltage: AC 110V-220V (50Hz ~60Hz) , USA AC plug
20.Max. Weight: 110lbs 3.68Oz (50kg)
21.Max. Output Power: 15KW
22.User Manual is available upon requested
Warning
· Avoid touching weld spots immediately after the weld has been performed as they will be hot.
· Always wear safety glasses when working with spot welders and weld heads.
· Be careful not to pinch fingers in moving weld head parts or between welding electrodes.
· Remove hand jewelry before welding.
|
| Price Terms: | FOB Hong Kong |
| Payment Terms: | TT IN ADVANCE |
| Packing: | EXPORT WOODEN BOX |
| Lead Time: | 1O DAYS AFTER RECEIVE PAYMENT |
| |

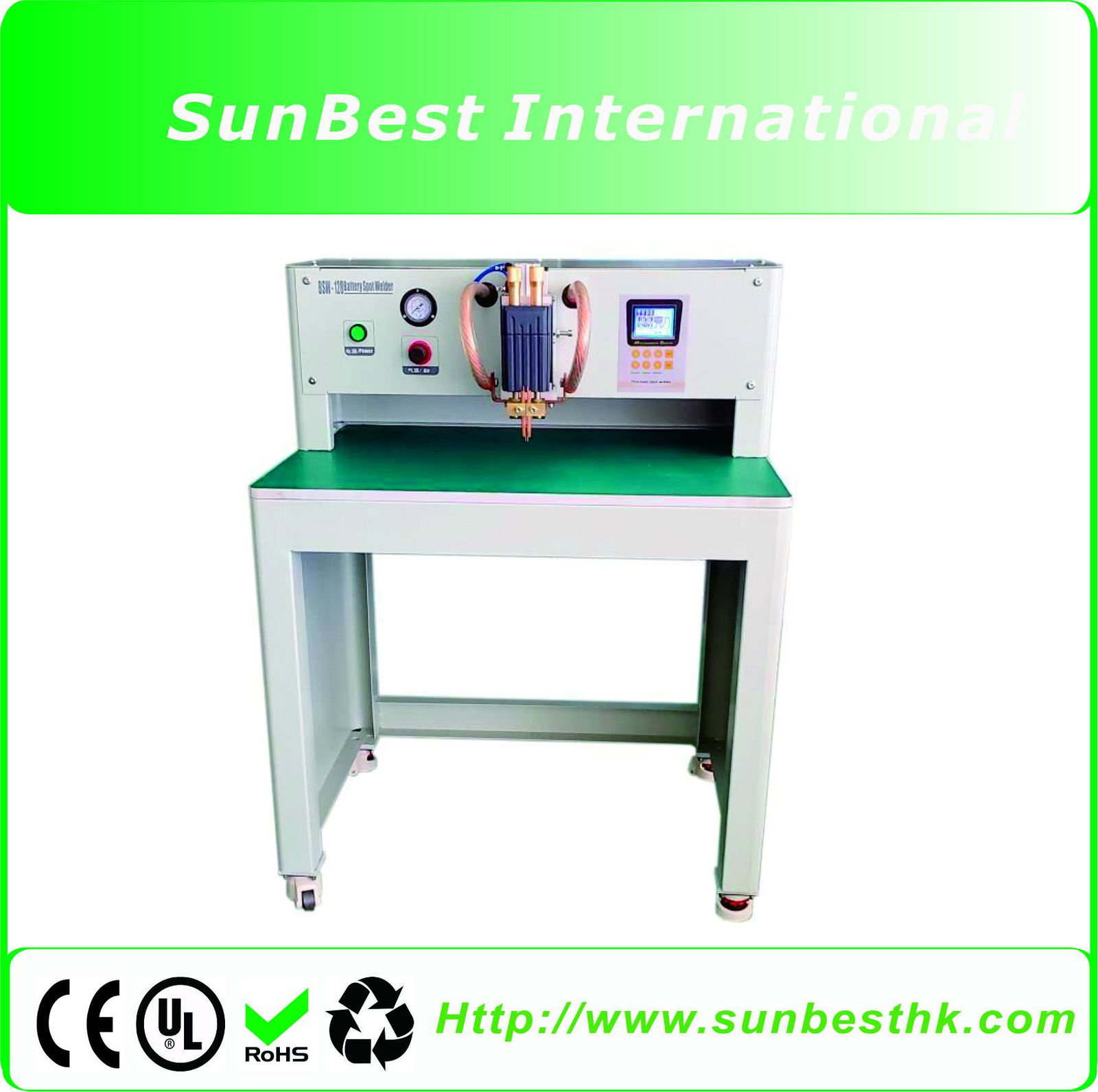

Product Image
