| Model: | PLB |
|---|---|
| Brand: | DOOWIN, DooFlex |
| Origin: | Made In China |
| Category: | Transportation / Vehicles / Commemical Vehicles |
| Label: | crane load test bag , load test water bag , crane water weight |
| Price: |
US $6000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:10 Oct, 2016 |

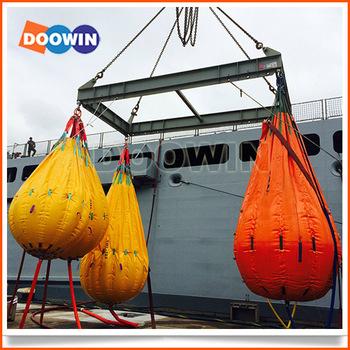

DooFlex proof load test water weight bags is designed for proof load testing for the lifting equipments and structures that request proof load testing weight when it's newly finished, or periodic check or maintenance. Such as crane load testing, beam load testing, davit water load testing, derrick water load testing, overhead proof load testing. This water filled proof load bags offer one kind innovative water load test weight solution with the advantages of Safety, Economy, Convenience, High Efficiency.
DooFlex water weight proof load test water bags are made of heavy duty coating fabrics, equipped with all necessary filling/drain hose components and valves, master links, shackles, lifting belts, and incorporating with some innovative design. All these features with the competitive price make DooFlex crane test water weight bags as the first choice.
Each set water weight load test water bags comes ready with following accessories certificated:
-- Master link and shackles, 6:1 safety factor
-- Polyester webbing lifting straps, round slings, 6:1 safety factor
-- Filling and drain hose with valves and camlock
-- Several handles welded around the water bag body
-- The marine rope with pulleys
Specification of crane load test water bag:
DooFlex make the 1ton, 2ton, 3ton, 5ton, 10ton, 15ton, 20ton, 25ton, 30ton, 35ton and 50ton water weight bags for your proof loading test need.
| Model | Capacity (m) | Diameter (m) | Length (m) | Dry Weight (kg) |
| PLB-5 | 5,000 | 2.3 | 3.3 | 60 |
| PLB-10 | 10,000 | 2.6 | 5.6 | 100 |
| PLB-20 | 20,000 | 3.5 | 6.2 | 150 |
| PLB-25 | 25,000 | 3.6 | 6.4 | 220 |
| PLB-30 | 30,000 | 4.0 | 7.0 | 260 |
| PLB-35 | 35,000 | 4.2 | 7.3 | 300 |
