Product information：
Search Guide: Automatic power battery spot welder, Lithium battery automatic spot welder, Programmed automatic
spot welder, Power battery pack spot welder, XY axis automatic feed spot welder, Spot welder machine with
programming function

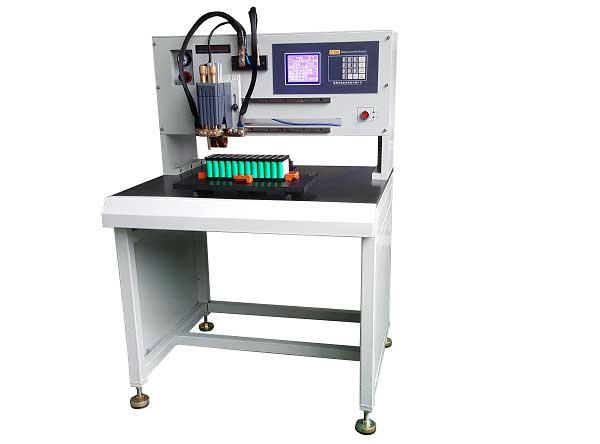

SWDP-2418 Programmed automatic spot welder is an automatic spot welding machine for 18650 rotating
cylindrical battery or approximately rectangular type, or the ranks of regularly arranged single battery
welding combination. Only need to set up a few key parameters can be completed automatically welding function,
mainly used for the battery pack of a large number of batteries, widely used in power battery production.
Functional characteristics:
1.Programmable automatic welding, programming is simple and easy to learn, only need to control the
coordinates of a few parameters can be set to achieve automatic welding.
2.It has the function of automatic welding quality, which greatly improves the quality of welding.
3.The first overall design, set welding power supply and X, Y axis drive control in one, making the whole
machine is simple, reliable, easy to use.
4.X, Y axis is equipped with a limit device, the protection of the motor beyond the limited range.
5.The high frequency inverter power supply, strong joints, no black.
6.Rack using the Longmen body, the appearance of beautiful atmosphere, compact.

Product parameter:
Input Power  Output Power Electrode Travel Range Weld Reference Energy  Weight
AC220V±10%/50Hz  15KVA  15mm  0-1024 60kg
Advance Weld Current Up Time Weld Current Weld Time Down Time
0-99% 0.0-9.9(mS) 0-99% 1.0-3.0mS 0-9.9mS
X Axis Weld Battery Space Y Axis Weld Battery Space Weld Point Space
0-99mm 0-99mm 0-9.9mm

Model X Axis Travel Y Axis Travel Range Z Axis Travel Dimension
SWDP-2418 0.0-200.0mm 0.0-300.0mm 0.0-15.0mm 1000×950×1400
SWDP-2428 0.0-300.0mm 0.0-450.0mm 0.0-15.0mm 1000×950×1400
