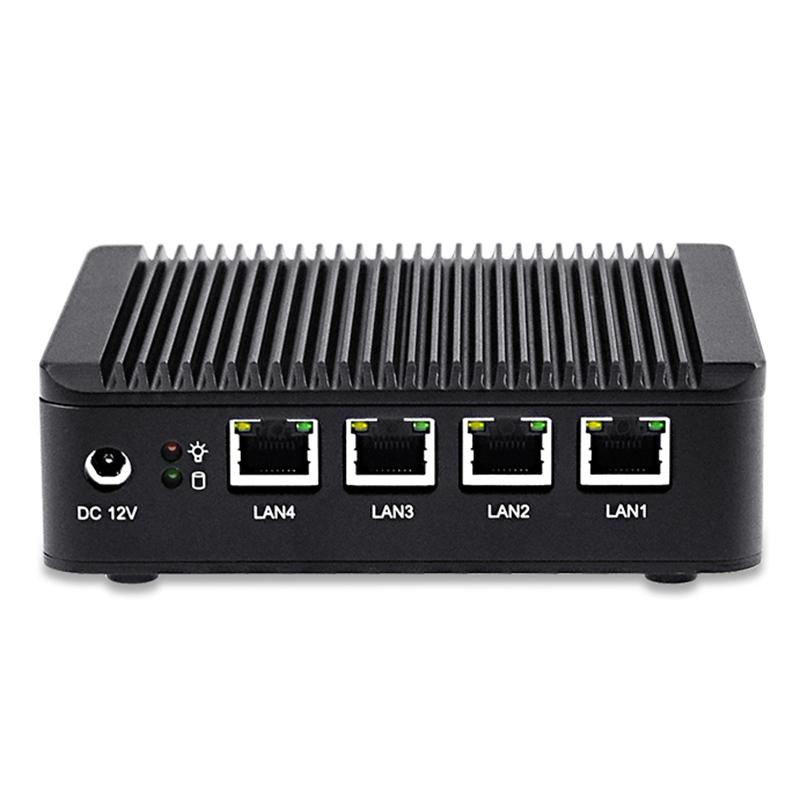

Hystou Fanless Mini PCs series are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

Main advantages:

1. Small size: all Hystou mini pcs smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
2. Durability: all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.
3. Low power: all the Hystou mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
4. Universal performance: Hystou mini pcs compatiable with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

Key Features & Benefits:

• CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
• RAM: Support 2G/4G/8G DDR3L-1333 MHz SODIMM Notebook memory;
• Storage: Support mSATA SSD, don't support 2.5 inch SSD or HDD;
• Graphics: Intel® HD Graphics
• I/O: Mic;Speaker; 2*USB 2.0 port; 1*VGA; 1* DC12V In; 2*WiFi; 4* Realtek RTL8168E RJ45 LAN Port;
• Operating System: Windows 7, 8 & Linux Compatible, s est Linux for less than 16GB SSD, up to 32GB SSD s est Win7
• Language: Multi Language
• USB port: 2* USB 2.0
• Feature: Fanless
• Wireless: 300MB Wifi with 2 Antennas
• Lan: 4*Gigabit Lan Port

Power and Working Environment:

• Input: DC100-240V AC/50-60Hz
• Output: DC 12V~3A/5A
• Operating Temperature: 0/70 Centigrade(32F~140F)
• Storage Temperature: -20/+85 Centigrade
• Relative Humidity: 0%~90% (non-condensing)
• Energy-saving: Support Energy-saving technology, Speedstep
• 64 bit computing: Support 64 bit computing
• Virtualization: Support Virtualization technology
• Hyper-threading: Support Hyper-Threading
• Product Dimension & Details
• Consumption: 15W

Graphics Specifications

• Processor Graphics: Intel® HD Graphics
• Graphics Base Frequency: 688 MHz
• Graphics Max Dynamic Frequency: 854 MHz
• Intel® Quick Sync Video

Advanced Technologies:

• Intel® Virtualization Technology (VT-x)
• Intel® 64
• Enhanced Intel SpeedStep® Technology

What can this mini computer do?

• Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
• Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
• Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
• Entertainment: support blu ray 1080P video play, Kodi(XBMC) and others
