| Model: | - |
|---|---|
| Brand: | FOBELEC/OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | cctv cable , CCTV Camera , RG59 Siamese cctv ca |
| Price: |
US $0.2
/ Meter
|
| Min. Order: | 10 Meter |
| Last Online:14 Dec, 2016 |
|
Inner Conductor Diameter: 20AWG,0.81mm BC/CCS |
Braid Shield Diameter: 0.12mm CCA |
|
Color: White, Black or Customized |
Packing: 100m/roll,305m/wooden drum |
|
Payment: T/T or Irrevocable L/C Sight |
Loading port: Ningbo,Shanghai, otherChinese port |
|
Delivery time: 10-20days |
Other Name: RG59+DC cable,RG59+Power cable |

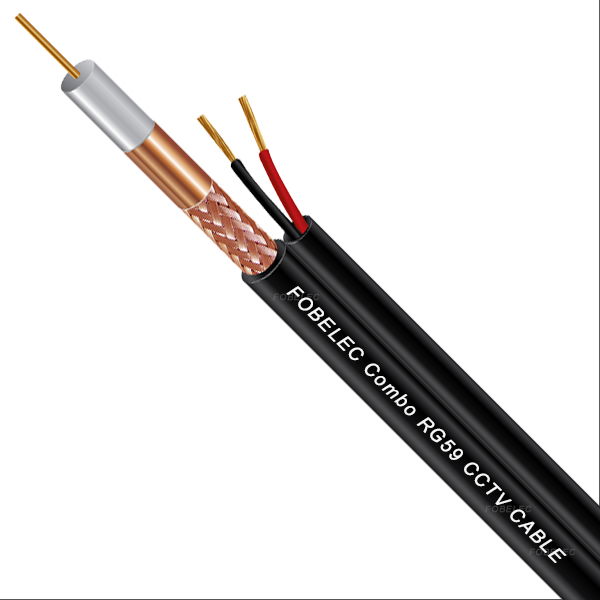

Combo RG59 cctv cable FPE Construction:
Specification:
|
Item |
Combo RG59 cctv cable FPE |
|
Inner Conductor |
20AWG,0.81mm Bare Copper or CCS |
|
Insulation |
3.66mm Foamed PE |
|
First Shield |
AL Foil (Copper Color) |
|
Braid Shield |
64/ 80/ 96 /112/ 128 x 0.12mm CCA wires Braid |
|
PVC Jacket |
6.1+0.1mm PVC Jacket |
|
Power Cable |
0.55 square mm (30x0.15mm CCA+1.8mm Red & Black PE) |
|
0.75 square mm (7 x 0.37mm CCA+1.8mm Red & Black PE) |
|
|
Outer Jacket |
4.5+0.1mm PVC Jacket |
|
Note: Other specifications according to customer requirements!!! |
|
Electrical Characteristics:
|
Impedance: 75+/-3 Ohm |
Return Loss |
5-1000MHz≥22dB |
|
Capacitance: 52+/-2 pF/M |
1000-2000MHz≥20dB |
|
|
Velocity of Propagation: 85% |
Screening Effectiveness≥70dB |
|
Attenuation(@20℃）:
|
Frequency (MHz) |
Max Attenuation (dB/100FT) |
Max Attenuation (dB/100M) |
|
5 |
0.9 |
2.8 |
|
55 |
2.1 |
6.7 |
|
187 |
3.6 |
11.8 |
|
211 |
3.8 |
12.5 |
|
400 |
5.1 |
16.7 |
|
500 |
5.7 |
18.7 |
|
750 |
7.0 |
22.8 |
|
860 |
7.5 |
24.6 |
|
1000 |
8.0 |
26.3 |
|
1500 |
9.9 |
32.5 |
|
1800 |
10.9 |
35.6 |
|
2200 |
12.6 |
41.2 |
|
3000 |
13.8 |
45.2 |
Use Range :
CCTV Camera signal transmission, Install the BNC connector on the end. connection camera, Network DVR.
Our Market :
Our Service :
1. According to customer's requirement, providing the most cost-effective coaxial cable.
2. Delivery Port: Ningbo Port, Shanghai, Shenzhen or other Chinese ports.
3. Delivery time: quantity 10~400KM with in 10~15days.
4. All normally sample are free of charge, customer just pay the express cost is ok.
5. Strict testing requirement for all products, and all products quality guarantee 2 years.
