Specifically Designated For Sugar and Re-cycling Industries!
Knife edges are cost-effective alternatives to everyday hand hardfacing methods. In even the toughest jobs, they retain their sharpness – resulting in improved cutting efficiency to virtually all other methods.
The chrome-moly white iron with finished minimum hardness of 63HRC or 700 BHN, delivers maximum abrasion protection, while the steel backing plate absorbs high impact and facilitates ease of fitting and use.
The bonding shear strength is over 30,500 psi (or 210 Mpa) and will not separate.
Features:
Technical drawing:
| Part No | Type | Size | Dimensions | Weight(kgs) | ||||
| A | B | C | D | E | ||||
| KE1201 | 1 | 203*19*50 | 203 | 19 | 38 | 12 | 50 | 1.1 |
| KE1202 | 1 | 203*22*50 | 203 | 22 | 38 | 12 | 50 | 1.3 |
| KE1203 | 1 | 203*25*62 | 203 | 25 | 50 | 12 | 62 | 2 |
| KE1301 | 1 | 305*19*50 | 305 | 19 | 38 | 12 | 50 | 1.6 |
| KE1302 | 1 | 305*25*50 | 305 | 25 | 38 | 12 | 50 | 2.2 |
| KE2201 | 2 | 203*16*50 | 203 | 16 | 38 | 12 | 50 | 1 |
| KE2301 | 2 | 305*25*56 | 305 | 25 | 40 | 16 | 56 | 2.5 |
| KE3201 | 3 | 203*19*50 | 203 | 19 | 38 | 12 | 50 | 1.6 |
| KE3202 | 3 | 203*28*50 | 203 | 28 | 38 | 12 | 50 | 2.3 |
Ingredient(%)
| C | Cr | Mn | Mo | Cu | P | Si | S | Ni,B,V,Nb,etc |
| 2.5-3.2 | 15-18 | 1.0max | 0.5-2.5 | 0.5-1.2 | 0.05max | 1.1max | 0.05max | 0.1-0.8 |
Microstructure
Please contact us for detailed cutting/welding instructions, and Video tutorials.

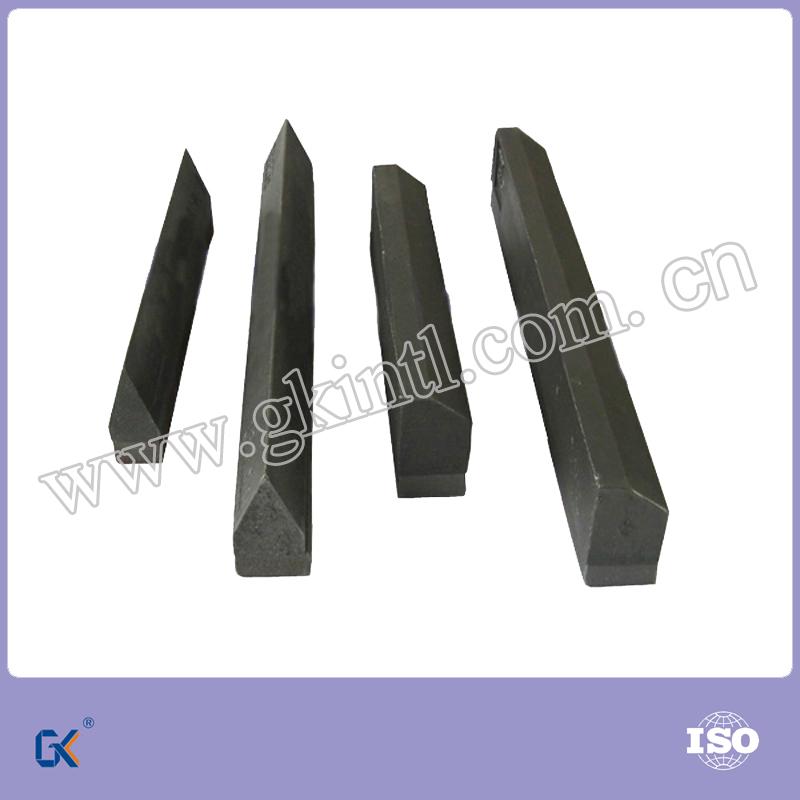

Detailed Images
Factory Outlook
Packaging
Sample order policy
1. We accept sample order for quality testing.
2. Sample cost required(will be deducted in your future order) and the freight collect.
The unit price will be 10~20% higher than the bulk price.
3. For regular customers, samples are free.
4. Sample lead time: 5~10 working days after sample cost received.
5. 1~2pcs sample for quality checking. Just need the shipping charge.
Our Advantages
1. 15 years’ experience in casting.
2. Adequate capacity.
3. Thorough examinations, tracking number on each product.
