| Model: | SH1350C |
|---|---|
| Brand: | SHOOT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | paper stick machine , pvc stick machine , woodworking machine |
| Price: |
-
|
| Min. Order: | 1 pic |
| Last Online:31 Oct, 2024 |

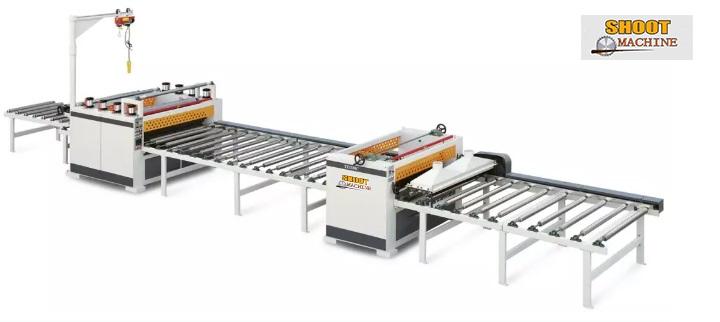

| 11m Paper (PVC) Sticking Production Line | |
| Feature | |
|
It can be used to stick PVC, decorative paper, paint paper on the surface of all kinds of panels. It is equipped with electric hoist and only one person can change the roll material. It is also equipped with the device which can adjust roll material in place quickly. |
|
| Model | SH1350C |
| Max. panel width | 1220mm |
| Max. feeding speed | 15m/min |
| Total Power | 9.65 Kw |
| Overall dimensions | 11000×2100×1600mm |
| Weight | 3000kg |
| Standard Configuration PVC Flat-sticking Production Line | |
| The use and performance of the machine tool | |
| The main purpose of this series of machine tools is to apply glue on the surface of various wooden boards, rubber sheets and MDF and paste different colors with surface decoration materials or PVC sheets. It is characterized by gluing, veneer, cold pressing and hot pressing in one machine, continuous work. The SH1350C type is a secondary cold pressing and a secondary hot pressing. This product has high production efficiency and good veneer efficiency. It is an ideal machine for the mass production of tool veneers in panel furniture factories and speaker factories. | |
| Model | SH1600F |
| Maximum board width | 1600mm |
| Maximum board thickness | 3-30mm |
| Feeding speed | 5300mm/min |
| Total equipment power | 21kw |
| Dimensions (approximate value) | 13000 *2750* 2300mm |
| Plate length | 600 -3660mm |
