Model: | ZMJ01 |
---|---|
Brand: | Jinou |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
Label: | tube expand machine , expand and flaring m , tube flaring machine |
Price: |
US $6900
/ pc
|
Min. Order: | 1 pc |
Last Online:17 Feb, 2017 |

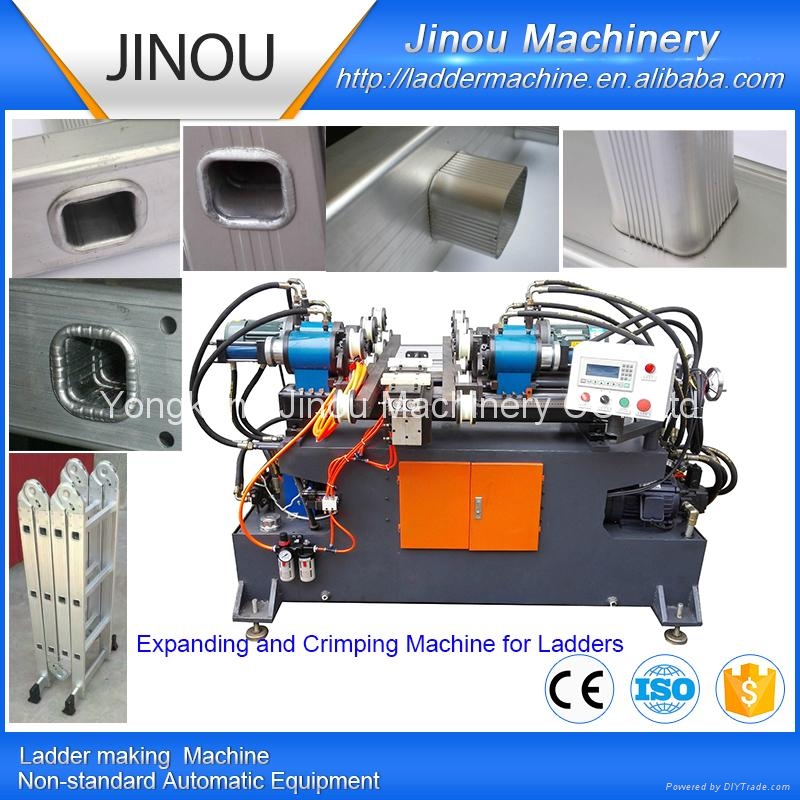

2 in 1 expanding and crimping machines for multifunctional ladders
The machine with ladder Riveting machine, you can complete the ladder in the processing of extrusion and riveting molding process. Our company can manufacture riveting machine or extruder suitable for square pipe ladder, D type pipe ladder, O type pipe ladder and triangular pipe ladder. The machine is easy to operate and has high processing efficiency. The equipment is designed and made according to customer requirements. .
Main Features
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Long service life
4. Running in a high automatization and intellectualization,no pollution
5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
6.Easy Handle ,Safe, High Efficiency,
7.Save Labor
Parameters :
Maximum riveting pressure: 30Kn
The maximum permissible output pressure is allowed: 2.5 MPa
Maximum working stroke of indenter :50 mm × 4
Maximum distance between indenters :520mm
Coarse movement distance of working head: 65 mm × 4
Distance from the center of the indenter to the rail surface of the bed: 185 mm
Power consumption :2.2Kw
Dimensions: 2300 mm x 650 mm x 1600 mm
Net weight of machine:1000 KG
We are ladder making machine factory in China(Yongkang Jinou Machinery Co., Ltd), provide a range of the ladder machines such as : ladder riveting machine, tube expanding machine, pipe crimping machine, aluminum cutting machine, pipe bending machine, aluminium profile grinding and polishing machine and so on , with our machines , you will improve your work efficiency greatly .
