Wire tester Wire diameter detector Outer diameter measuring instrument

Model:LT-3012M
Brand:TAKANO
Origin:Made In Japan
Category:Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus
Label:Outer diameter measu , Wire tester , Wire diameter detect
Price: US $4180 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

dong guan ke yang electronic co.,ltd

Biz MemberGuang Dong - China
Last Online:25 Dec, 2024

Product Description

Japan TAKANO detector, laser diameter is widely used in optical fiber, ceramic, electric wire, communication cable, power cable and enameled wire, aluminum pipe, steel, fiber, glass glass rods, such as plastic pipe, water pipe diameter measurement, online inspection and off-line, and can realize automatic feedback control and the online communication with computer.



Product features:

Using drift followed since the correction technology, measurement and precision is not affected by environmental light temperature, noise, measured values very stable;

Using laser protection circuit with high reliability and high stability constant speed scan motor, guarantee the high measurement precision, high stability and long service life.

Five real-time display, LED diameter with four upper and lower set display and the center location;

Analog output deviation under DC + 10 v output control voltage;

Transfinite alarm on the floor of the green LED flashing and relay output;

Small size, sampling speed, sensitivity, high precision, stable and reliable performance, no trouble back at home.
Laser scanning, non-contact measurement, the measured object without damage;
With PID feedback control system;
With RS232 standard data communication interface, can communicate with PC or PLC;
Microcomputer digital control convenient operation and use simple;
Can be equipped with relay drive deviation alarm function;
Can easily adjust the error between the actual value and the display value;
The upper limit can be set/lower limit alarm function.

Technical parameters: LT - 3011 - m uniaxial) (LT - 3012 - m biaxial)

Measuring range: 0.2-35 mm
Accuracy: + / - 2 microns
Resolution: + / - 0.1 microns
Scanning speed: 700 times/SEC
Repeatability error: + / - 0.001 m
Instrument installation dimensions: 283 x 80 x 45 uniaxial (mm) biaxial 265 x 232 x 45 (mm)
Measuring position height from the ground: arbitrary
Instrument weight: 1 kg
Working voltage: AC90 ~ 240 v
Ambient temperature: 50 ℃ below


Product Image

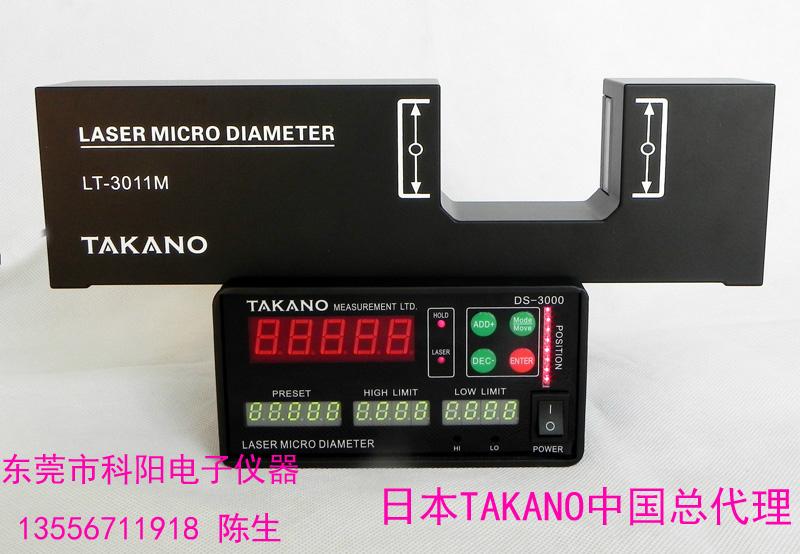

Wire tester Wire diameter detector Outer diameter measuring instrument 1
Img 1
Wire tester Wire diameter detector Outer diameter measuring instrument 2
Img 2
Wire tester Wire diameter detector Outer diameter measuring instrument 3
Img 3
Wire tester Wire diameter detector Outer diameter measuring instrument 4
Img 4
