| Model: | LED-WW6269-24V3 |
|---|---|
| Brand: | ISEELED |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / Professional Lighting |
| Label: | DMX Washer Lamp , Wall Linear Washer , Controlable Led |
| Price: |
US $115
/ pc
|
| Min. Order: | 1 pc |
| Last Online:22 May, 2020 |

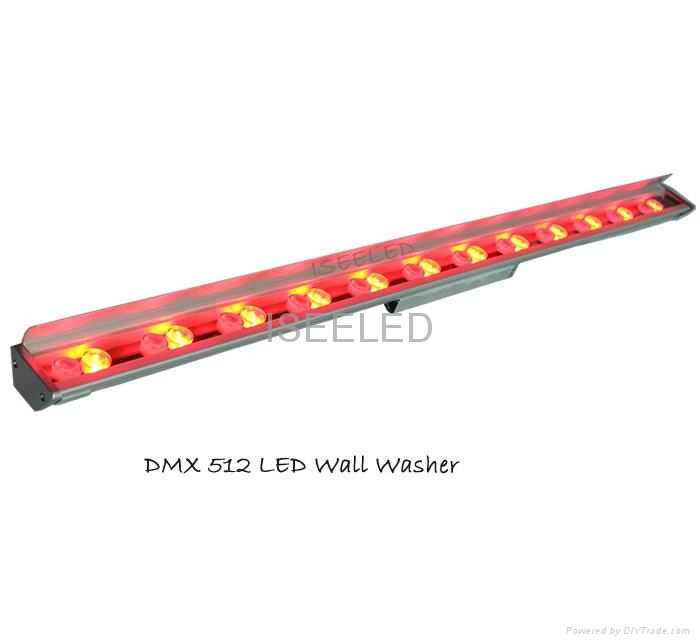

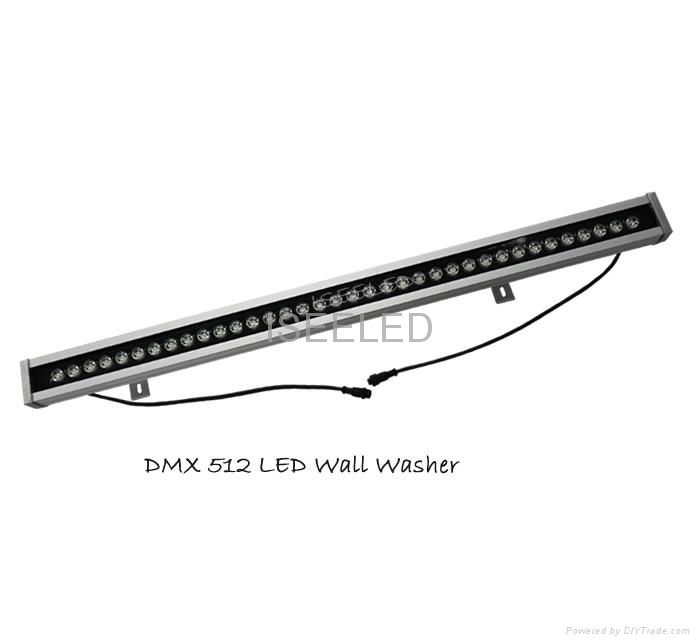

IP65 LED Wall Washer
1. Tight waterproof structure
2. International standard DMX 512 Control
3. Optional on Optic Lens
4. Detachable bracket for easy installation and adjustable the wall washer angle
5. Use 3W power LED, high efficient heat conductivity to ensure long lifespan
6. DMX 512 dimming with constant current driver
7. RGB/RGBW dimming available
Application: adapted for all kinds of led lighting control with dmx 512 protocol way.
|
Model |
LED-WW5525-24V3601RGB |
LED-WW6269-24V3601RGB |
LED-WW8466-24V2401RGB |
LED-WW7267-24V3601RGB |
|||
|
Dimension |
1012mm*55*25mm |
1019mm*62*69mm |
1019mm*84*66mm |
1000mm*72*67mm |
|||
|
Input Voltage |
24V DC |
24V DC |
24V DC |
24V DC |
|||
|
Power |
36W |
36W |
72W |
36W |
|||
|
LED QTY |
36 |
36 |
24 |
36 |
|||
|
LED |
Cree LED/ Everlight 1W-3W LED |
Edison 3W RGB LED |
Cree LED |
||||
|
DMX Driver |
DMX 512 high power constant current driver |
||||||
|
Dimming |
DMX 512 |
||||||
|
Pixel |
1 |
1 |
1 |
1 |
|||
|
DMX Channel |
1-3CH |
3CH |
3CH |
1-3CH |
|||
|
Housing Material |
Aluminum base |
||||||
|
Diffuser |
Clear Tempered Glass |
PC |
|||||
|
Temperature |
-40℃-+60℃ |
||||||
|
Color Range |
RGB/Red/Green/Blue/Amber/Pink/White/Warm white |
||||||
|
LED Lens |
16°, 30°, 45°, 60°, 20°*40°, 10°*45°, 10°*80°, 20°*60° |
||||||
|
Protection |
IP65 |
IP68 |
|||||
|
Lifespan |
50,000 hours |
||||||
|
Weight |
2KG |
4.5KG |
5KG |
5KG |
|||
