| Model: | - |
|---|---|
| Brand: | KSPACK |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | assemble machine , partition assembler , carton machine |
| Price: |
US $50000
/ set
|
| Min. Order: | 1 set |
| Last Online:24 May, 2017 |

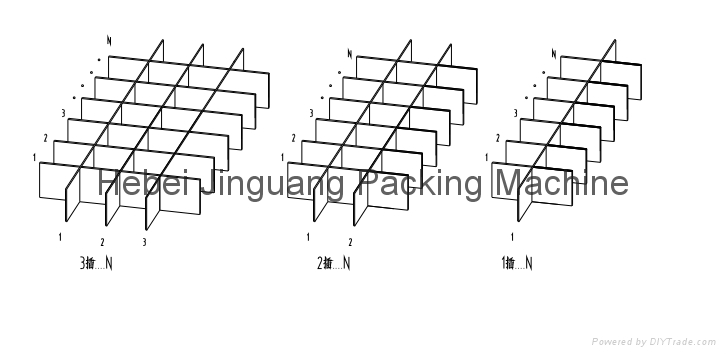

The partition assembler takes the corrugated boards that were previously cut by the partition slotter and puts them together to create a package that has separate spaces for various products.
Automatic cardboard assembling machine parts list:
|
Number |
Name |
Quantity |
Remark |
|
1 |
Auto insert cardboards device |
1set |
Cardboard output: double station Cardboard assemble: cross |
|
2 |
Transport cardboard device |
1set |
|
|
3 |
Pneumatic system |
1set |
Air compressor prepared by customer |
|
4 |
Electrical equipment |
1set |
PLC,Servo system control |
Automatic cardboard assembling machine features:
1. Vacuum sucker adsorbing feed cardboard lengthways
2. Pneumatic feed cardboard crosswise accurately and quickly
3. Electrically adjust lengthways feeding cardboards device to go up and down
4. Electrically adjust crosswise feeding cardboards device to go up and down
5. Electeically adjust crosswise grating board height
6. Crosswise and lengthways feeding paperboards at same time to cross
7. Adapt for variou carton boxes grating and parrying
8. Double station feed cardboard, double work efficiency
9. Pneumatic and electric control ensures the machine advancement
10.Adopt compressed air hold-up vessel to centralize gas supply sufficiently, air pressure reliable
11.Equipped with trouble shooting device, stop working automatically once paper jamed
12. PLC man-machine interface, easy operation
Machine technical parameters:
|
Model |
Machine dimension |
Power(KW) |
|
KSJ 450-2S |
5×1.8×1.8m |
8.0 |
|
KSJ 450-3S |
6.2×2.0×1.8m |
8.0 |
|
KSJ 450-2D |
5×1.8×1.9m |
9.0 |
|
KSJ 450-3D |
6.2×2.0×1.9m |
9.0 |
Design speed: 40-60 sets/min
Air pressure: common pressure 0.6-1.0Mpa
Electric: 380V 50Hz 3phase 4line
Machine working direction: as per customer plant
