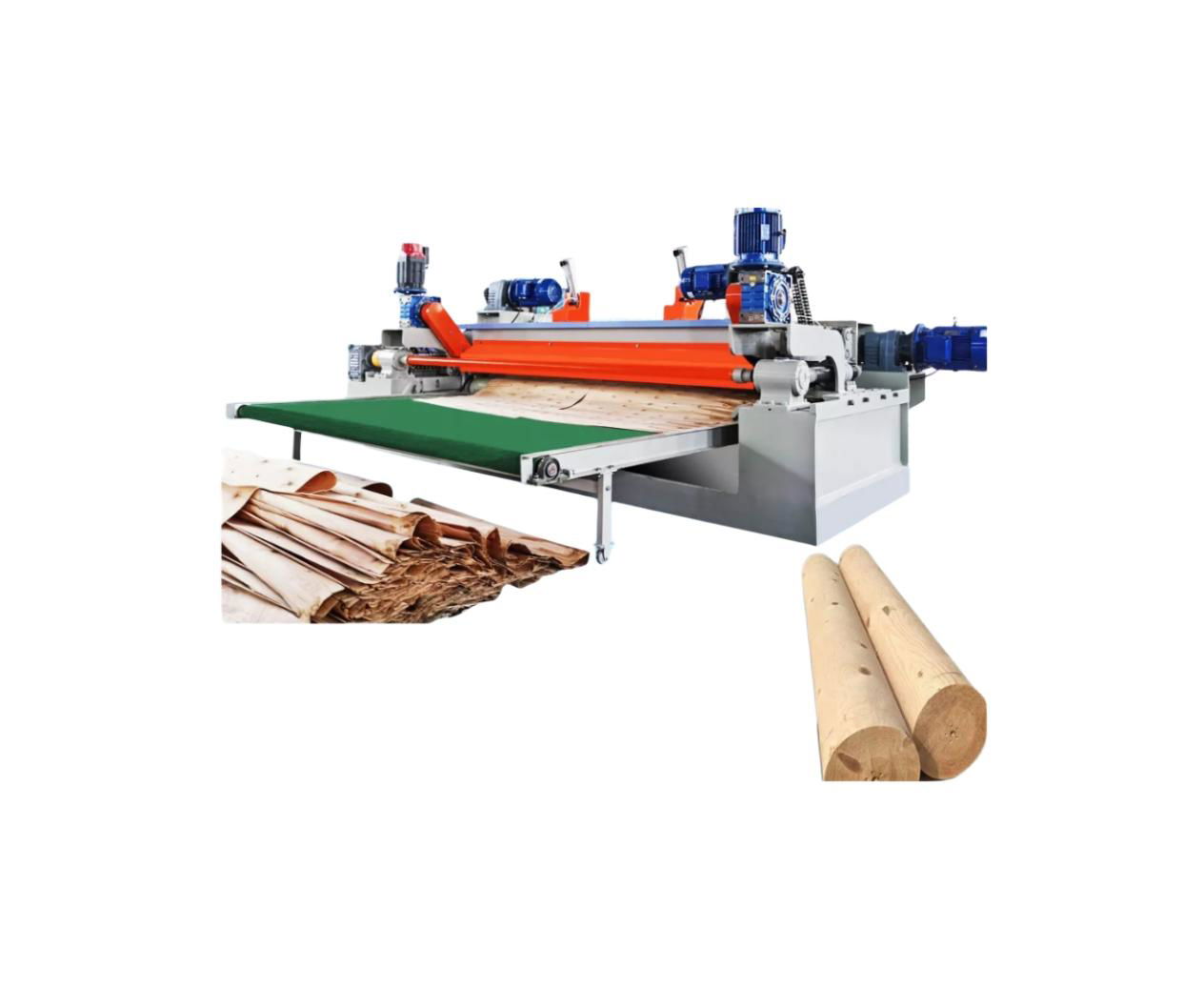

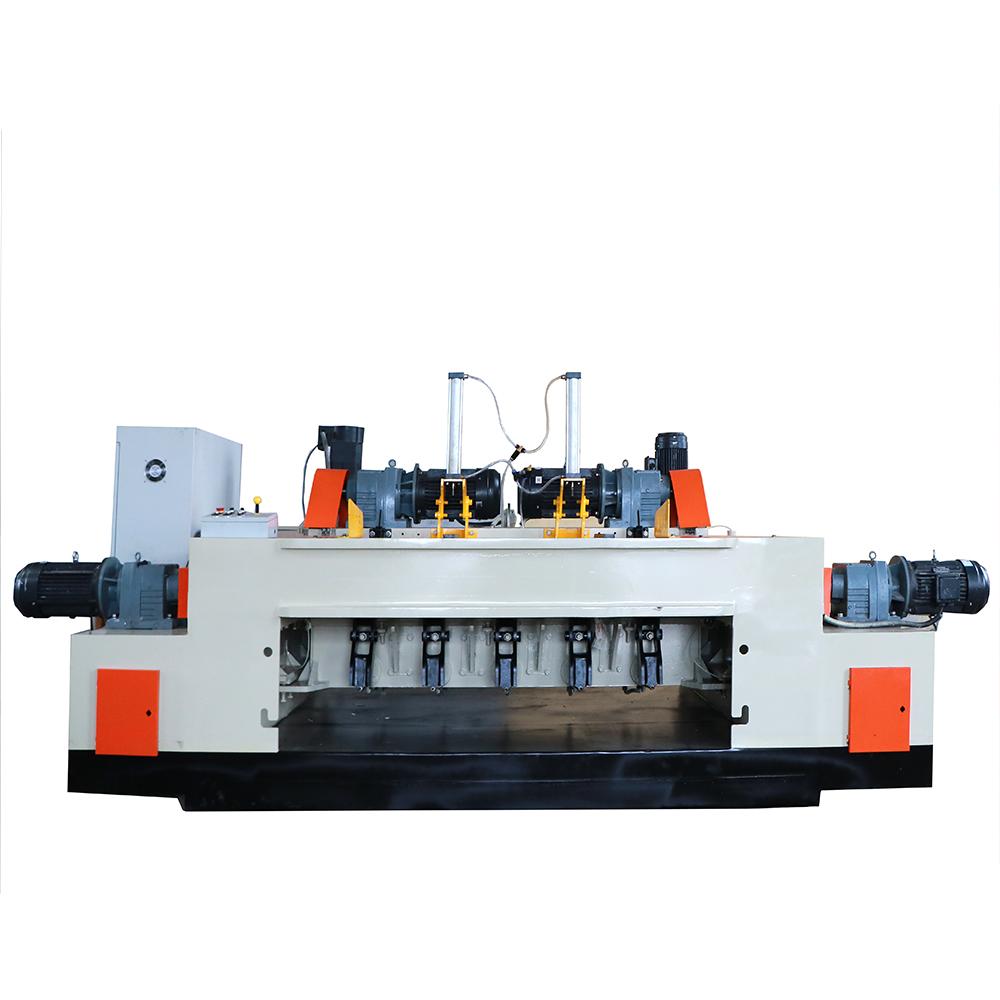

          4ft ALL- IN-ONE PEELING AND CUTTING MACHINE

1. The size of log (Diameter* Length)(mm):        Φ550×1300

2. End peeling minimum diameter of log (mm): Φ33

3. Maximum limit of blade bed-plate (mm):         520

4. Veneer’s thickness(mm):                                 0.4～4.0

5. Blade dimension (Length * Width* Thickness)(mm): 1400×180×16

6. The size of rotary blade (Length * Width* Thickness)(mm): 1400×90×12.7

7. Peeling speed (m / min):                                38-40

8. Motor and power:                                           23.5KW

9.Overall dimension(Length * Width* Height): 3800×2160×1400mm

10. Total weight :                                              about 4000KG
