| Model: | L1-K |
|---|---|
| Brand: | Lotussmart |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | USB drive free card , Auto enter read card |
| Price: |
¥120
/ pc
|
| Min. Order: | 1 pc |
| Last Online:03 Jul, 2019 |
Statement:
To make customers more convenient and quick understanding of chongqing lotus intelligent technology co., LTD. To provide the products and the development of the information provided, no transfer of intellectual property of our company or a third party owners, users before determine the use of our products, please according to actual requirements for product performance and safety aspects of the corresponding assessment, novartis, intelligent technology does not assume due to improper evaluation for your company or organization of any direct or indirect losses, also does not assume any legal and economic responsibility.
Chongqing LOTUS intelligent technology co., ltd. is dedicated to improve the products and services for users, retain the right to modify, maintain and update the products and their corresponding specifications, development documents, source code examples. Subject to change without prior notice. Before deciding to purchase products, please contact our online customer service personnel to help customers do a good job of product selection and confirm whether the current product description, development documents, source code samples are the latest version. The sample development kit uploaded is only part of the content, more development kit information can be obtained directly with our technical department. All development kit examples and documentation are copyright chongqing notas intelligent technology co., LTD., without permission shall not copy or spread to a third party, chongqing notas intelligent technology co., LTD
Technical parameters:

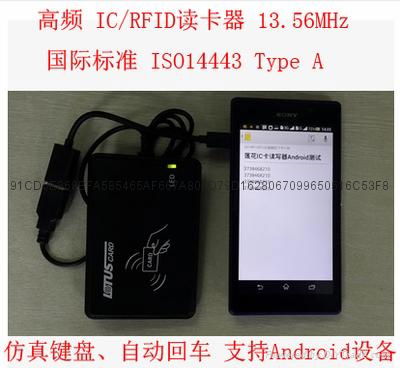

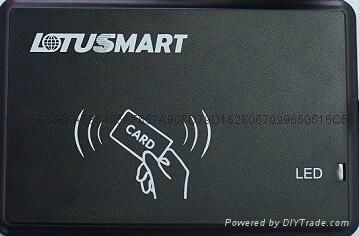

L1-k radio frequency card reader is a non-contact card reader. It connects with PC through USB interface, and adopts USB power supply and HID drive-free technology. Readable M1/ML fudan card and other chip CARDS. Simulation keyboard Android IC card reader auto enter USB drive free plug and play IC card reader.
| Standard | USB data transfer, USB power supply | |
|
Power-supply |
USB | |
| Speed | 12Mbps (full speed) | |
| Working voltage | 3-5V | |
| Current | 200mA (working); 50mA (standby); 100mA (regular) | |
| Interface type | universal USB interface | |
| Support card types | synchronous support conforms to ISO14443 Type A contactless smart card, such as: Mifare S50, Mifare S70, Mifare Pro, Mifare desfire, Mifare ultralight, fudan FM1208, CPU card, etc | |
| Contactless smart card interface | ||
| Standard protocol | ISO14443 TypeA | |
| Operating frequency | 13.56MHZ | |
| Card reading distance | 0-10cm (related to card quality) | |
| Read-write mode | read-only (can only read the UID of ISO14443 Type A based label) simulated keyboard | |
| Whether firmware design is supported | NO | |
| The man-machine interface | ||
| Indicator light | power, data communication indicator light The green light indicates that the card has been inserted, the flash indicates that the reader is communicating, and the red light indicates that the card is being read. | |
| Buzzer | monotone | |
| Product appearance | ||
| Physical size | 105 mm (l) x 70 mm (w) x 13 mm (h) | |
| Color | black | |
| cable | ||
| Connection length | 1.5M | |
| Certification standards | ||
| Certification | CE, FCC, RoHS | |
| Environmental requirements | ||
| Operating temperature | -20~70 °C | |
| Operating system supported | ||
| Support operating systems | Windows 2000, XP 32, XP64, Vista 32 and Vista 64/Windows 7(32-bit), 64-bit /Windows 8/Linux series /Android system | |
Tips:
1. Before purchasing, please read the product specifications and technical parameters in detail.
2. If you are using and purchasing this product for the first time, please inform our online customer service with detailed requirements.
3. SDK development kit is needed for the docking of this product with other systems. Please inform online customer service of the development kit language and application platform you need, and we will give you the appropriate SDK source code.
4, no programming ability of individual buyers carefully placed orders.
5. Lotus intelligent technology co., LTD Telephone:023-68798110 TEL：18166486520
