automatic bottle water and air washing machine

Model:YW-02
Brand:YETO
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:bottles washing , glass bottle washing , washing bottle
Price: US $4500 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Guangzhou Yeto Machinery Co.,ltd

Free MemberGuang Dong - China
Last Online:03 May, 2017

Product Description

product description:
The use of positive and horizontal bottles, intermittent positioning flushing, to ensure that the high pressure water column accurately sprayed into the bottle, equipped with two water separator, circulating water tank, water pump, a tap water rinse, a pure water rinse; variable frequency speed, water control effect The


The main parameters:
Wash the number of bottles: 48 head
Work efficiency: 2000-3000 bottles / hour
Motor power: 1.25KW / 220V / frequency control
Applicable bottle height: 50-150mm
Applicable bottle diameter: 25-80mm
Water consumption: 1.5m ³ / h
Wash bottle pressure: 0.2-0.4MPa
Machine weight: kg
Dimensions: 2700 × 670 × 1180mm (length × width × height)
Plane three-dimensional map:

configuration list:
Name Origin Number Remarks
Motor Taiwan 1 220V / 750W
Pump motor Taiwan 2 220V / 250W
Intermittent Splitter Taiwan
Water pump 2
Activity wheel 4 3 inch
Filter Far from 1 GFR200-08-F1
Air pressure switch 1 MS-22MF
Potentiometer Delixi 1 B103
Contactor Delixi 3 CJ * 2-0910
Circuit Breaker Delixi DZ47-63-2P 16A
Inverter up to 1 0.75KW
Random accessories:
Quantity Unit Remarks
Hexagon wrench 1 set
Operating instructions 1 copy
1 certificate
Clamp ring 6


Price Terms:FOB
Payment Terms:30% DEPOSIT 70% BLANCE
Packing:wooden case packing
Lead Time:20 working days

Product Image

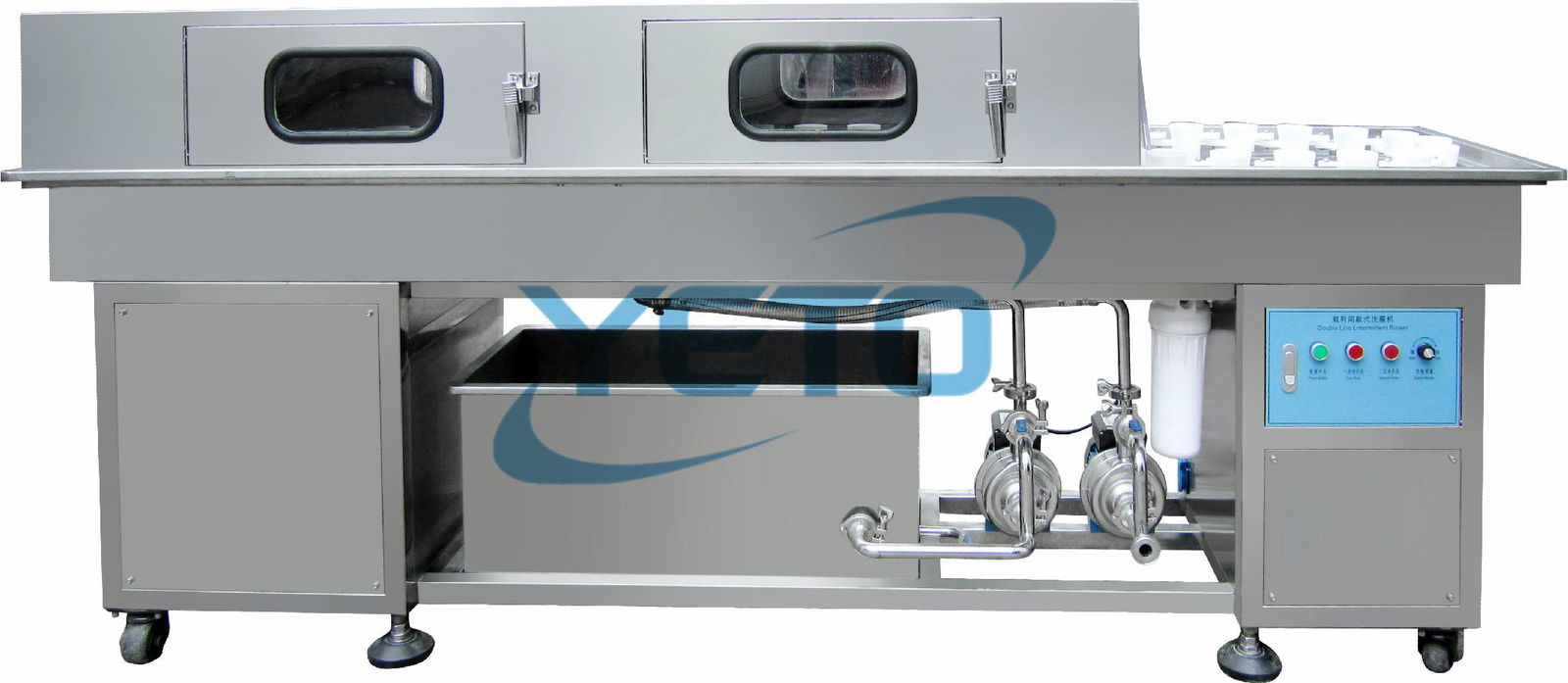

automatic bottle water and air washing machine 1
Img 1

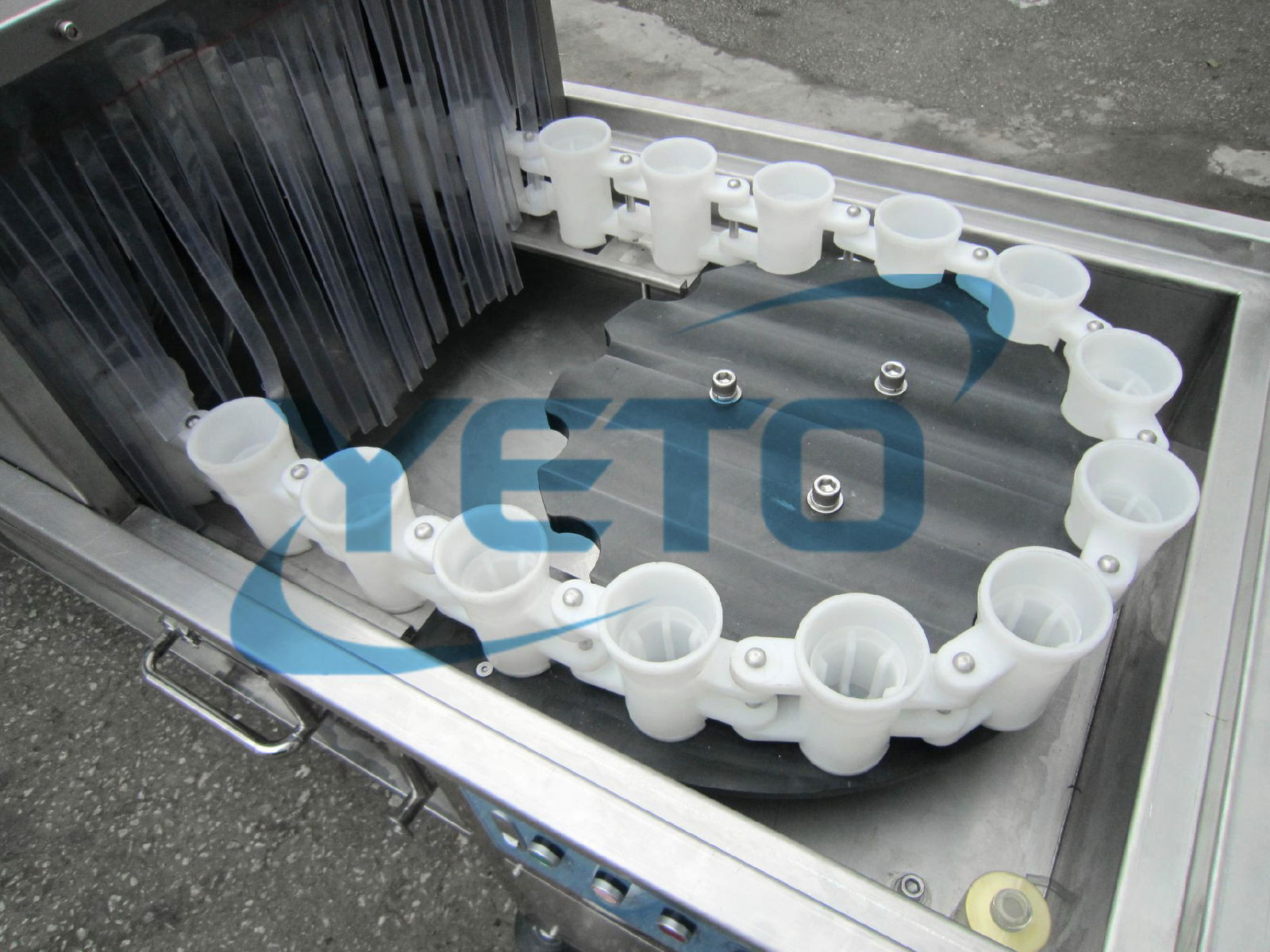

automatic bottle water and air washing machine 2
Img 2

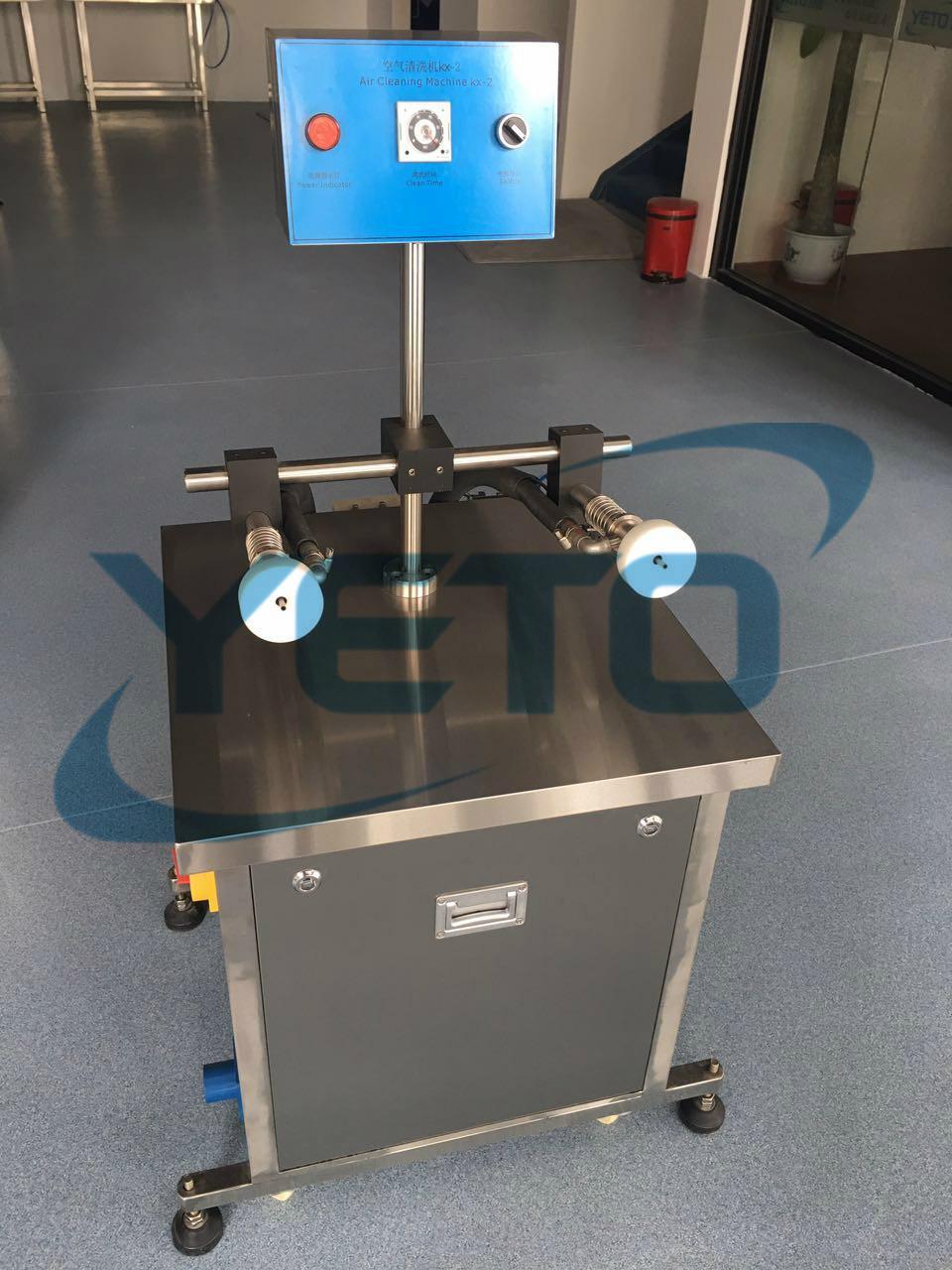

automatic bottle water and air washing machine 3
Img 3
automatic bottle water and air washing machine 4
Img 4
automatic bottle water and air washing machine 5
Img 5
