| Model: | 铜箔软连接 |
|---|---|
| Brand: | RHI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | copper jumper , copper shunt , electrical shunt |
| Price: |
-
|
| Min. Order: | 2 pc |
| Last Online:24 Oct, 2022 |

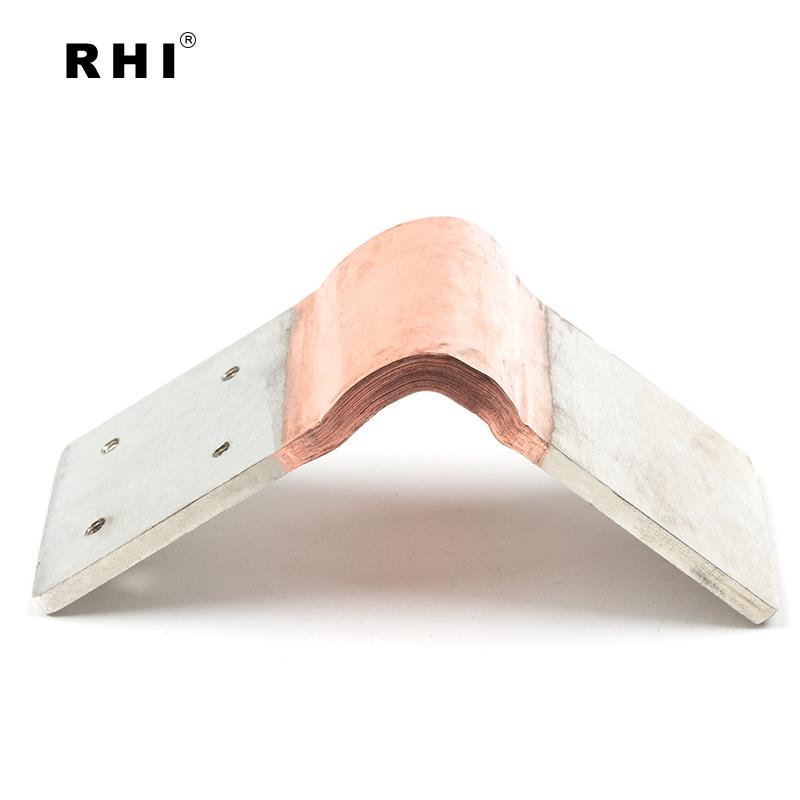

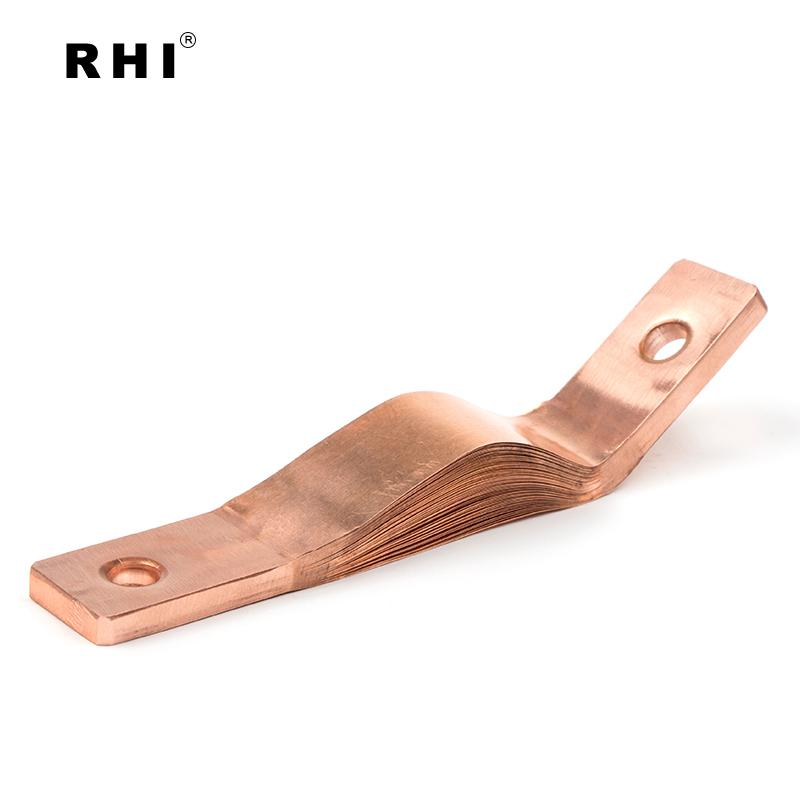

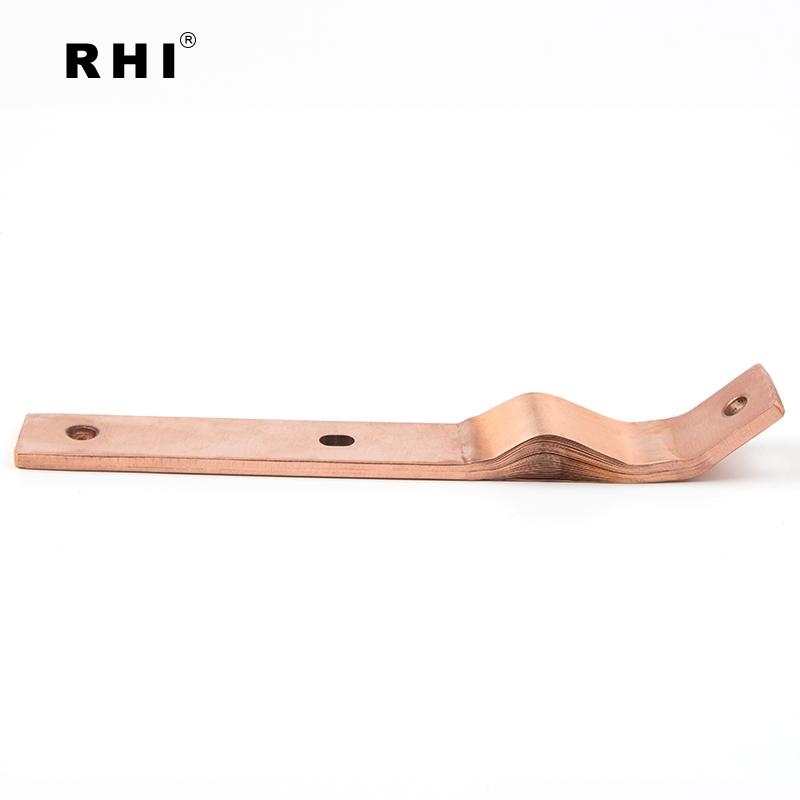

RHI designs and fabricates copper laminated flexible shunts ( also named copper jumpers, battery busbar shunts, power shunts, shunt on bus bar). Welcome to send us size or drawing.
Various types can be made including type F (straight), type C(180),and type J etc.
Material: T2 Copper a minimumum copper content of 99.9%
Size: can be customized.
Laminated and Flexible Copper are developed from high conductivity based electrolytic grade copper sheets/foils.
Flexible busbar advantage:
Press bonded laminations improve electrical conductivity.
The feature of flexible enable us to be made busbars in various types.
Laminated copper shunts are flexible and easy to install.
Flexible laminate busbar is not easy to be broken after thousands times of bending.
Graduated laminates increase power efficiency
Press welded shunts:
Different types and sizes can be made. Pls send us your size or drawing.
Specifications:
| Copper Foil Thickness: |
0.1mm 0.2mm 0.5mm Customized |
| Shunt Types: |
Type F (straight) Types C (180) Type J Type L (90) Type V (45) |
| Edge: | Full Round Edges
Rounded Corners Square Corners |
| Plating Options:: | Nickel Plating
Silver Plating Tin Plating |
| Production Capabilities: | Bending
Brazing Drilling Forming Milling Plating Punching Sawing Tapping Riveting |
| Industries Served: | Aircraft
Automotive Electrical Switch Gear |
| Engineering Capabilities: | Design Assistance
Design Verification |
| File Formats Accepted: |
JPG DWG DXF |
Hole Patterns
| Pattern A : One hole centered | Pattern B : Two holes on top of each other |
|
|
|
| Pattern C : Two holes beside each other | Pattern D : Four holes square pattern |
|
|
|
Busbar production department and warehouse.
Our Advantages:
Strong Manufacturer: We have 6000 m² standard workshop to assure the stability of product.
Strong After-sale Service: Our after-service team has 20 people. With professional busbar knowledge and more than 5 years export experience, our team help to solve any problem during cooperation.
Timely Delivery: As to the standard copper bar, we promise normal order will be delivered within 7 days. For specific lead time you request and non-standard copper bar delivery time, we can discuss.
Quality Guarantee: Material is tested before production to guarantee it is T2 copper. All goods are inspected before delivery. Test like temperature rise and bending can be made as customer’s request.
Competitive Price: We are factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.
Company Show:
Contact us now.
Email: s2@cnrhi.com
| Payment Terms: | L/C,T/T,Western Union |
|---|---|
