• Estimated Lead Time: 1-4 Weeks

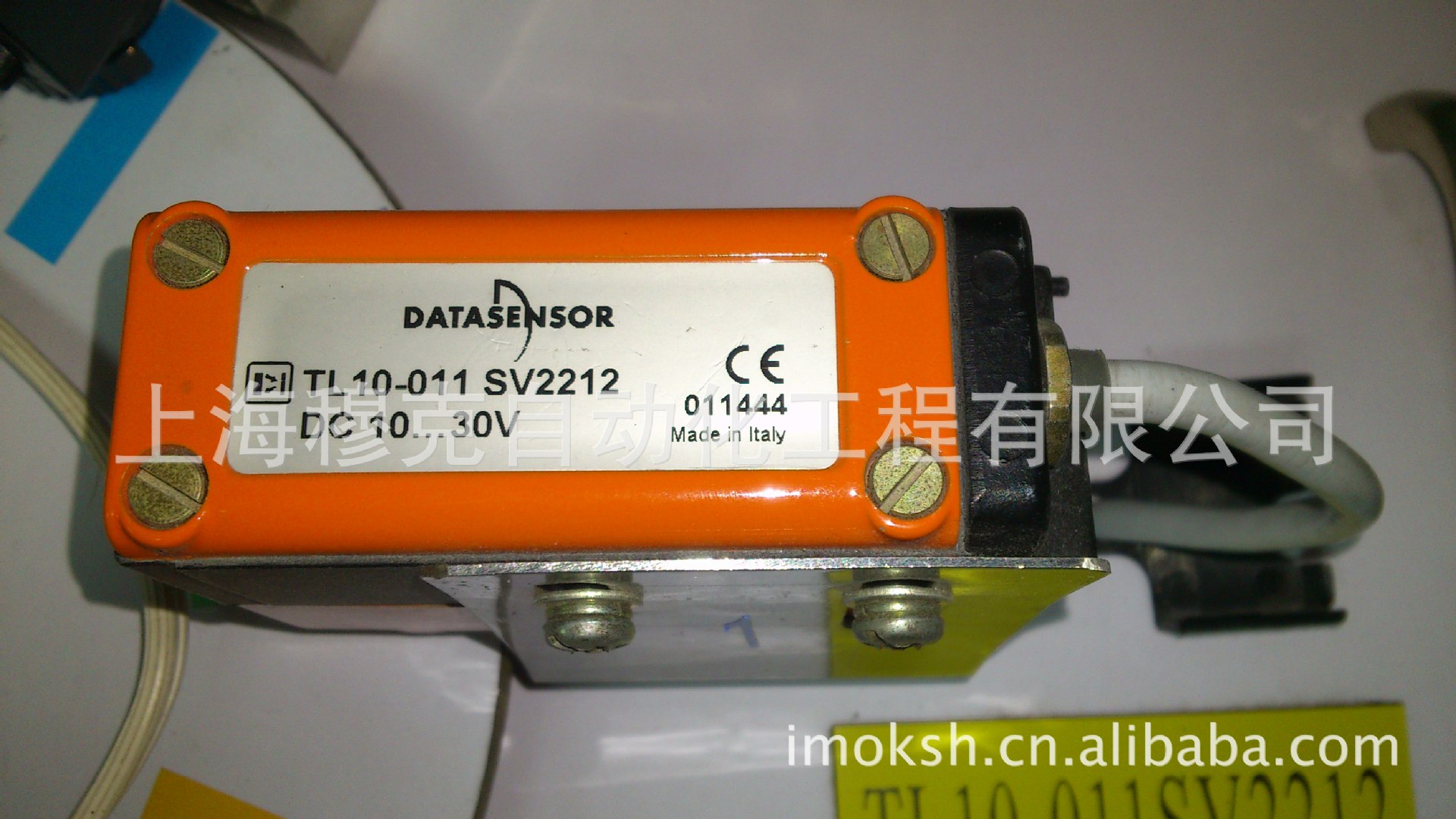

• MODEL : TL10-011

• OPTICS : 8 mm

• SPOT : vertical

• CONNECTION : cable

• OUTPUT : NPN

• CODE N°: S917660100

• Power supply : 10 ... 30 Vdc, reverse polarity protection, 4.5 Vac for lamp emission

• Consumption : 50 mA max.

• Light emission : 4.5 V (0,8 A) incandescent lamp

• Spot dimension : 5 x 1 mm (8 mm lens), 6 x 2.5 mm (28 mm lens), 8 x 2.5 mm (50 mm lens)

• Operating distance : 8 ... 12 mm (8 mm lens), 28 ... 36 mm (28 mm lens), 46 ... 54 mm (50 mm lens)

• Depth of field: ±2 mm (8 mm lens), ±4 mm (28 and 50 mm lenses)

• Setting : mechanical multi-turn actuator

• Indicators : red OUTPUT LED

• Output type : NPN

• Saturation voltage : 1.4 V max.

• Output current : 100 mA max., short-circuit protection

• Response time : 50 µs max.

• Switching frequency : 10 KHz max.

• Operating mode : dark/light selectable

• Connection : 3 m Ø 5.5 mm cable

• cable with Amphenol connector

• Electrical protection : class 1

• Mechanical protection : IP67

• Housing material : ZAMA

• Lens material : glass

• Weight : 600 g max.

• Operating temperature : -10 ... +55°C

• Storage temperature: -20 ... +70°C

• Fibre operating temperature: -30 ... +60°C

• Reference standard: EN 60947-5-2

• Shipping Weight : 2 Kg
