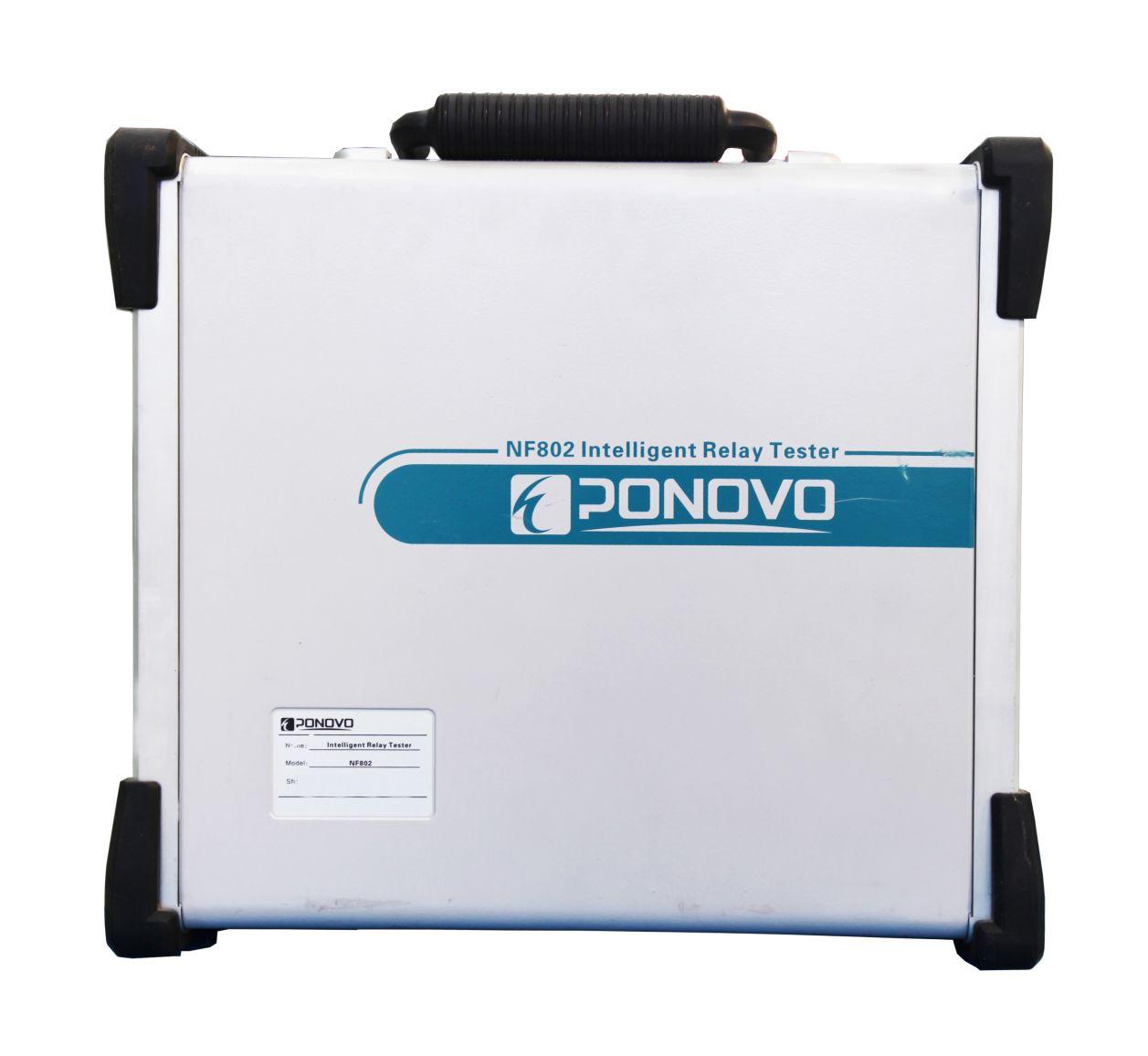

Ponovo NF802 IEC61850 Protection Digital Relay Test Kit

The new generation of optical digital relay tester. 8 optical port design,and powerful data processing capability can realize full functional test of the optical digital protection devices. It  also    can  simulate
closed-loop  test  on  MU.  Equipped  with  GPS,IRIG  -  B  code synchronization

interface and supports the lEEE1588 to provide the conditions to substation internal deb ing and substation to substation combine deb ing.

Software has years of testing experience.It based on powerful test functions and the template  function.  It  integrated  the  unique  functional  testing  of optical  digital  protection include: the abnormal SV simulation, virtual terminal test, the optical power testing and so on.Eficient, fast to complete the intelligent station test.

Features:

*8  Fiber  Optical  Ports  for:
· Receiving and sending IEC61850-9-2 and Goose message
· Recelving and sendinglIEEE1588 message
· Measuring received fiber optical power
*Provide flexibility to configure both SV (IEC61850-9-2) and GOOSE ports independently.
*Strong  data  receiving  and  sending  capability  for  each  fiber  optical  port:
· Can send 6 groups of SV at the same time
· Can send 15 groups of GOOSE at the sametime
· Can receive 13 groups of GOOSE message
· Can send/receive IEEE1588 message

*While  sending  SV,  the  dispersion  of  the  MUis  better  than±80ns

  ·Can   receive   Sv,realizing   self-loop   test
  · Fiber-optic ports can be used to measure received optical power

*8 Independent    IEC61869-9(FT3)format    SVoutput    port

*Can  simulate  collector  and  output  IEC61869-9  format  message  to  MU

*12 configurable independent low-level analog signal output terminals,can be used to test the
   low-level signal input device

*Can publish/subscribe many different GOOSE control block message

 *Analyze model  file(SCD,ICD,CID,NPI)automatically
· Can configure SV, sample channel message,GOOSE message automatically
· Can check the GOOSE communication link

*SV,GOOSE configure message can be saved and recallrepeatedly

Simulate  the  abnormal  massage  (jitter,  frame  loss,  flying  spot,  wrong  sequence,  data
anomalies,packet retransmission, channel invalid,out of step, etc.)

*WithlEEE1588 synchronization function and the deviation of the time is less than 80ns

*IRIG-B synchronization port and built in GPS synchronization mechanism



The NF802 can analyze the model files (SCD, ICD, CID, NPI) automatically, for example, configuring SV, sample channel message, GOOSE message automatically, and checking the GOOSE communication link. It can also simulate the abnormal SMV (shake, dropped frames, abnormal data and serial number deviation, etc.). The SMV, GOOSE configuration information can be saved for repeated use. It supports all kinds of digital relay testing, such as, Distance, Differential, Line differential, Auto-reclosing, Directional, Synchronization, Time inversed current/voltage, Frequency relay, Overcurrent/voltage, under voltage, Harmonics, CB Operate, Transplay for comtrade files, etc.

Main Specifications

The main power
Rated voltage 220V (AC)
Allowable range 100V240V (AC)
Rated frequency 50Hz
Allowable frequency 4060Hz
Current 1A(max)
Ethernet communication port: for communication with the PC
Type 10/100Base-TX (10/100Mbit, twisted-pair, automatic cross)
Front panel fiber-optic communication interface: for IEC61850-9-1/2, GOOSE communication
Number of port 8
Interface type LC
Front panel FT3 interface: for IEC60044-7/8 of FT3 communication
Standard IEC60044-7/8
Number of port 8
Interface type ST
Low –level Signal Analog Output
Signal amplitude
Output channel 12
Set range AC07.07Vrms DC010V
Accuracy

0.07~7.07Vrms : < 0.2%

0.02~0.07Vrms : < 1%

Frequency
Sinusoidal signal 101000Hz
Transient signal DC10.0kHz
Accuracy 0.002%under frequencyerror 1mHz
Resolution 0.001HZ
Phase
Range of phase angle 0 to 359. 9°
Accuracy <0.1°50/60Hz
Resolution ±0.01°
8 pairs of binary input(A-H)
Input characteristic 30V250V (DC)or empty contact (automatic identification)
Sample frequency 10kHz
Time resolution 100us
4 pairs of binary output(1-4)
Type Empty contacts, regardless of polarity
AC capacity Vmax :250V(AC)/Imax :0.5A
DC capacity Vmax :250V(DC)/Imax :0.5A
4 pairs of binary output(5-8)
Type Fast contact output, the speed of response is 100us
AC capacity Vmax :220V(AC)/Imax :0.5A
DC capacity Vmax :220V(AC)/Imax :0.5A



For more details you can check https://www.ponovo.net/iec61850-digital-substation-testing/digital-relay-test-set/nf802-iec-61850-intelligent-protection-relay.html
