| Model: | R306 |
|---|---|
| Brand: | GROW |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | fingerprint sensor , fingerprint module , fingerprint scanner |
| Price: |
US $38
/ pc
|
| Min. Order: | 1 pc |
| Last Online:02 Nov, 2021 |

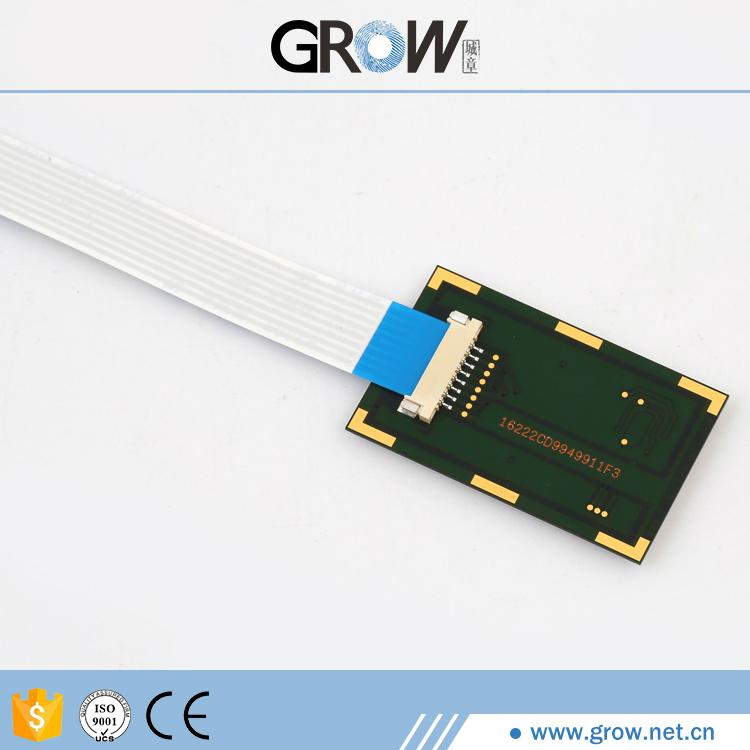

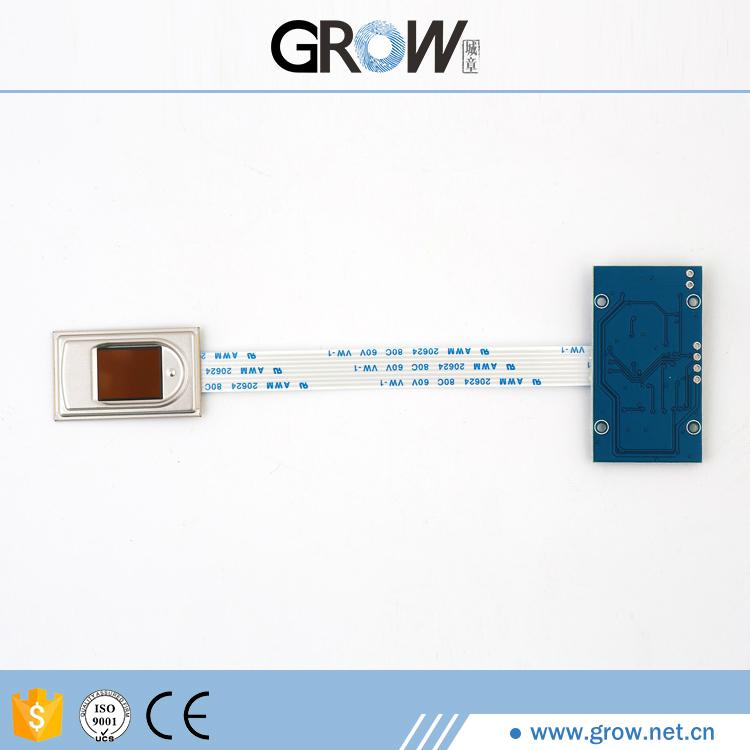

Fingerprint reader R306(Capacitive )
Main Functions:
Communication interface :USB and UART
1:N Identification (One-to-Many)
1:1 Verification (One-to-One)
High speed fingerprint identification algorithm engine
Self study function
Fingerprint feature data read/write functions
Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature withCaptured fingerprintIdentify Downloaded Feature with Captured fingerprint
Security Level setting
Able to set BaudRate/ Device ID/Device Password
Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android
| Fingerprint sensor | FPC1011F3 |
| Interface | USB 2.0 and RS232 (TTL) |
| Communications baud rate (UART) |
(9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps) |
| Dimension | 45*32mm |
| Fingerprint reader module size | 20 * 32 (mm) |
| Effective collection area | 12 * 15 (mm) |
| ScanningSpeed | < 0.2 second |
| Verification Speed | < 0.3 second |
| Matching Method | 1:1; 1:N |
| Resolution | 363 DPI |
| Voltage | DC 4.2-6.0V |
| FRR (False Rejection Ratio) | ≤0.01% |
| FAR (False Acceptance Ratio) | ≤0.00001% |
| Fingerprint capacity | 1000 |
| Antistatic capacity | 15KV |
| Abrasive resistance intensity | 1 million times |
| Peak power consumption | 60 mA |
| Work environment | -20°C ---55°C |
| Work Humidity |
10-90%
|

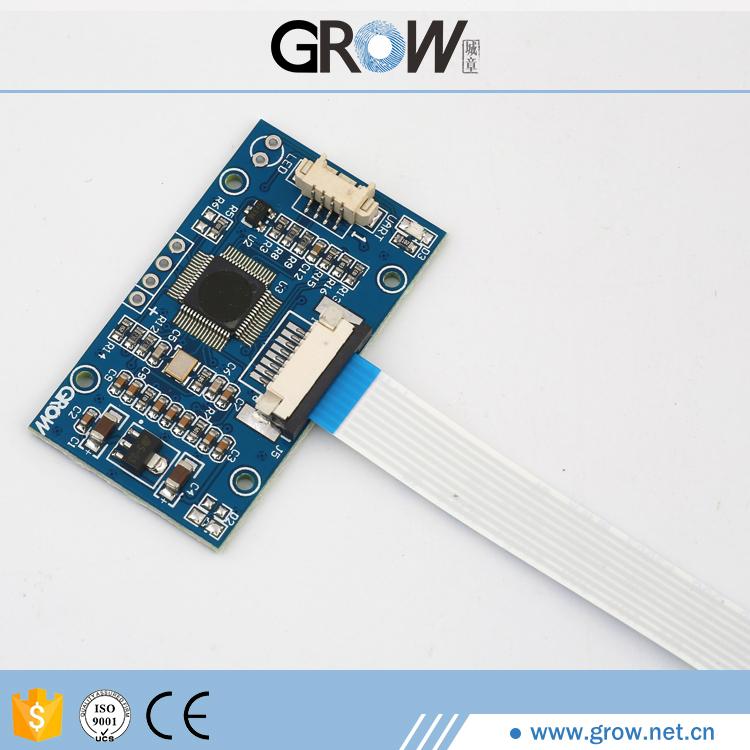

R306 fingerprint module circuit board diagram
R306 fingerprint sensor size chart
| Price Terms: | FOB Hangzhou |
|---|---|
| Payment Terms: | TT/ Paypal |
| Packing: | Carton |
| Lead Time: | 7days after payment done |
| SKU: | 10000 |
