Model: | WX560 |
---|---|
Brand: | WX560 |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Other Electronic Instrument |
Label: | - |
Price: |
-
|
Min. Order: | 1 pc |
Last Online:25 Dec, 2024 |
WX560 HD image dual display system consists of two HDMI interface 1080P 2 million pixel high-definition camera, a 1080P split-screen processor, each image can be up and down, left and right split screen, you can mirror, the image can be with a positioning cross The
Output for the standard computer VGA interface, can be directly connected to the computer with VGA monitor. Resolution of 1920X1080, each line moving position for a pixel. 2 images with the screen display, easy to compare images and save the installation space.

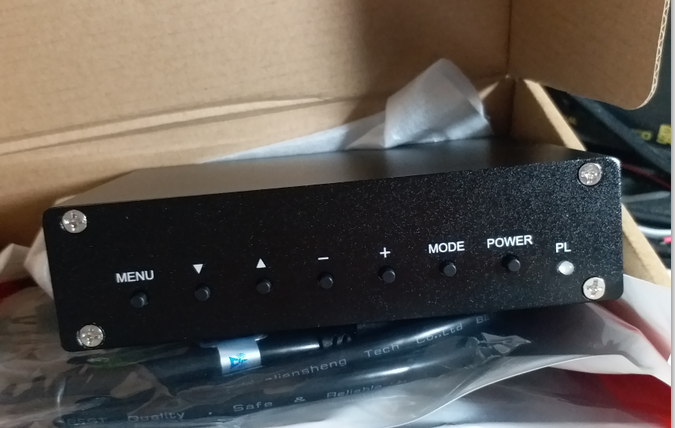

The machine has a very high stability and reliability, color crosshair display position without any drift. The product of each image signal can display up to four groups of cross lines at the same time, through the button can easily adjust the precise location of each line, and automatically store the current set position, boot automatically after the adjustment position. Unique key lock function, to prevent the user misuse.
Through the menu settings can adjust the image brightness, color, contrast, sharpness, etc., using Gamma correction, dynamic 3D digital noise reduction, to interlaced, digital image video enhancement, frame rate upgrade and other professional skills to improve video quality.
Each image of the cross line can be from the menu from the single line to 4 cross-line arbitrary set, and can be horizontal and vertical lines with the number of options, evolved up to dozens of positioning lines with different users to meet need.
■ Application example:
■ A variety of display modes for a variety of positioning applications
■ Application areas:
Widely used in screen printing presses, laminating machines, drilling machines, cutting machines and other equipment.
■ The main parameters:
The main parameters
200 million high-definition camera, resolution, 1920X1080
Video output VGA 15-pin D-type
Output resolution display resolution, 1920X1080
Line fine line: 1 pixel
Cross line color white, yellow, blue, green, purple, red, blue, black, 8 kinds of optional
The number of cross-line full-screen maximum of 8 groups of cross-line / two-segment image of each road the largest
2 sets of double cross lines (4 groups of cross lines)
Cross line mode display mode 32 kinds
The cross line moves anywhere and is automatically stored.
Power supply DC 12V / 2A
Chassis reference size 190mm (width) × 190mm (vertical) × 70mm (high)
